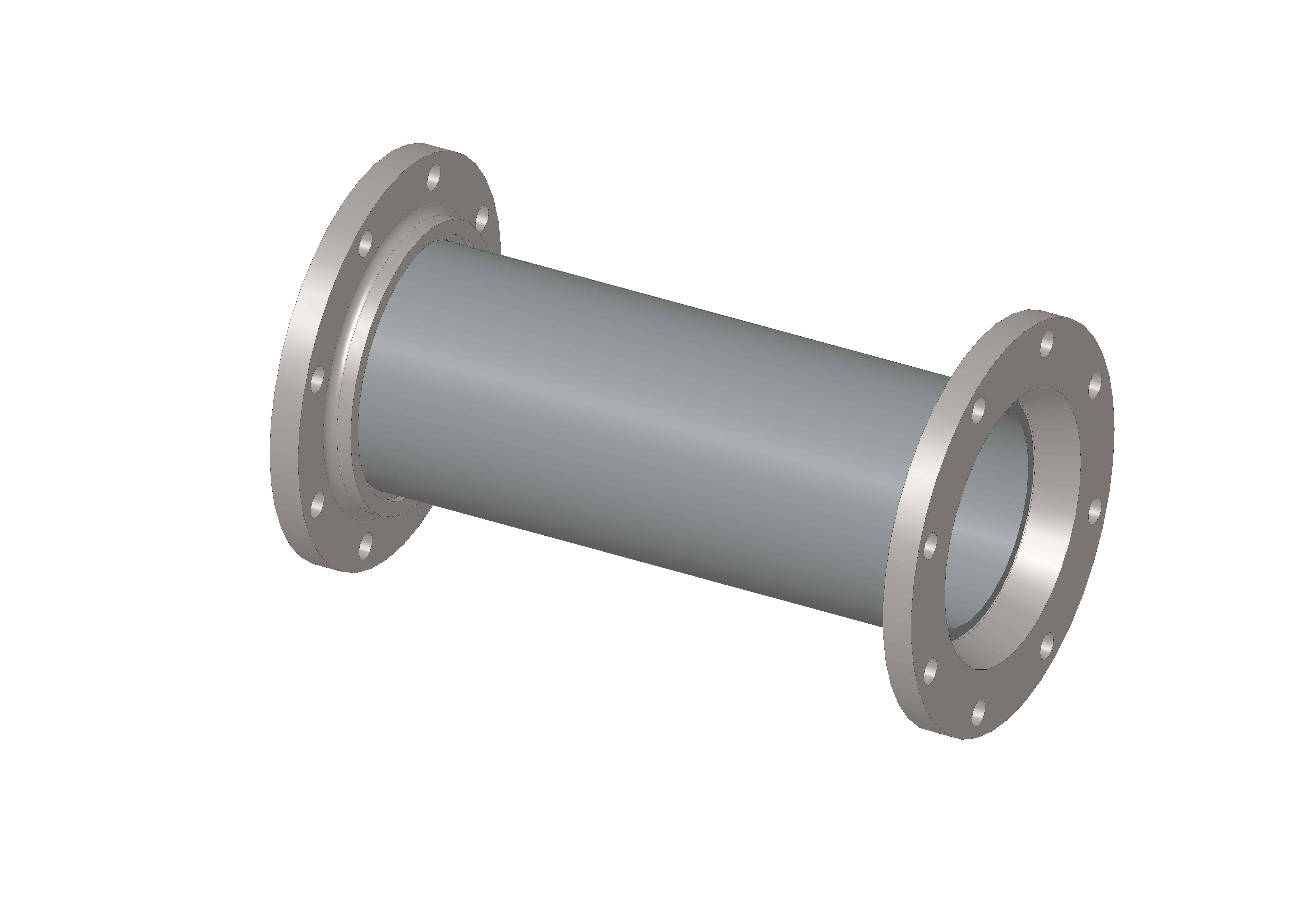

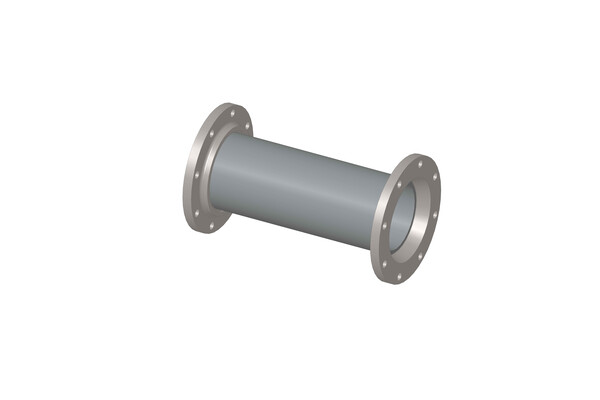

Flanged Spools



Liquip offers a range of flanged spools which are used on loading arms between swivel joints, riser pipes, drop hoses and couplers.

Liquip spools can be manufactured out of aluminium or steel and can incorporate any flanges, including TTMA or ANSI flanges to suit any loading arm application.


Features & Benefits
  • Spools are custom made out of steel or aluminium pipe.
  • Range of fittings available including TTMA and ANSI 150# flange.
  • Spools can be made to any length to suit loading arm applications.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information
    Item Description Length Flange to Flange (mm) Material Flange Size Flange Type Common Uses
    LIQL219A-1280 SPOOL AL LOADARM HORIZONTAL 4" 1280mm 1280 Aluminium 4" TTMA Horziontal Spool
    LIQL219A-1480 SPOOL AL LOADARM HORIZONTAL 4" 1480mm 1480 Aluminium 4" TTMA Horziontal Spool
    LIQL219A-680 SPOOL AL LOADARM HORIZONTAL 4" 680mm 680 Aluminium 4" TTMA Horziontal Spool
    LIQL219A-880 SPOOL AL LOADARM HORIZONTAL 4" 880mm 880 Aluminium 4" TTMA Horziontal Spool
    LIQL219P-1130 SPOOL M/S LOADARM HORIZONTAL 4" 1130mm (PRIMED) 1130 Mild Steel 4" TTMA Horziontal Spool
    LIQL220A-1350 SPOOL AL LOADARM DROP 4"1350MM 1350 Aluminium TTMA TTMA Drop Spool
    LIQL220A-1800 SPOOL AL LOADARM DROP 4"1800MM 1800 Aluminium TTMA TTMA Drop Spool
    LIQL220A-2250 SPOOL AL LOADARM DROP 2250MM 2250 Aluminium TTMA TTMA Drop Spool
    LIQL220A-450 SPOOL AL LOADARM DROP 4" 450MM 450 Aluminium TTMA TTMA Drop Spool



    If the above standard spool sizes do not suit your application. Contact Liquip for any loading arm requirements so that Liquip can manufacture spools to suit your applications.
