API Parking Adaptors

The PA800 Series of parking adaptors for API couplers ensures bottom loading arms are correctly stowed and secured when not in use.

Liquip parking adaptors can be used to collect drips from couplers and pipe them away to a drain system.

Parking adaptors can also be supplied to be used in conjunction with a proximity sensor (supplied separately). The proximity sensor once actuated can enable system interlocks.

  • All parking adaptors have built in stops to ensure the coupler can not be opened whilst parked.
  • Some parking adaptors can be used to collect drips and pipe them away to a drain system.
  • Parking adaptors can be supplied with a proximity switch to enable system interlocks.

Adjustment
Periodically grease sliding proximity switch (where supplied) by using grease nipple visible from face of nosecone.

Mounting
PA801 & PA811 bolt onto bracket supplied by customer.
PAA80x & PAA81x are free standing (bolt to concrete or skid floor).

Weight
PA801 - 0.9kg.
For other weights contact Liquip.

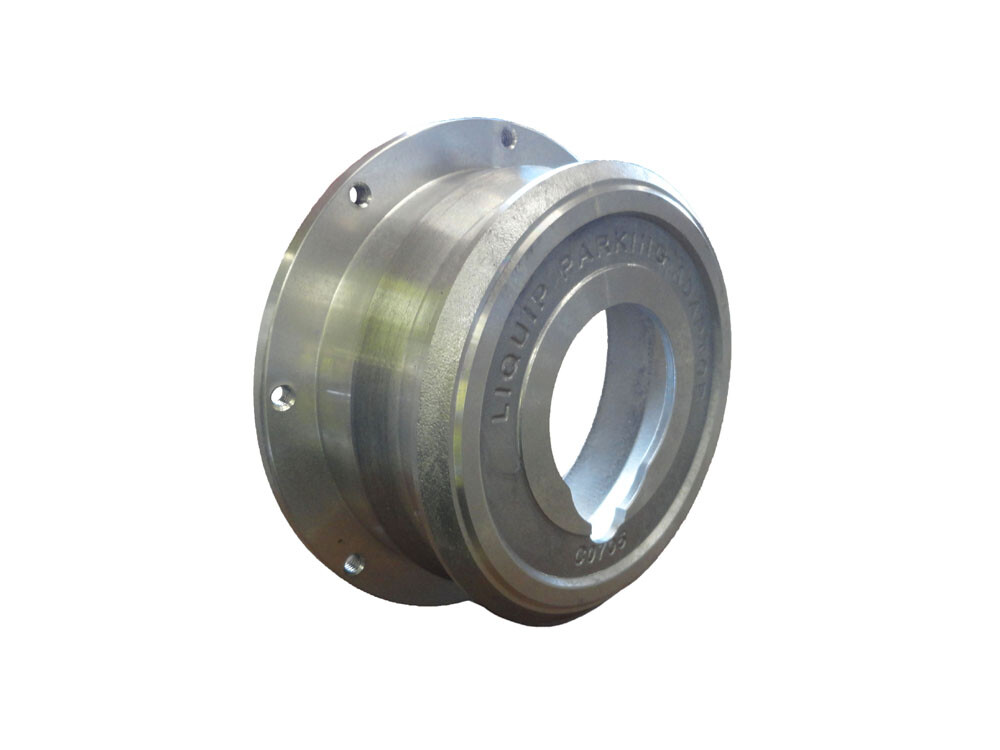

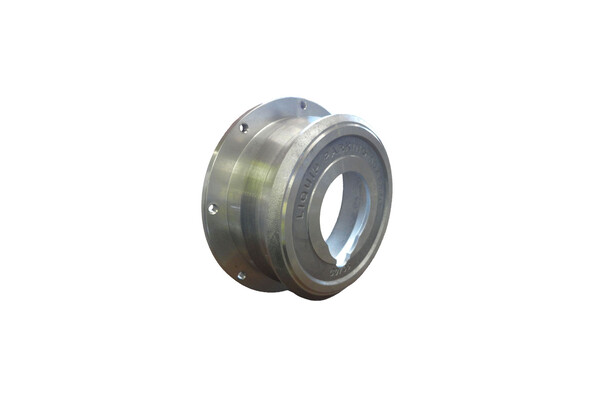

PA801: API Parking Adaptor.

PA811: API Parking Adaptor with Proximity Sensor Holder.

PAS801: API Parking Adaptor c/w Stand, Straight.

PAS811: API Parking Adaptor c/w Stand, Straight, with Proximity Sensor Holder.

PAA801: API Parking Adaptor c/w Stand, Angled.

PAA811: API Parking Adaptor c/w Stand, Angled, with Proximity Sensor Holder.

5544: Proximity Switch Sensor.
