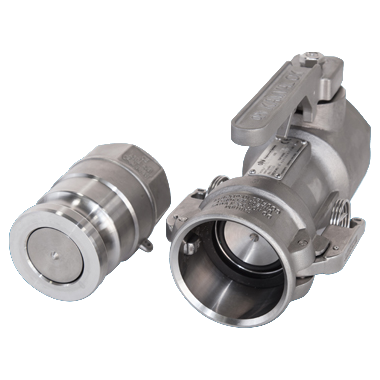

Kamvalok® Flat-Face Coupler and Adaptor



The new Kamvalok® Flat is the next generation of OPW dry-disconnect couplings. We’ve taken our proven, best-in-class Kamvalok and flattened the connection points. This effectively eliminates all cavities where liquid can pool and subsequently spill upon disconnection.

Recommended products for replacement

    Features and Benefits
    • Reduce product loss at disconnect by up to 85%
    • New patent-pending smooth, flat-face poppets
    • Industry-standard locking handle
    • Easy to close Autolok™ locking arms
    • Automatic locking arms, no pins or buttons
    • Vibration-resistant Twin-Kam™ arms
    Technical Info

    Design Parameters



    Sizes in Inches (Approximate) 1 1/2" 2" 3"
    A Length of Body 8" 8.81" 10.03"
    B Diameter of Body 3.12" 3.52" 5.50"
    C Distance across Cam Arms - closed 4.75" 5.22" 7.34"
    C1 Distance across Cam Arms - open 8.94" 9.41" 14.78"
    D Centerline of Shaft to end of Handle 6.06" 6.06" 6.06"
    E Diameter of Coupler End 3.12" 3.52" 5.50"
    F Length from Pipe End to end of Handle 7.98" 8.03" 8.56"
    G Centerline of Coupler to top of Handle 3.56" 3.75" 4.53"
    H Pipe Thread (NPT) 1.50" (DN40) 2" (DN50) 3" (DN80)



    Design Parameters

    Max Design Pressure 1-1⁄2" Size - 210 psig (15 bar)
    Temperature Range • Buna-N -20°F – 212°F (-29°C – 100°C)
      • Fluorocarbon -20°F – 400°F (-29°C – 204°C)
      • PTFE Encapsulated Silicone -15ºF – 400ºF (-26ºC – 204ºC)
      • EPDM -50°F – 250°F (-46°C – 121°C)
      • FFKM* -15°F – 400°F (-26°C – 204°C)





    Design Standard Size ASME  ASME
    Max. Design Temp ALL See Material Section See Material Section
    Min. Design Temp ALL See Material Section See Material Section
    Max Design Pressure 1-1/2" 15 Bar 210 psi
    2" 10.5 Bar 150 psi
    3" 8.5 Bar 120 psi

    Materials

    Body, Poppet, Seal Cylinder Aluminum, Stainless Steel
    Shaft Link, Cam Arms, Poppet Link Stainless Steel





    # Description Qty 1-1/2" 2" 3" RK
    1 Lever Assembly 1 H32040 H32040 H32040
    2 Shaft 1 C21119RE C21123RE C21112RE
    3 Spacer 1 H32031RE H32030RE H32032RE
    4 Groove Pin, Cam Arm 2 H20141M H20141M H20144M
    5 Autolok™ Arm Assembly 1 733ARK-SS20 733ARK-SS20 733ARK-SS30-PADDLE
    6 Body 1 C21120A (EW) C21128A (EW) C21113A (EW)
    7 O-Ring, Main Seal 1 See Seal Options See Seal Options See Seal Options +
    8 Spring 1 H06128M H04328M H10352M
    9 Gasket 1 See Seal Options See Seal Options See Seal Options +
    10 Guide, Seal Cylinder 1 H31539M H31540M H31541M +
    11 Seal Cylinder 1 H31542A (EW) H31543A (EW) H31544A (EW) +
    12 Nose Seal 1 See Seal Options See Seal Options See Seal Options +
    13 Nut, Shaft 1 H32111M H32111M H32111M
    14 Lock Washer, Shaft 1 H31920M H31920M H31920M
    15 O-Ring, Shaft 2 See Seal Options See Seal Options See Seal Options +
    16 StuffingBox 1 C20812RE C20812RE C20812RE
    17 O-Ring StuffingBox 1 See Seal Options See Seal Options See Seal Options +
    18 Shaft Link 1 9C21118EW 9C21125EW 9C21111EW
    19 Clevis Pin 2 H31692M H31692M H31688M
    20 Poppet Link 1 9C21117EW 9C21124EW 9C21110EW
    21 Cotter Pin 2 H04981M H04981M H04981M +
    22 Poppet 1 C21121A (EW) C21129A (EW) C21115A (EW)
    23* Guidebearing 1 N/A N/A N/A +
    Note: (EW) Replaces A for SST Fittings *Note: Not Shown + Items included in repair kits



    Seal Options

    SEALS
    1 ½"

    O-Ring, Main Seal

    Gasket

    Nose Seal

    O-Ring, Shaft

    O-Ring, Stuffingbox

    Buna-N

    H03051M

    H20544M

    H31527M

    H20129M

    H31705M

    Fluorocarbon

    H03070M

    H00973M

    H31530M

    H20175M

    H31706M

    Teflon®

    H20184M

    H07904M

    H31536M

    H33153M

    H33154M

    EPT

    H03596M

    H20536M

    H31533M

    H20176M

    H31707M

    FFKM

    H33190M

    H33251M

    H31536M

    H33153M

    H33154M













    2"

    O-Ring, Main Seal

    Gasket

    Nose Seal

    O-Ring, Shaft

    O-Ring, Stuffingbox

    Buna-N

    H06223M

    H20545M

    H31528M

    H20129M

    H31705M

    Fluorocarbon

    H31865M

    H00974M

    H31531M

    H20175M

    H31706M

    Teflon®

    H20185M

    H07905M

    H31537M

    H33153M

    H33154M

    EPT

    H06142M

    H20537M

    H31534M

    H20176M

    H31707M

    FFKM

    H33191M

    H33252M

    H31537M

    H33153M

    H33154M













    3"

    O-Ring, Main Seal

    Gasket

    Nose Seal

    O-Ring, Shaft

    O-Ring, Stuffingbox

    Buna-N

    H05152M

    H32180M

    H31529M

    H20129M

    H31705M

    Fluorocarbon

    H31841M

    H32181M

    H31532M

    H20175M

    H31706M

    Teflon®

    H20186M

    H31562M

    H31538M

    H33153M

    H33154M

    EPT

    H10209M

    H20266M

    H31535M

    H20176M

    H31707M

    FFKM

    H33197M

    H33253M

    H31538M

    H33153M

    H33154M



    Temperature/Pressure Chart

    Flow Chart

    Operation

    OPW Engineered Systems Kamvalok® Dry Disconnects are easy to operate. Connections and disconnects are accomplished by simply closing and opening two cam arms which lock into the machined groove around the circumference of the mating adaptor. The adaptor contains a spring- loaded poppet assembly that is actuated by the handle-action on the coupler.

    Drippage Data



    Coupler Poppet Style Adaptor Poppet Style Orientation of Connection 1-1/2” 2” Avg. Drippage (ml) 3” Avg. Drippage (ml)
    FLAT FLAT Vertical 0.96 0.8 0.8
    FLAT FLAT Horizontal 2.4 3.5 1.3
    FLAT Std. Face Horizontal 5.4 5.8 1.7
    FLAT Std. Face Vertical 3.4 4 13.5
    Std. Face Std. Face Vertical 1.3 2.6 5.5
    Std. Face Std. Face Horizontal 3 4.5 7
    Std. Face FLAT Vertical 1 2.8 2
    Std. Face FLAT Horizontal 2.4 7.2 3.8



    Ordering Information

    Coupler Order Guide

    Adapter Order Guide

    Please CONTACT LIQUIP for all ordering information.
