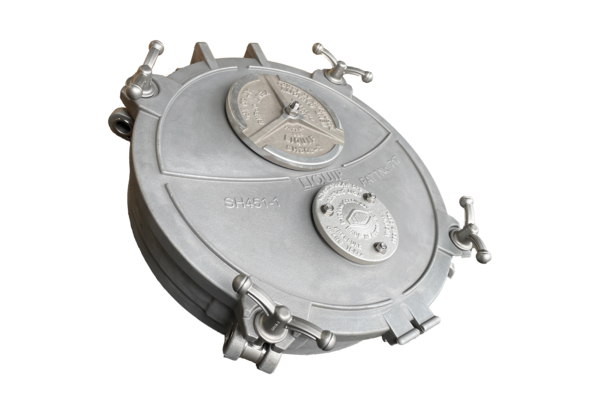

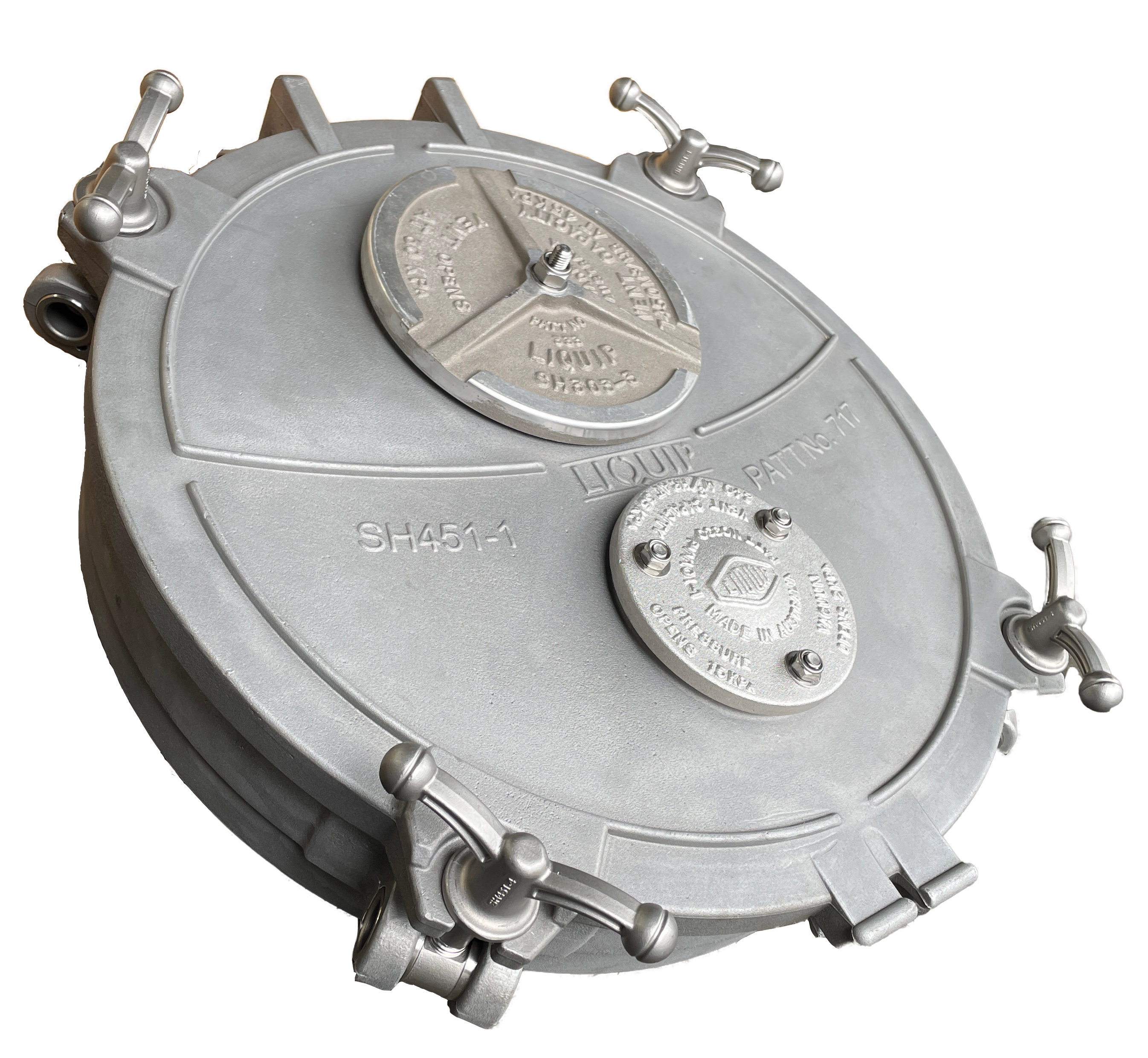

45x Series Swing Hatches (450mm)



Liquip offers a range of 450mm easy access swing style manhole covers for tankers that carry hazardous or flammable fuels/chemicals or aviation fuels and where frequent compartment entry is required for example when cleaning during load change outs.

Liquip’s SH451 Series has been developed to not only meet but go beyond the requirements of the AS2809:2020 standard.

Features & Benefits
  • Australian double drop tested and CEN drop test compliant
  • Generous 450mm opening compliant with AS2809:2020
  • 4 stainless steel Tee handles and swing bolts for increased durability
  • Tool-free installation of swing pins
  • Easy loading and quick access for cleaning and inspection
  • Includes an integral emergency vent and provision for a pressure vacuum vent
  • Available in many configurations based on a range of seal materials(Teflon, Viton or Buna) and coaming materials (aluminium, stainless steel or mild steel)

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Regulations
    Passes Australian double drop tests and complies with AS2809:2020

    Mounting
    SH451 hatch fastens to coaming via 4 x SS Tee Handles.
    If coaming extends further than 25mm into tank vapour space, a bleed hole must be added into the vapour space.

    Venting Pressure
    Emergency vent opens at 30kPa.

    Venting Capacity
    7450m³/hr at 45kPa.

    Weight
    ~18kg (Al coaming)

    Materials
    Cover (Aluminium); Coaming (Aluminium; Mild Steel or Stainless Steel)

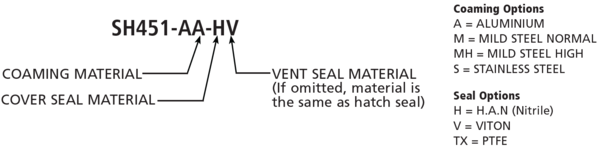

    Ordering Information

    Associated Equipment

    PVV series: Pressure Vacuum Vent (PVV104 series or PVV204 Series); VRB-2 (PVV Blank Plate)
    HWC454: Hatch Weather Cover to suit SH451

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    SH451-AMH-TX SH451 HATCH AL LID, MILD STEEL HIGH COAMING, TEFLON SEAL
    SH451-AS-V SH451 HATCH AL LID, STAINLESS STEEL COAMING, VITON SEAL
    SH451-AS-HV SH451 HATCH AL LID, STAINLESS STEEL COAMING, HAN & VITON SEAL
    SH451-AS-TX SH451 HATCH AL LID, STAINLESS STEEL COAMING, TEFLON SEAL
    SH451-AA-V SH451 HATCH AL LID & COAMING, VITON SEAL
    SH451-AA-HV SH451 HATCH AL LID & COAMING, HAN & VITON SEAL
    SH451-AA-TX SH451 HATCH AL LID & COAMING TEFLON SEAL
    SH451-AA-HVPVV SH451 HATCH AL LID & COAMING, HAN & VITON SEAL, C/W PVV104M
    SH451-AM-V SH451 HATCH AL LID, MILD STEEL COAMING, VITON SEAL
    SH451-AM-HV SH451 HATCH AL LID, MILD STEEL COAMING, HAN & VITON SEAL
    SH451-AMH-V SH451 HATCH AL LID, MILD STEEL HIGH COAMING, VITON SEAL
