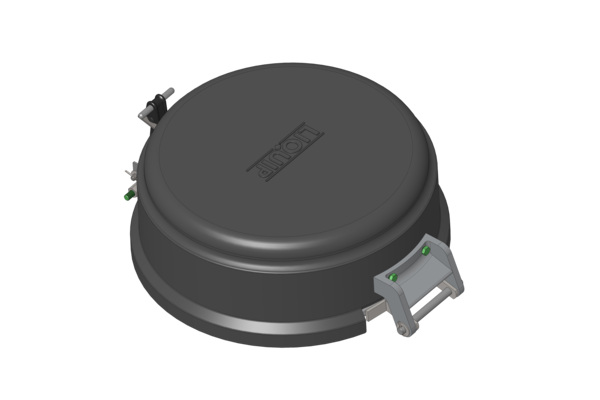

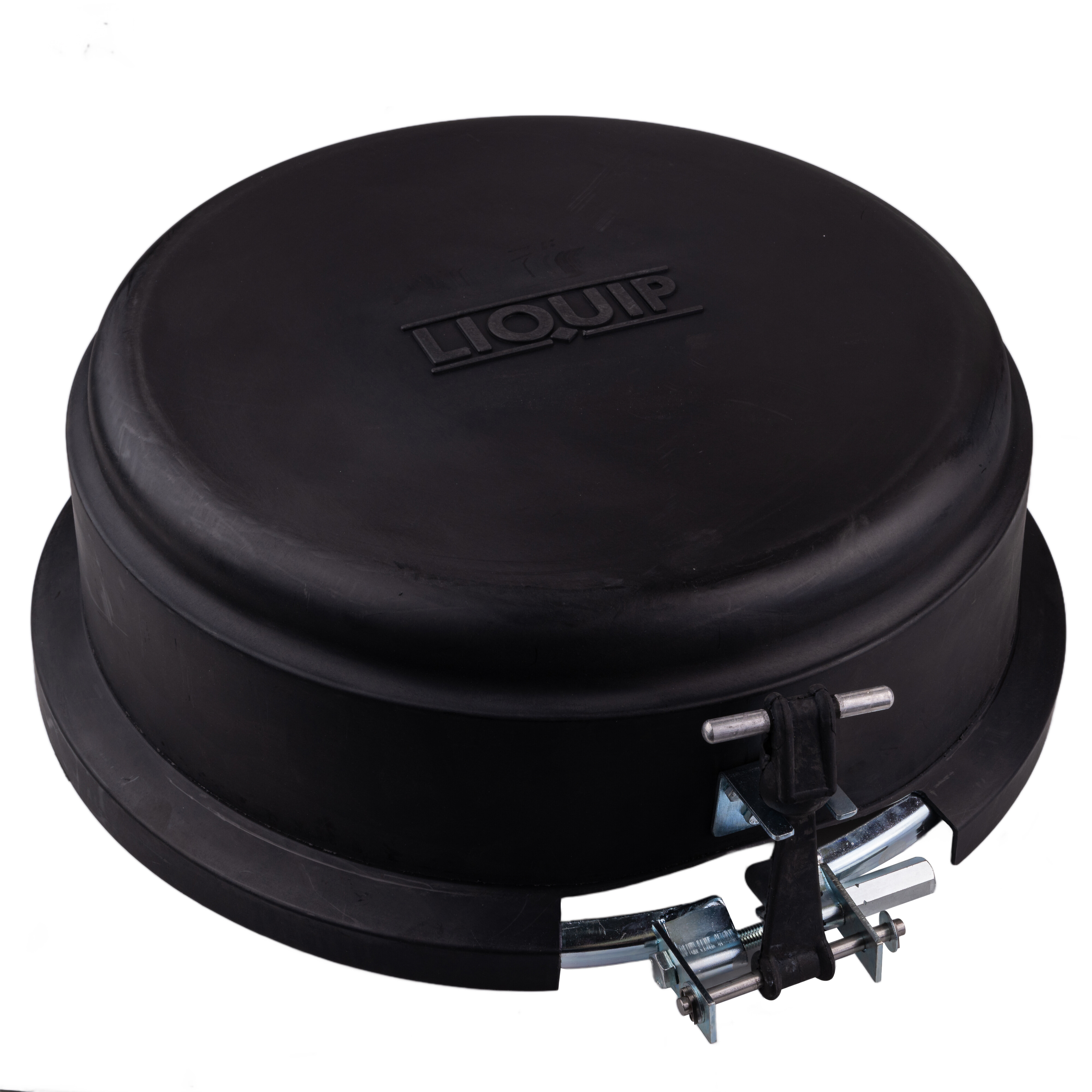

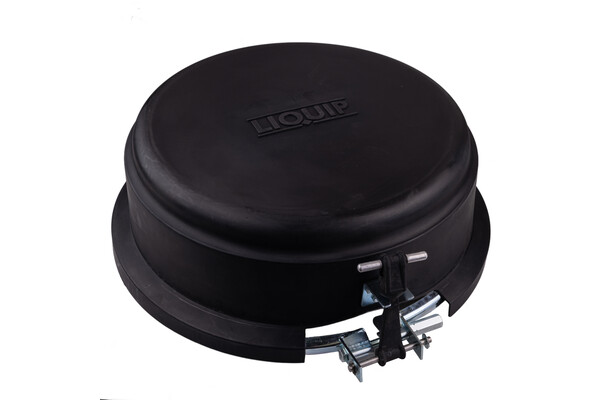

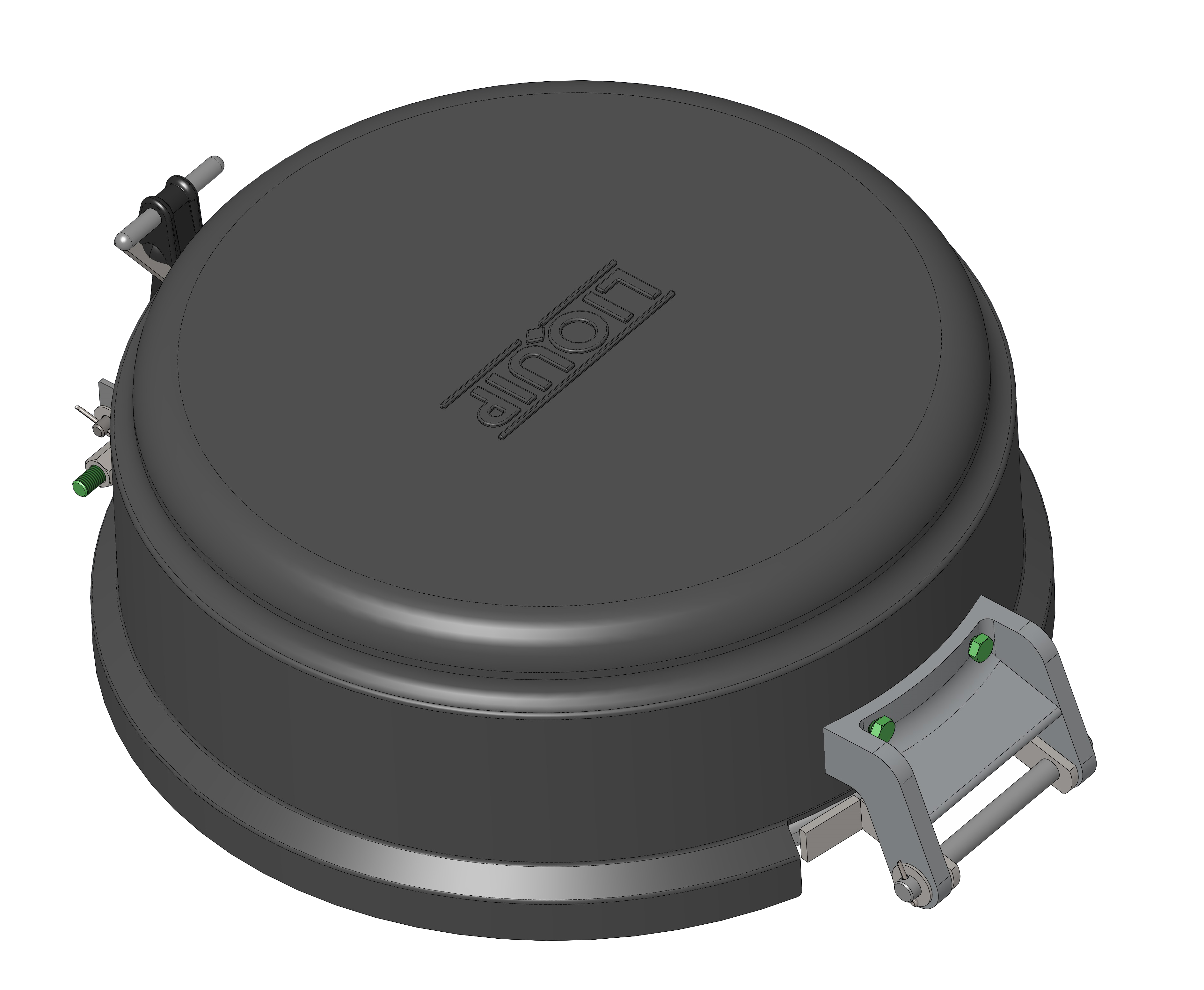

Hatch Weather Covers - HWC451 Series

Liquip's hatch weather covers mount onto the manhole and protect against the ingress of water into compartments and deter unauthorised access to the compartment hatches.

Features & Benefits

Composite Anti Static material.
Complies with AS2809.
Australian double drop tested.
Simple stainless steel split pins allow for easy removal for maintenance.
Quick release rubber clamp allows for quick opening and closing of the cover.
Cover has a cut out for the vapour vent (AVV vent) to connect to the vapour coaming.
Compatible with the VOH451 series of hatches.

ADD TO ENQUIRY CART REQUEST A QUOTE

Technical Information
Ordering Information
Resources

Technical Information

Operation

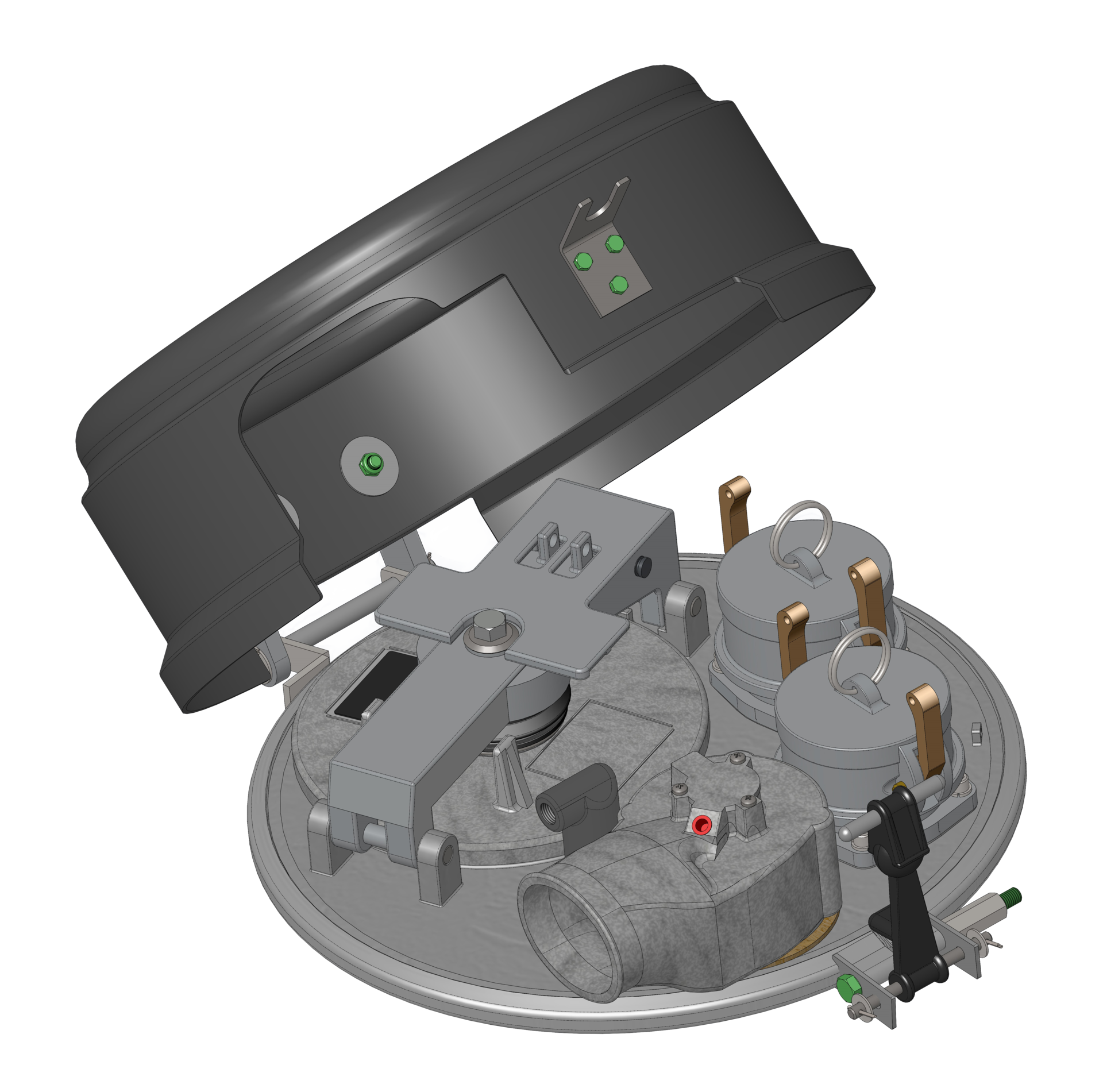

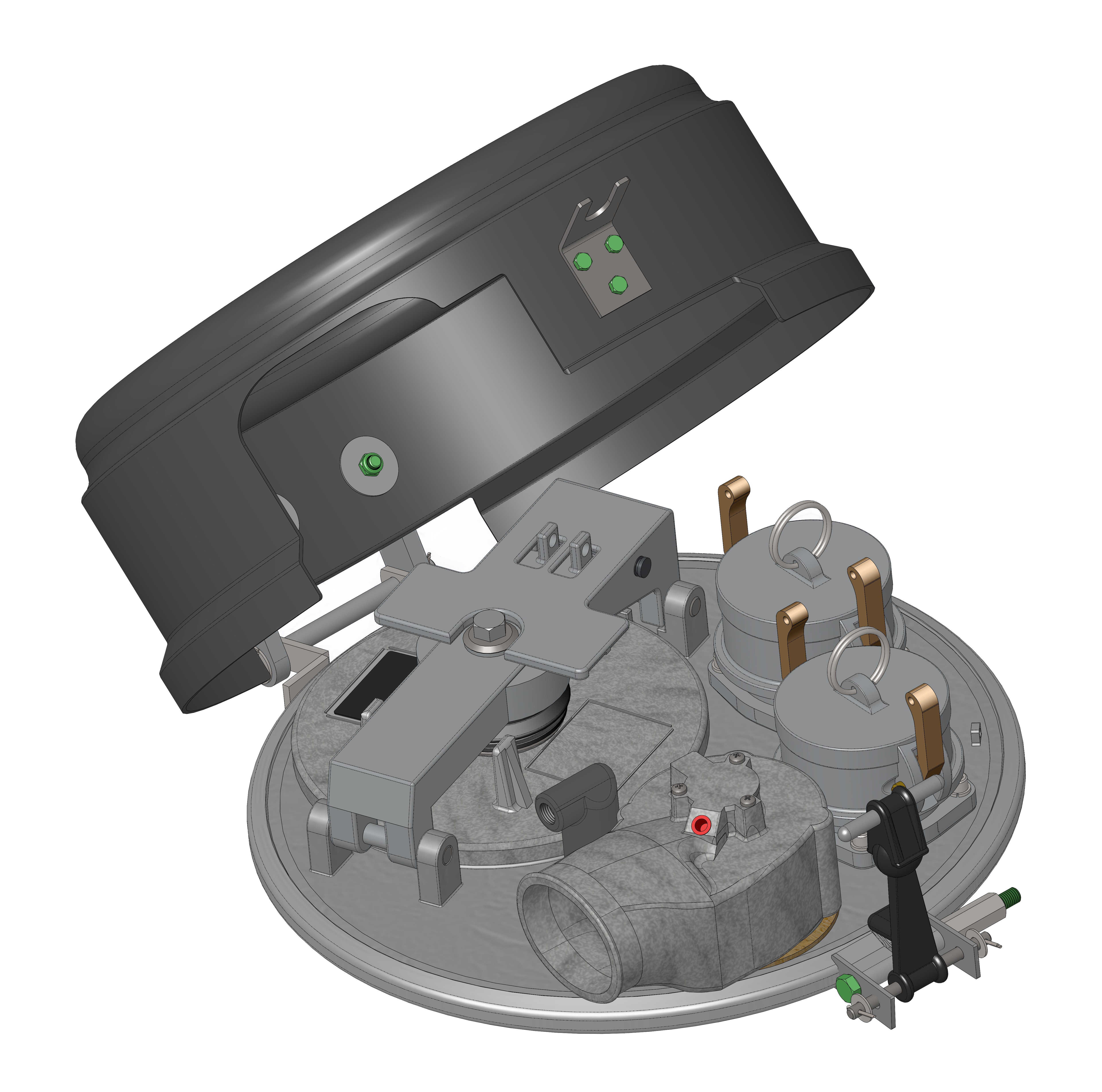

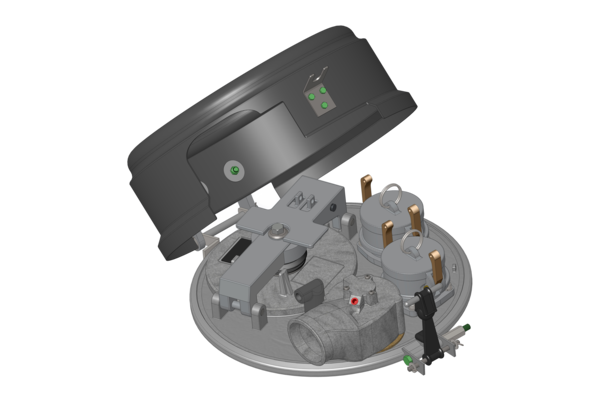

Liquip hatch weather covers are hinged on one end with an over-centre rubber clamp latch on the opposite end.

To allow full access to the hatch cover, unhook the clamp and lift the cover.

Adjustment or Service
Latching end is self-centring.

Materials
Cover - Composite Anti Static material.
Clampband & fasteners - Zinc plated mild steel.
Hinge bracket on cover - Cast aluminium.

Mounting
HWC451 has an integrated clampband which replaces the standard clampband to secure the VOH hatch.

Weight
3.8kg.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description	Add Item into Enquiry Cart
	HWC451	Hatch Weather Cover Assembly suit VOH451 without AVV cut out.
	HWC451C	Hatch Weather Cover Assembly suit VOH451 with AVV cut out. (hatch and accessories not included)
