Type DC Camlock Fittings



Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

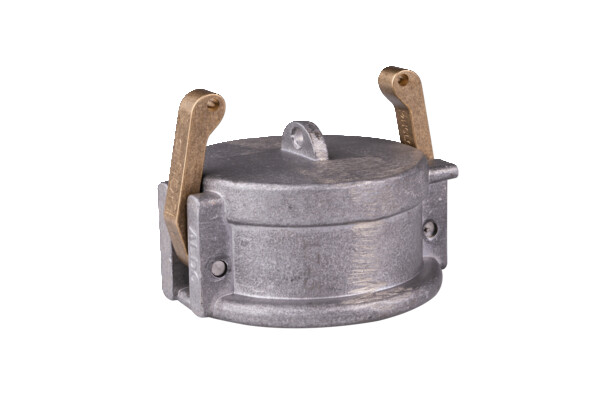

Type DC - Dust Cap Female End Coupler.

Dust Caps (DC) can be used with type A, E and F adapters to seal the end of the connection.

Technical Information

Materials
Aluminium.

Sizes Range
¾ " to 3".

Ordering Information
Item Description Size Seal

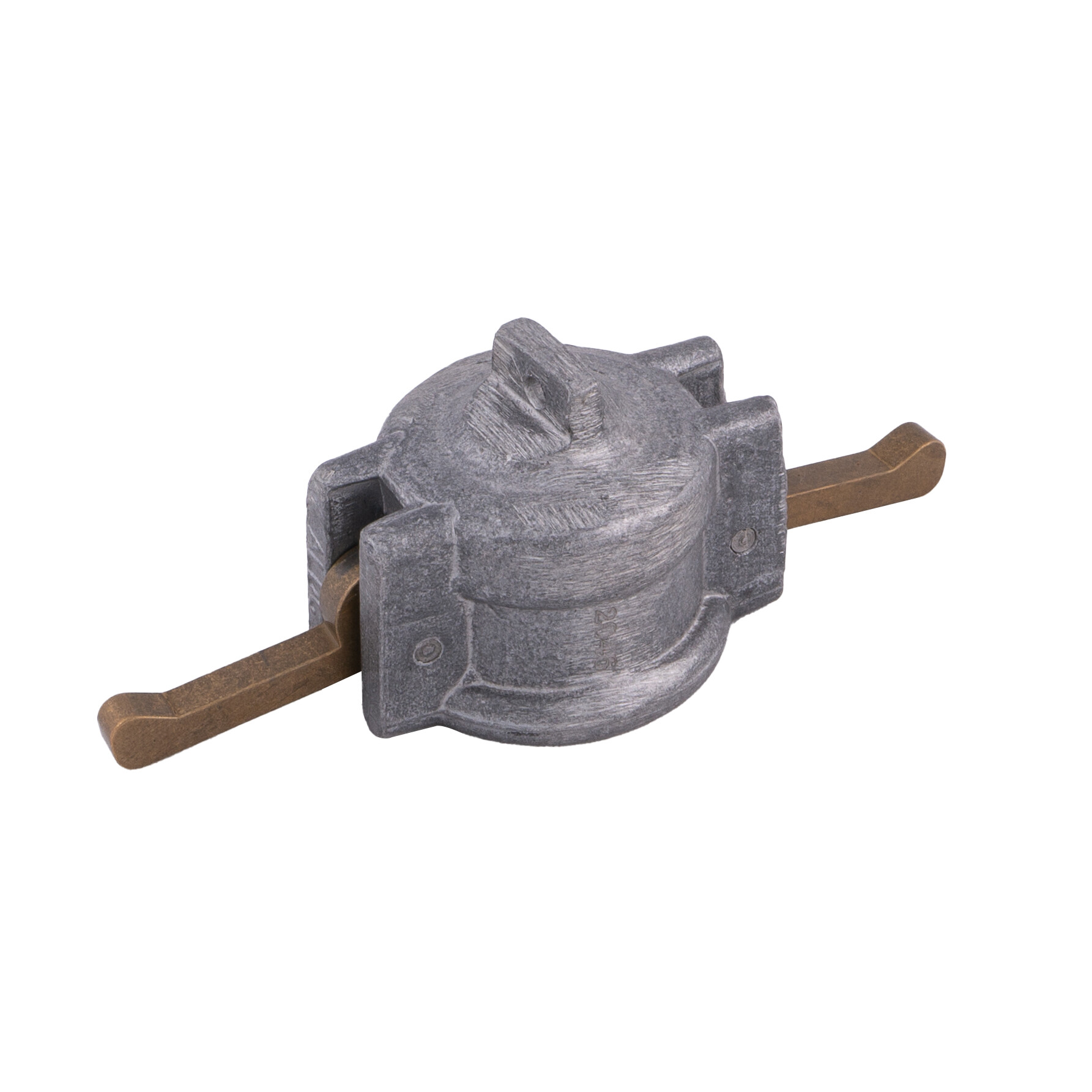

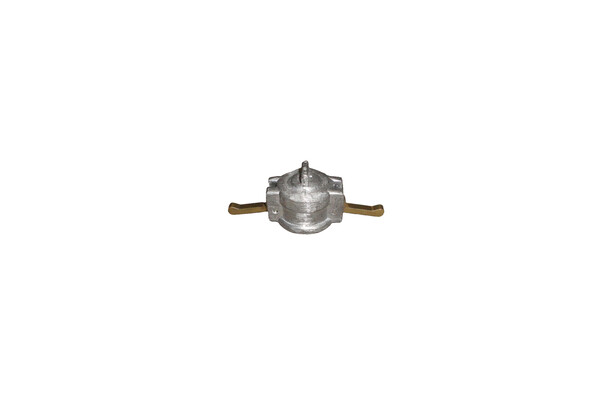

NA20-2A

Camlock Cap Dust.

¾" Buna
NA25-2A Camlock Cap Dust. 1" Buna
NA32-2A Camlock Cap Dust. 1¼" Buna
NA40-2A Camlock Cap Dust. 1½" Buna

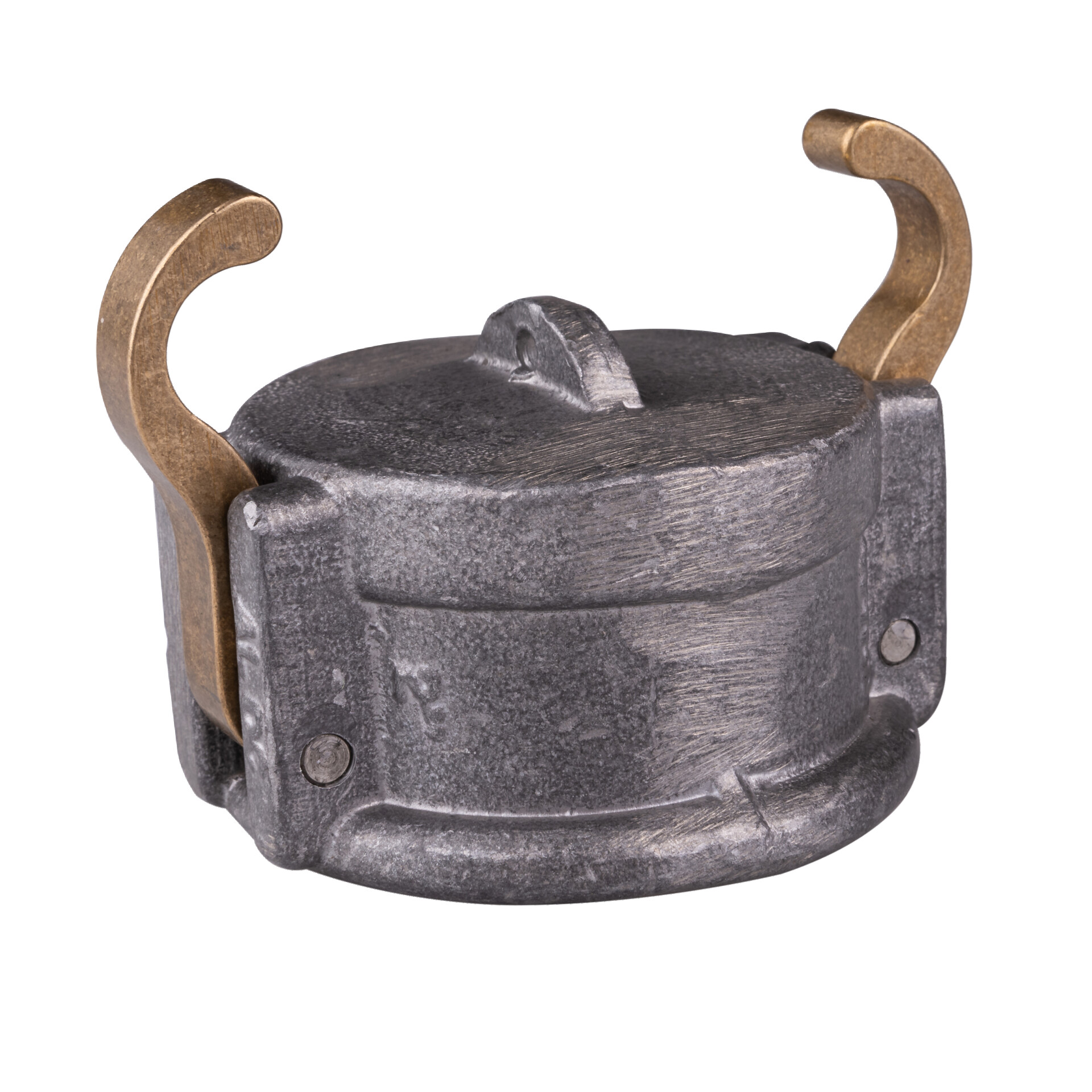

NA50-2A Camlock Cap Dust. 2" Buna
NA50-2KA Camlock Cap Dust (Lockable). 2" Buna
NA65-2A Camlokc Cap Dust 2½" Buna
NA80-2AT Camlock Cap Dust 3" Tef Exp

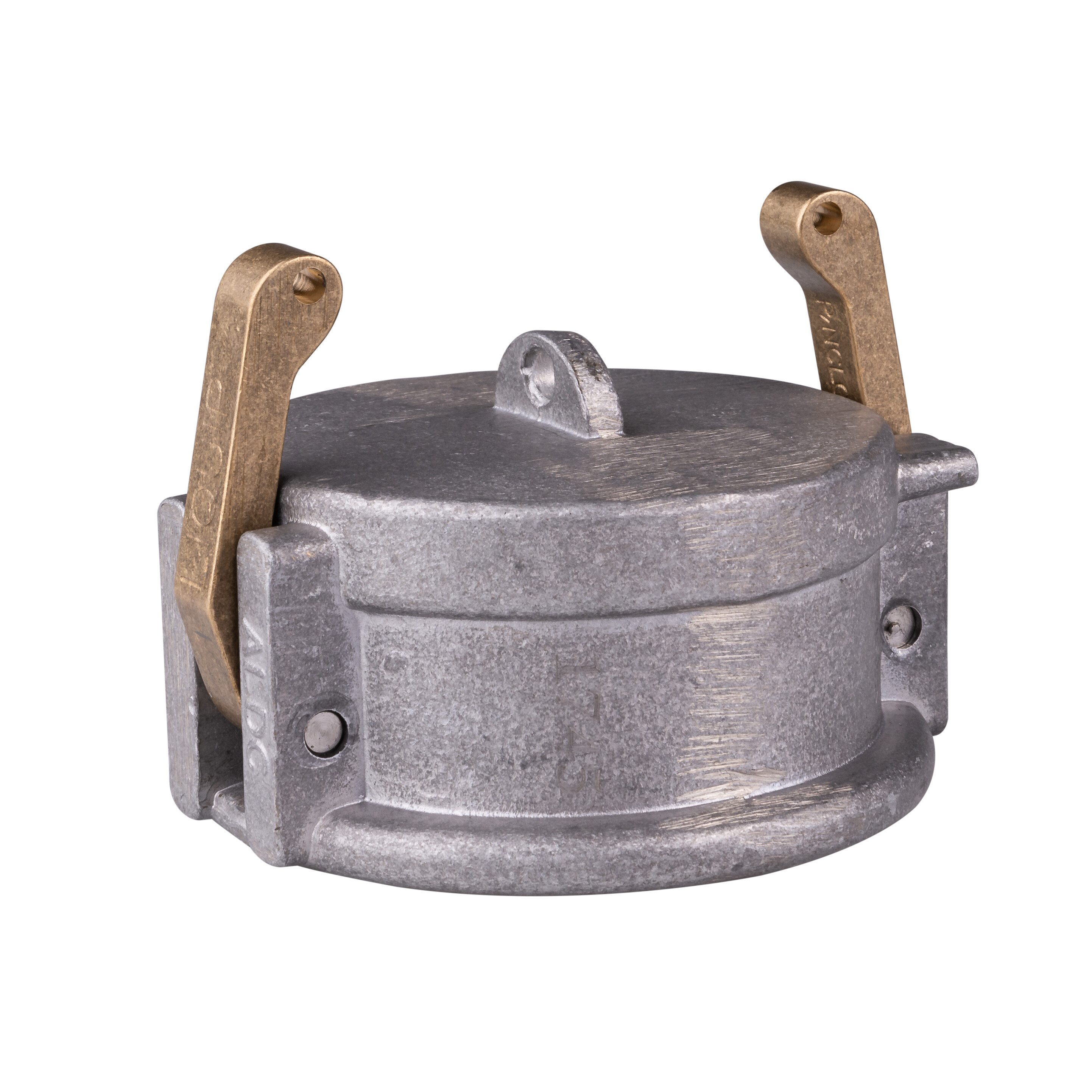

NA80-2AW Camlck Cap Dust. 3" Buna
NA80-2J Camlock Cap Dust (Jet-A1).  3" Buna

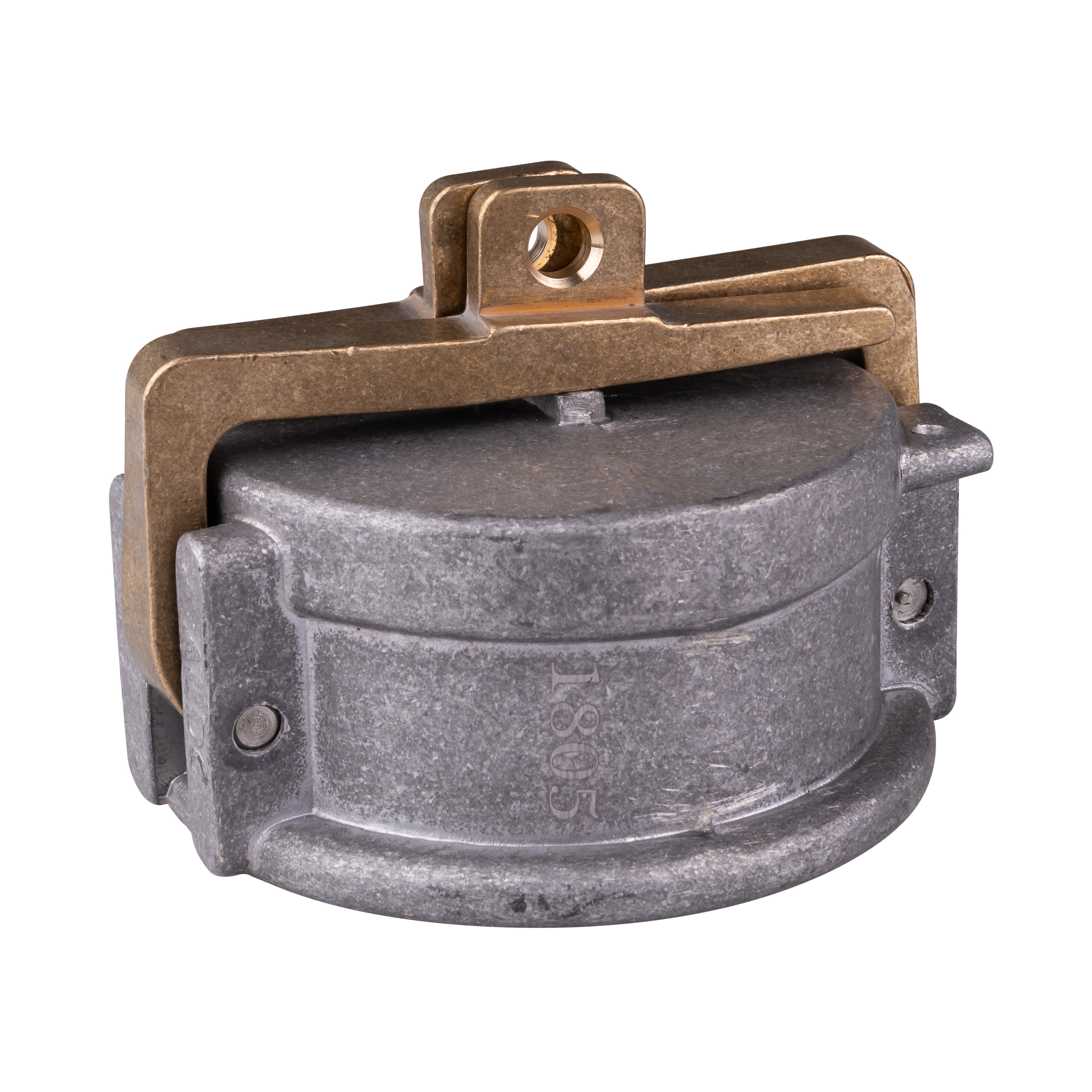

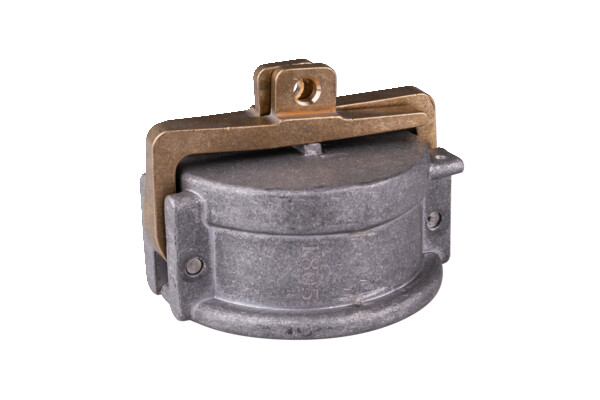

NA80-2KA

Camlock Cap Dust with positioning lug to align locking handles.

3" Buna
NA80-2KAT Camlock Cap Dust with positioning lug to align locking handles. 3" Teflon
NA100-2AT Camlock Cap Dust 4" Teflon

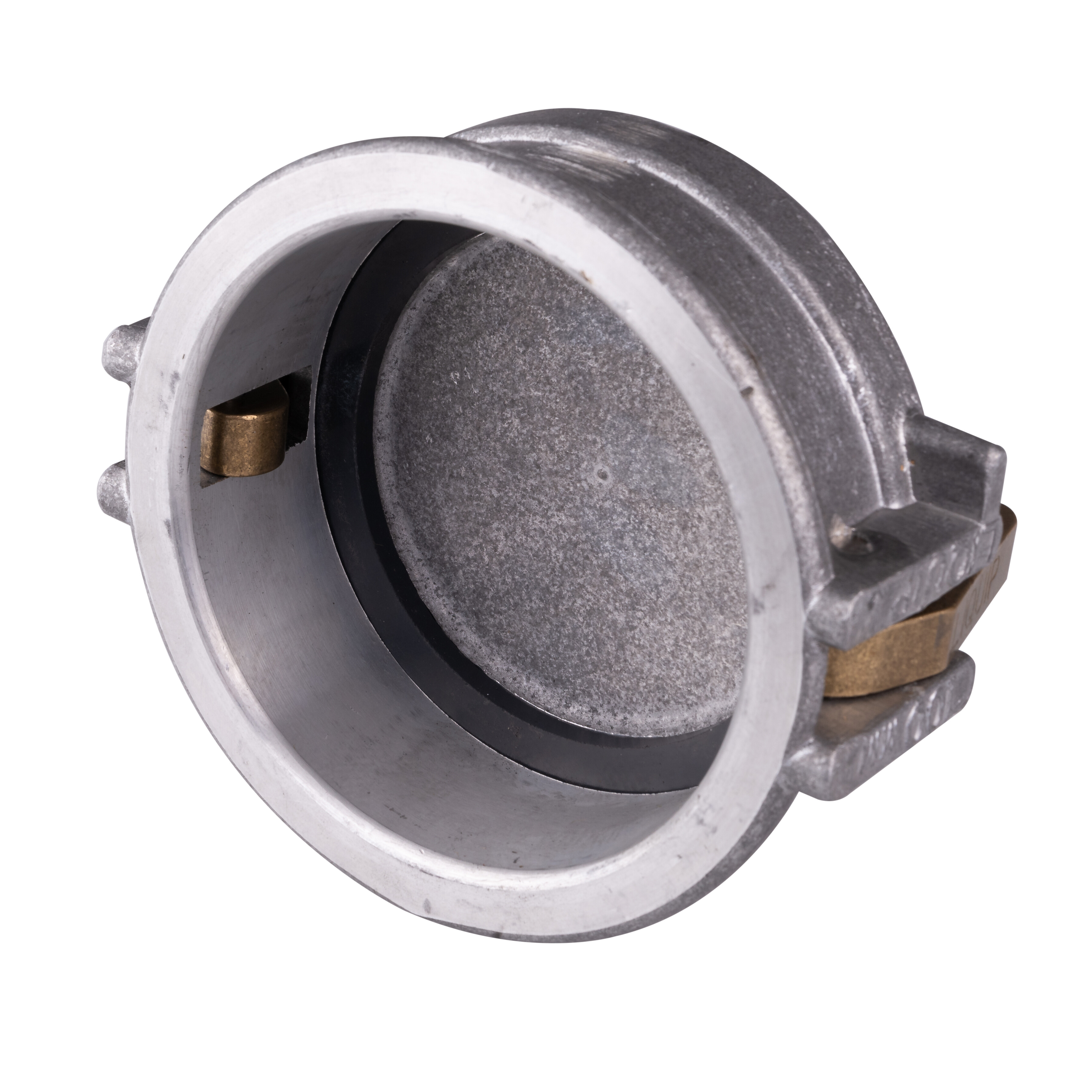

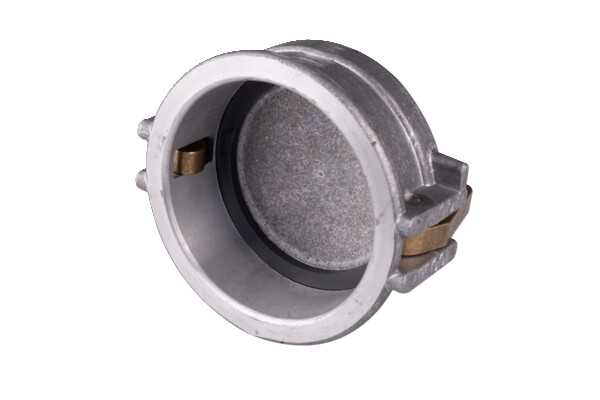

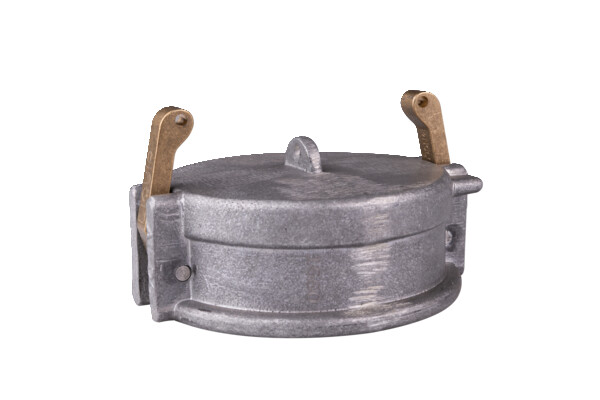

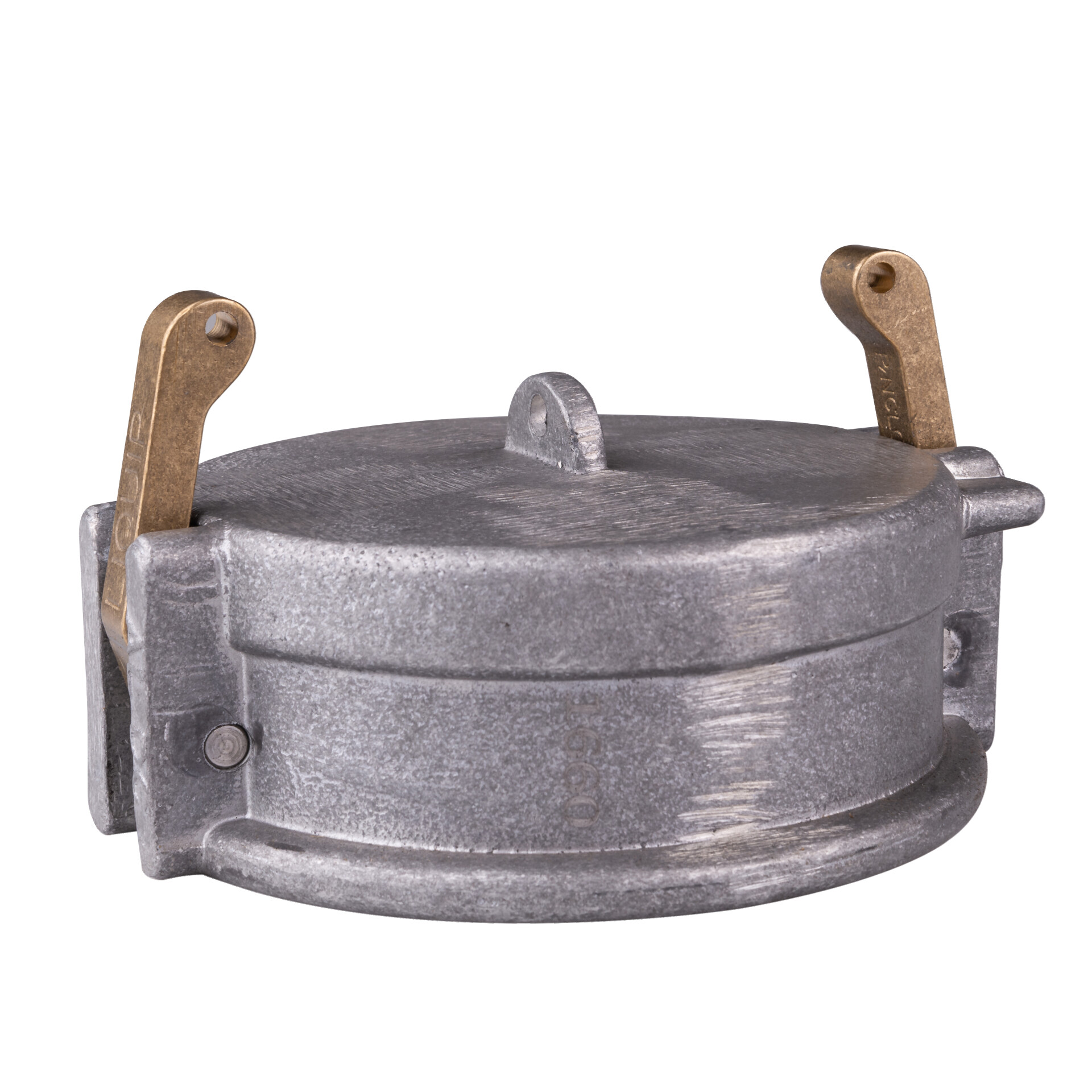

NA100-2AW     Camlock Cap Dust. 4" Buna

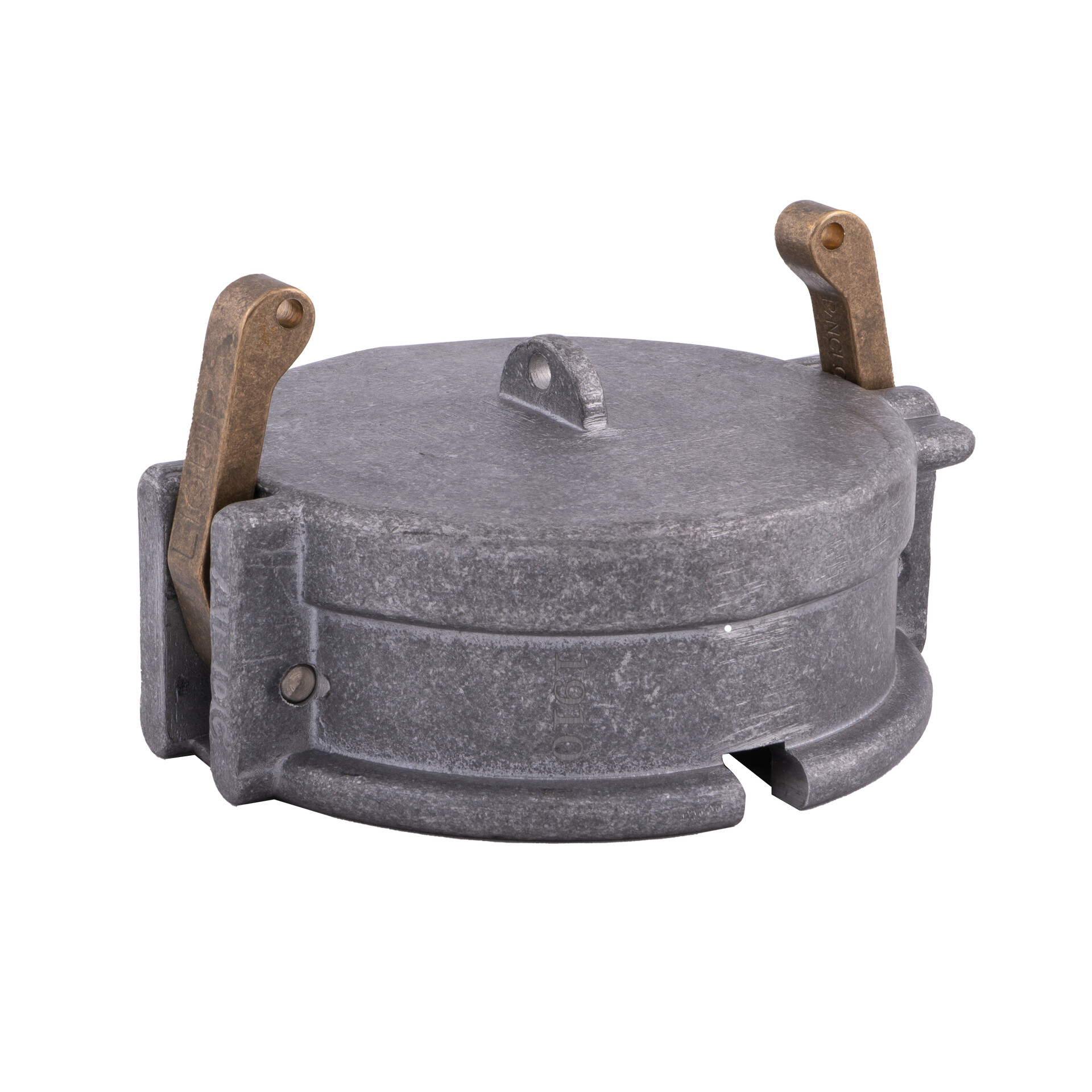

NA100-2J Camlock Cap Dust (Jet-A1).       4" Buna

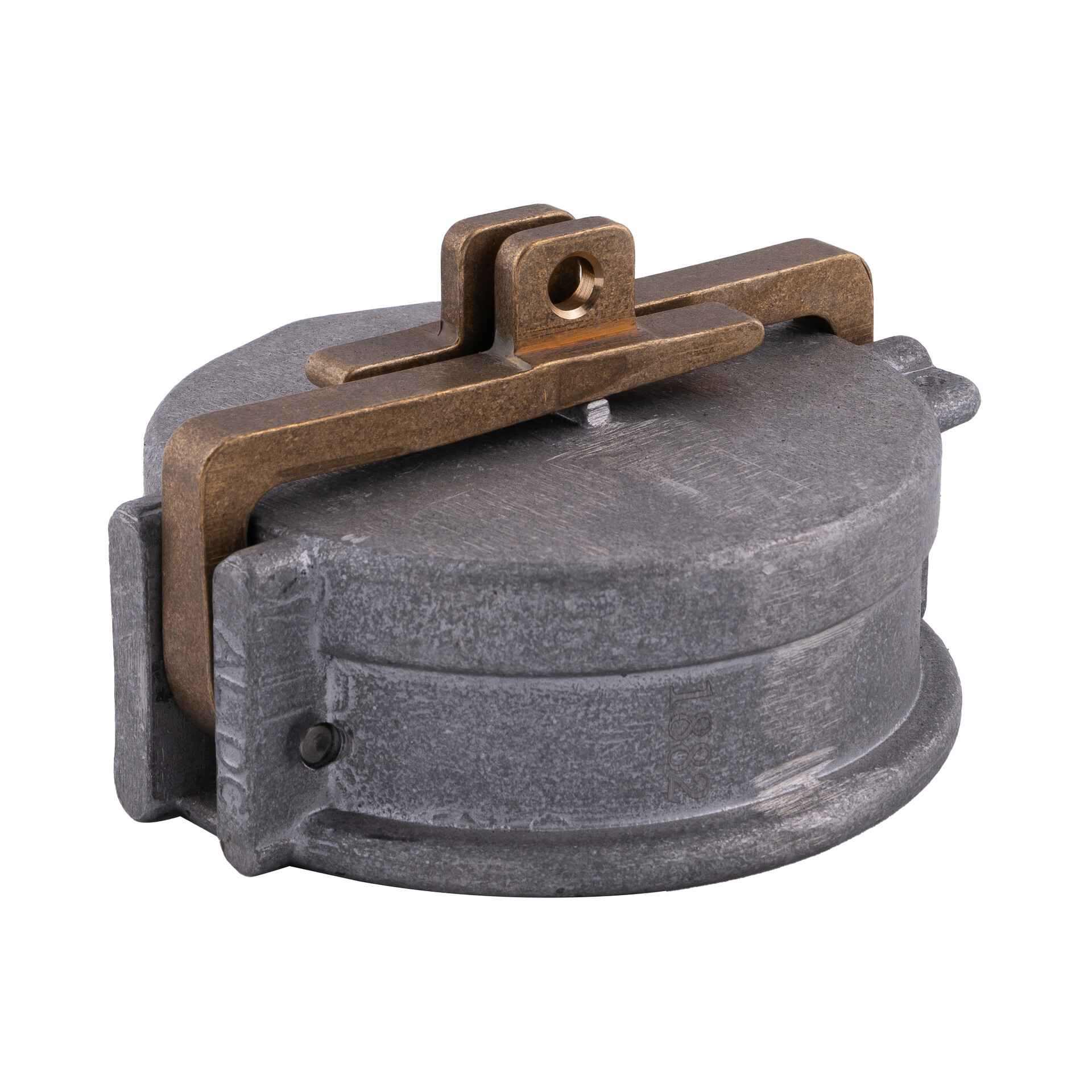

NA100-2KA Camlock Cap Dust with positioning lug to align locking handles. 4" Buna
Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
NA25-2A Camlock Cap Dust, Size: 1", Seal: Buna
NA32-2A Camlock Cap Dust, Size: 1¼", Seal: Buna
NA40-2A Camlock Cap Dust, Size: 1½", Seal: Buna
NA50-2A Camlock Cap Dust, Size: 2", Seal: Buna
NA50-2KA Camlock Cap Dust (lockable), Size: 2", Seal: Buna
NA65-2A Camlock Cap Dust, Size: 2½", Seal: Buna
NA80-2AT Camlock Cap Dust, Size: 3", Seal: Tef Exp
NA80-2AW Camlock Cap Dust, Size: 3", Seal: Buna
NA80-2J Camlock Cap Dust (Jet-A1), Size: 3", Seal: Buna
NA80-2KA Camlock Cap Dust with positioning lug to align locking handles, Size: 3", Seal: Buna
NA80-2KAT Camlock Cap Dust with positioning lug to align locking handles, Size: 3", Seal: Teflon
NA100-2AT Camlock Cap Dust, Size: 4", Seal: Teflon
NA100-2AW Camlock Cap Dust, Size: 4", Seal: Buna
NA100-2J Camlock Cap Dust (Jet-A1), Size: 4", Seal: Buna
NA100-2KA Camlock Cap Dust with positioning lug to align locking handles, Size: 4", Seal: Buna
NA20-2A Camlock Cap Dust, Size: ¾", Seal: Buna
