10 Series Emergency Shut-Off Valves

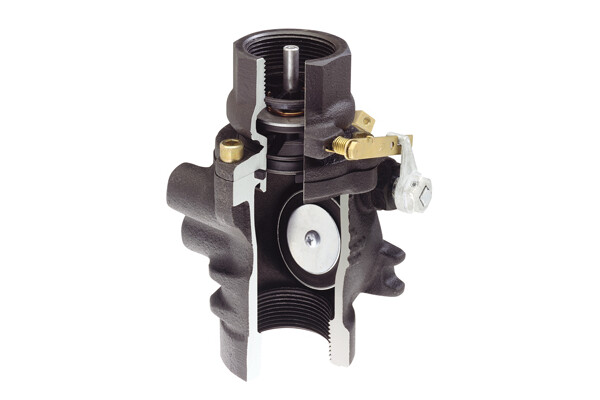

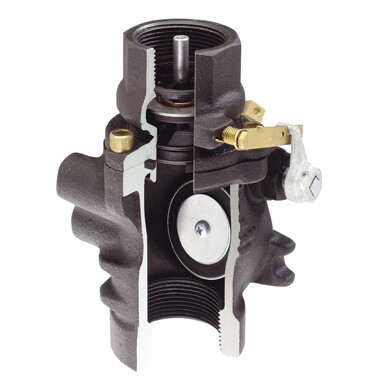

OPW 10 Series Emergency Shut-off Valves are installed on fuel supply lines beneath dispensers at grade level to minimize hazards associated with collision or fire at the dispenser. If the dispenser is pulled over or dislodged by collision, the top of the valve breaks off at the integral shear groove, activating poppets and shutting off the flow of fuel. Single-poppet models shut off supply flow, while double-poppet models shut off supply as well as prevent release of fuel from the dispenser’s internal piping. The base of the emergency valve is securely anchored to the concrete dispenser island through a stabilizer bar system within the dispenser sump or pan to ensure proper shearing action.

The valve base is secured to the stabilizer bar using a three-point boss mount system or a U-Bolt Kit (not included) 10UBK-015 (1-1/2") and 10URK-0200 (2 sold separately). Valve inlet (bottom) connections are female pipe threads and outlet (top) connections are available with female threads, male threads or a union fitting. Other options include suction system models with a normally closed secondary poppet which maintains prime, and models with external threads on the inlet body which connect to secondary containment systems.


Features & Benefits
  • High Flow Capacity – The primary poppet is held out of the flow stream while the secondary poppet is held normally open to minimize head loss across the valve and to protect the poppet seals from damage and erosion. True 1-1/2" (4 cm) and 2" (5 cm) body sizes ensure maximum flow.
  • Fire Protection – A fusible link trips the valve closed at 165° F to shut off fuel supply to the dispenser.
  • Main Poppet Seat Integral to the Top Assembly – Having the main poppet seat as an integral part of the valve top assures a new, clean seating surface is installed each time the top is replaced. This design also ensures that the integrity of the seal between the valve top and bottom is verified during line testing and allows full inspection of the main poppet when the top is removed.
  • Duragard®-Coat Finish – Provides superior corrosion resistance.
  • Reliable Shut-off – A stainless steel main spring, a Teflon®-coated brass packing nut, and a copper/nickel/ chrome-plated brass stem are designed to prevent tar build-up and corrosion from interfering with poppet operation after long periods of normal service without activation.
  • Integral Test Port – A 3/8" (9.5 mm) Test Port allows the piping system to be air-tested without breaking any piping connections.
  • Patented Thermal Relief Valve – Relieves excessive pressure over 25 psi caused by thermal expansion of fuel in the dispenser piping system in the event of fire (double-poppet models only).
  • Low-Profile Tops – Female and Union-top double-poppet valves have a low-profile top to allow upgrading from OPW single-poppet valves without changing existing piping.
  • Multiple Mounting Options – Valves are boss-mounted to stabilizer bars in sumps and pans or mounted to bars embedded in the island with optional U-Bolt kits 10UBK-015 (not included). Versatile Combination Body (boss mount/U-Bolt mount) models are available to accommodate most mounting applications with one valve style.
  • Underwriters Laboratories – Listed for use with gasoline and 85% and 100% methanol. All OPW 10 Emergency Shut-Off Valves meet requirements of UL STANDARD 842.
  • Compatible with 85% ethanol (E85)

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Materials

    Top: Cast iron.
    Body: Cast iron.
    Disc: M-19.
    Carrier: Zinc-plated steel.
    Stem: Copper-nickel-chrome-plated brass.
    Poppet spring: Stainless steel.
    Seal: M-19 O-ring.
    Packing Nut: Brass, Teflon®-coated.
    Inlet and outlet thread: 1 1/2" (4 cm) NPT (British threads available).
    With black Duragard® E-coating

    Important Notice

    When mounting the OPW 10 Series Emergency Shut-off Valves, the anchoring system employed must withstand a force greater than 650 ft. pounds per valve. NFPA Code 30A, Automotive and Marine Service Station Code, requires that the automatic closing feature of emergency shut-off valves be checked at least once per year by manually tripping the hold-open linkage. OPW recommends the use of PISCES® Stabilizer Bar Support System for proper mounting of 10 Series Valves.

    Notice

    As per NFPA 30A, electrical supply to the submersible pump must always be disconnected before servicing meters, dispensers or emergency shut-off valves.

    Ordering Information
    Female Threaded Top (Outlet) Connection Valves
    Model No.
    Body Size
    Connection Threads
    Poppet Configuration
    Application
    Replacement Top
    in.
    cm
    10BF-5725
    1-1/2
    4
    NPT
    Single
    Pressure
    10RFT-5750
    10BFP-5726
    1-1/2
    4
    NPT
    Double
    Pressure
    10FTP-5701
    10RF-2001
    2
    5
    NPT
    Single
    Pressure
    10RFT-5742
    10RFP-2002
    2
    5
    NPT
    Double
    Pressure
    10RFTP-5752
    Male Threaded-Top (Outlet) Connection Valves
    Model No.
    Body Size
    Connection Threads
    Poppet Configuration
    Application
    Replacement Top
    in.
    cm
    10BM-5825
    1-1/2
    4
    NPT
    Single
    Pressure
    10RMT-5850
    10BHMP-5830
    1-1/2
    4
    NPT
    Double
    Pressure
    10RMTP-5851
    10SBHMP-5830
    1-1/2
    4
    NPT
    Double
    Suction
    10SHMTP-5811
    10RM-2003
    2
    5
    NPT
    Single
    Pressure
    10RMT-5842
    10RMP-2004
    2
    5
    NPT
    Double
    Pressure
    10RMTP-5852

    Union-Top (Outlet) Connection Valves
    Model No.
    Body Size
    Connection Threads
    Poppet Configuration
    Application
    Replacement Top
    in.
    cm
    10BU-5925
    1-1/2
    4
    NPT
    Single
    Pressure
    10RUTC-5975
    10BUP-5926
    1-1/2
    4
    NPT
    Double
    Pressure
    10UTCP-5901
    10SBUP-5926
    1-1/2
    4
    NPT
    Double
    Suction
    10SUTCP-5911
    10RU-2005
    2
    5
    NPT
    Single
    Pressure
    10RUTC-5962
    10RUP-2006
    2
    5
    NPT
    Double
    Pressure
    10RUTCP-5972
    Note: All BSPP Thread Shear Valves must be ordered through OPW's Europe or Asia office.


    Dimensions

    1-1/2" Dimensions


    10BF
    10BFP
    10BM
    10BHMP
    10BU
    10BUP
    10SBFP
    10SBHMP
    10SBUP
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    A
    6-21/64
    161
    6-21/64
    161
    6-13/16
    173
    7-11/16
    195
    7-1/4
    184
    7-1/4
    184
    B
    2-3/4
    70
    2-3/4
    70
    2-3/4
    70
    2-3/4
    70
    2-3/4
    70
    2-3/4
    70
    C
    2-11/16
    69
    2-11/16
    69
    2-11/16
    69
    2-11/16
    69
    2-11/16
    69
    2-11/16
    69
    D
    1-3/4
    44
    1-3/4
    44
    2-1/4
    57
    3-1/8
    79
    2-11/16
    69
    2-11/16
    69


    2" Dimensions


    10RF
    10RM
    10RU
    10RFP
    10RMP
    10RUP
    10RFS
    10RMS
    10RUS
    10RFSP
    10RMSP
    10RUSP
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    in.
    mm
    A
    8-3/8
    213
    9-27/32
    250
    9-13/32
    239
    8-3/8
    213
    9-27/32
    250
    9-13/32
    239
    B
    3-7/64
    79
    3-7/64
    79
    3-7/64
    79
    3-7/64
    79
    3-7/64
    79
    3-7/64
    79
    C
    3-1/4
    83
    3-1/4
    83
    3-1/4
    83
    3-1/4
    83
    3-1/4
    83
    3-1/4
    83
    D
    3-1/16
    78
    4-9/16
    116
    3-7/8
    98
    3-1/16
    78
    4-9/16
    116
    3-7/8
    98




    PA15 Offset Adaptor

    The PA15 Offset Adaptor is designed for adjusting misalignment of pipe in dispenser sumps and suction stubs. The PA15 has a low profile feature, and is designed for maximum flow.
