Trench Widths over 1m up to 1.6m (40”-64”) – Side by Side Configuration

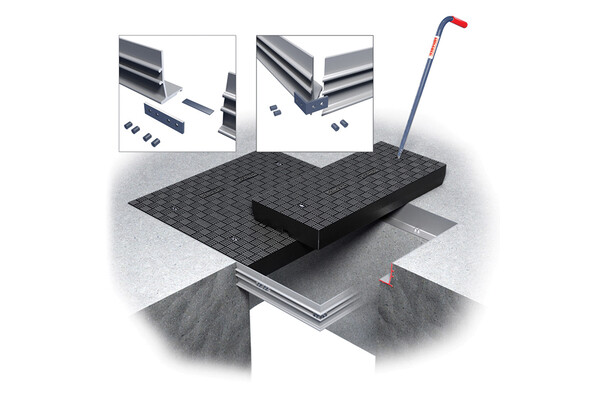

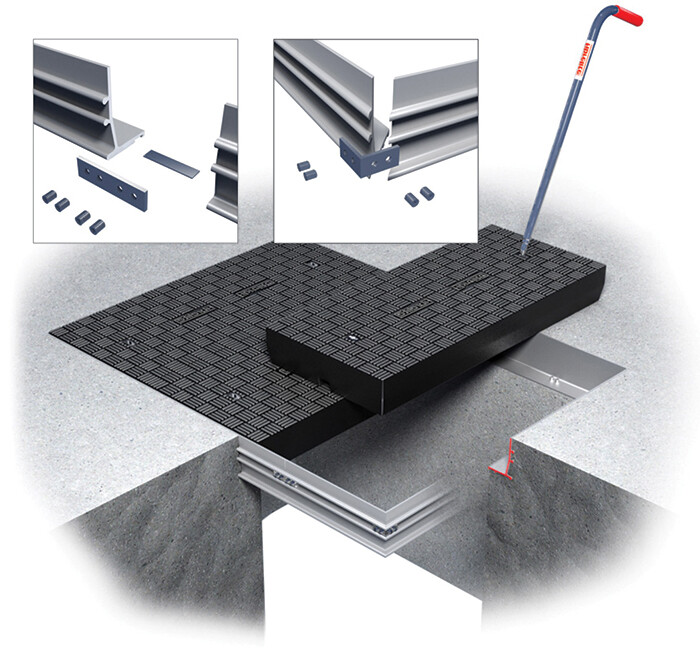

Frame or Rebate Installation

Recommended products for replacement

    Technical Information
    Dimension ’A’ Dimension ’B’ Depth Weight
    1000 - 1200mm (40" - 48") 450 - 900mm (18" - 36") 101.6mm (4") 55 kg/M² (11 lbs/ft²)
    1000 - 1400mm (40" - 56") 450 - 1000mm (18" - 40") 117mm (4 5⁄8") 52 kg/M² (11 lbs/ft²)
    1400 - 1600mm (56" - 64") 700 - 1000mm (28" - 40") 117mm (4 5⁄8") 52 kg/M² (11 lbs/ft²)
    1000 - 1200mm (40" - 48") 450 - 600mm (18" - 24") 203.2mm (8") 61 kg/M² (12 lbs/ft²)
    1200 - 1600mm (48" - 64") 450 - 800mm (18" - 32") 203.2mm (8") 61 kg/M² (12 lbs/ft²)
    Ordering Information

    Please CONTACT LIQUIP for all ordering information.
