Trench Widths over 1.8m (72”) – Grid, Side by Side Configuration

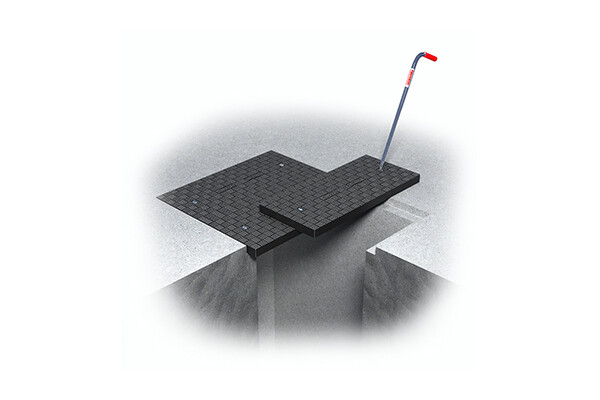

Frame or Rebate Installation

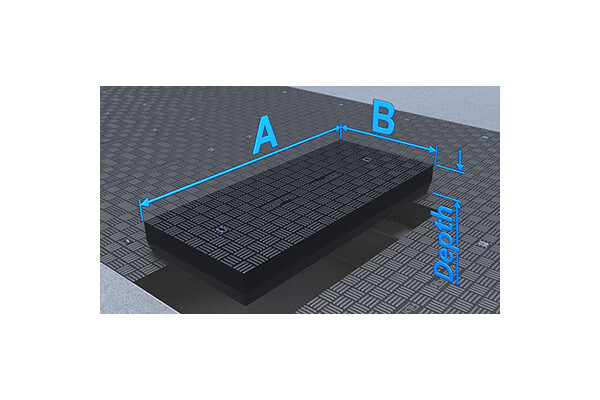

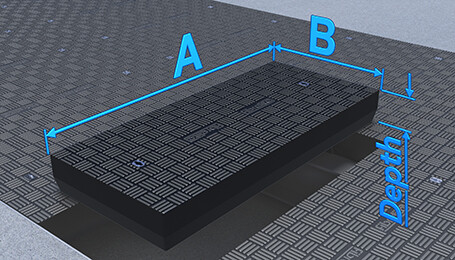

Dimension ’A’ Dimension ’B’ Depth Weight
1000 - 1300mm (40" - 52") 450 - 1000mm (18" - 40") 50mm (2”) 37 kg/M² (8 lbs/ft²)
1300 - 1500mm (52" - 60") 600 - 800mm (24" - 32") 50mm (2”) 53 kg/M² (11 lbs/ft²)
1000 - 1600mm (40" - 64") 450 - 1000mm (18" - 40") 76mm (3") 33 kg/M² (7 lbs/ft²)
1000 - 1800mm (40" - 72") 450 - 1000mm (18" - 40") 101.6mm (4") 32 kg/M² (6.5 lbs/ft²)
1000 - 1800mm (40" - 72") 450 - 1000mm (18" - 40") 117mm (4 5⁄8") 33 kg/M² (7 lbs/ft²)
1000 - 1800mm (40" - 72") 450 - 600mm (18" - 24") 203.2mm (8") 51 kg/M² (10 lbs/ft²)

Please CONTACT LIQUIP for all ordering information.
