Trench Widths up to 1m (40”) – End to End Configuration

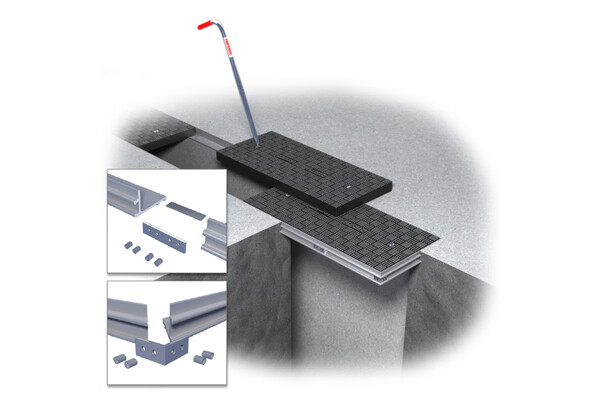

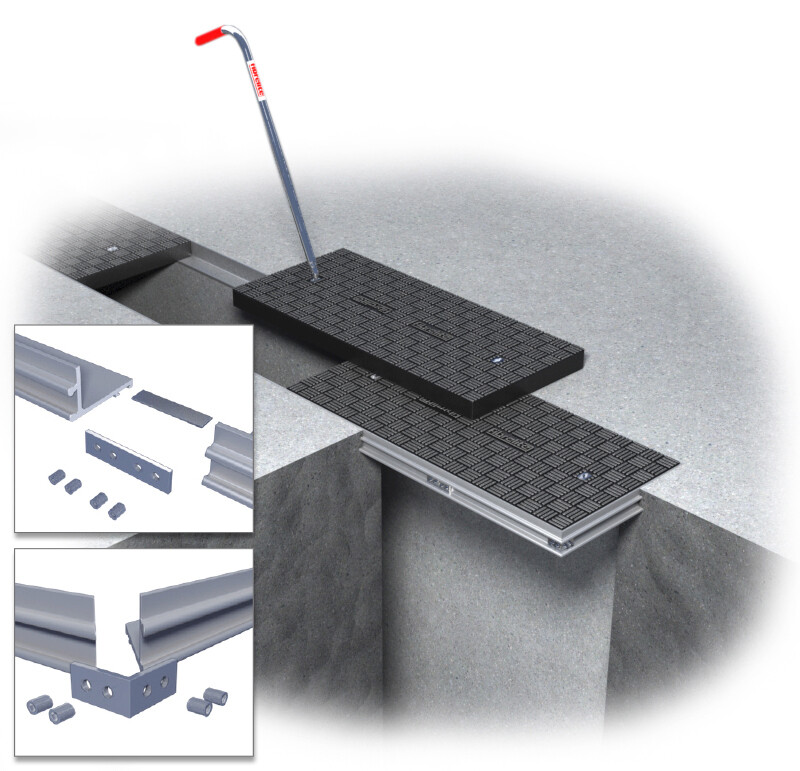

Frame or Rebate Installation

Dimension ’A’ Dimension ’B’ Depth Weight
300 - 800mm (12" - 32") 450 - 1800mm (18" - 72") 50mm (2”) 35 kg/M² (7 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 1800mm (18" - 72") 76mm (3") 42 kg/M² (9 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 1600mm (18" - 64") 101.6mm (4") 42 kg/M² (9 lbs/ft²)
300 - 800mm (12" - 32") 450 - 1600mm (18" - 64") 117mm (4 5⁄8") 43 kg/M² (9 lbs/ft²)
800 - 1000mm (32" - 40") 450 - 1400mm (18" - 56") 117mm (4 5⁄8") 43 kg/M² (9 lbs/ft²)
300 - 1000mm (12" - 40") 450 - 900mm (18" - 36") 203.2mm (8") 61 kg/M² (12 lbs/ft²)

Please CONTACT LIQUIP for all ordering information.
