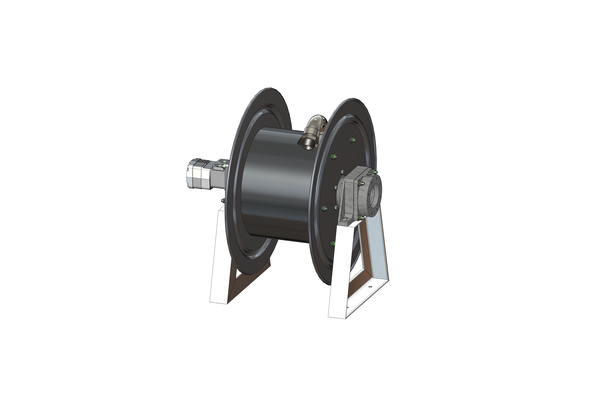

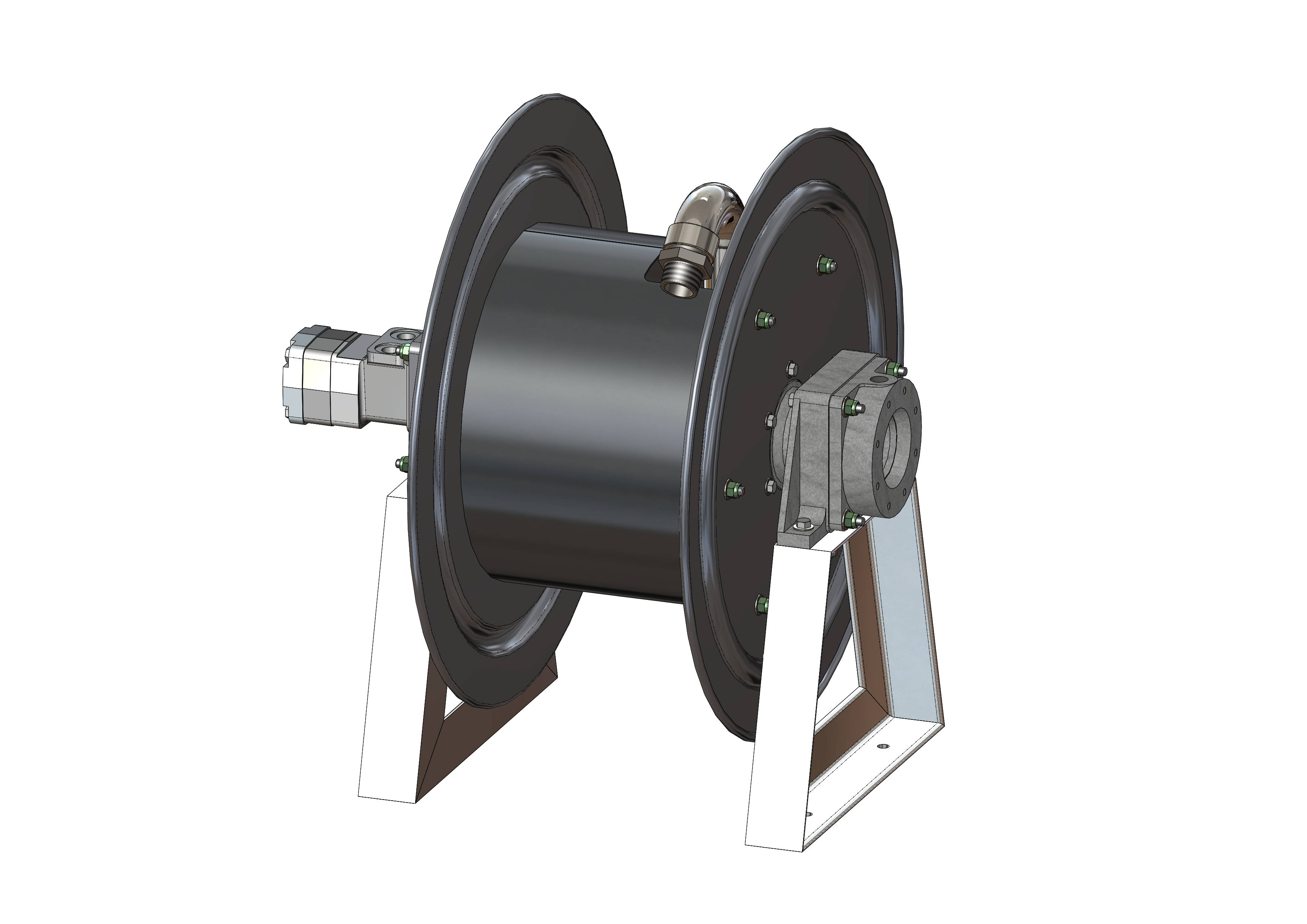

Aviation Hose Reel Drum Style - AHR250D Series



Liquip offer the AHR250D series of drum style hose reel suitable for use with aviation fuels.

The AHR250D series is designed for the effective storage and use of a quantity of fuel delivery hose to make refuelling activity easy.

When the fill point is located at varying locations the required length of hose can be dispensed manually and rewound by either hydraulic or manual means.

Features & Benefits
  • Flow area is equal to 63mm throughout.
  • All components are easily replaced as required.
  • Sealing is by o-ring seals.
  • Built tough to last in the harshest conditions.
  • Hose nozzle storage can be fitted with interlocks to help prevent driveaway accidents or product spills.
  • A-frame mounting frame can be supplied upon request.
  • 3" TTMA inlet flange has a ½“ BSP tapped port for pressure testing in-situ.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Operation
    Dispense: Un-hook the nozzle and dispense hose to the required location.
    Rewind: Rotate manual handle or engage hydraulic motor.

    Pressure tested and rating
    Up to 2,100kPa.

    Servicing
    Annually remove and repack bearing on each side of reel.

    Mounting
    4 x M12 Bolts - see mounting footprint on following pages.
    2 x A-frames (AHR250-5) supplied separately.

    Inlet flange to suit 75mm (3”) TTMA - 8 off 3/8” BSW x 25mm deep
    blind threads on a 124mm PCD.

    Materials
    Aluminium cheek plates and drum.
    Nickel plated steel gooseneck.
    Viton seals.
    Klinger gaskets.


    Variants
    Can suit the following diameter hose:
    25mm (1”)
    32mm (1¼”)
    38mm (1½“)
    50mm (2”)
    63mm (2½“)

    Rewind Mechanism
    Hydraulic or Manual.

    Drum Widths
    300mm (12”)
    450mm (18”)
    600mm (24”)
    950mm (37”)

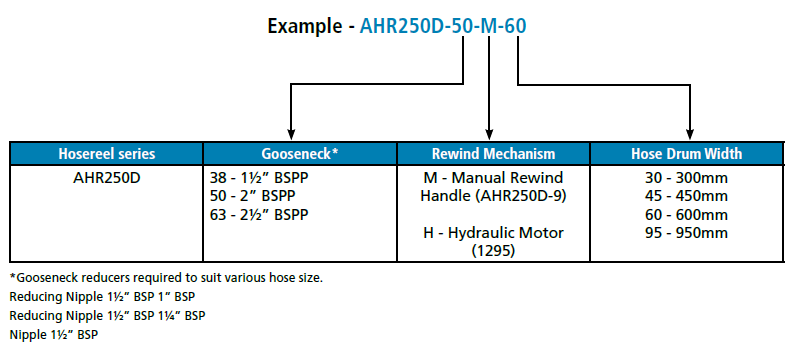

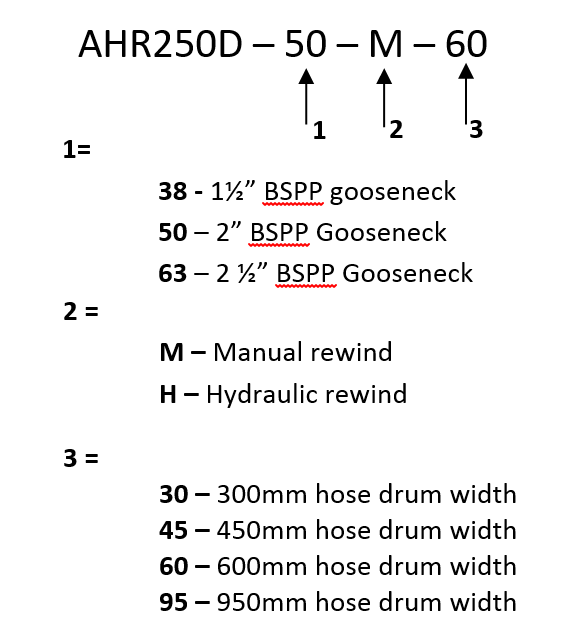

    Ordering Information

    Resources
