Gammon Hose Quick Disconnect



Liquip offers gammon connections to provide fast changeover from overwing to underwing nozzles with no spillage.





Features & Benefits
  • Fast operation - connect and disconnect in seconds, without tools.
  • Dependable operation - the ball-lock mechanism is the simplest, most reliable type in use, providing positive connection under constant or surge flow - even excessive shock.
  • A ball bearing sleeve lock permits 360 swivel action, preventing building up of hose torque
  • Tight seal disconnect - the poppet has a metal to metal stop to control compression on the valve o-ring seal.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Low Pressure Drop Design
    1 1/2": 2.6 psi @ 189.3LPM
    2" 2.9 psi @ 379.5LPM

    Ball bearings
    Hardened stainless steel balls and stainless steel ball race provide extra long service.

    Seal
    Molded U-Packer seal provides contact over several times the normal O-ring sealing area. Its design embodies a self-energising feature that gives a positive seal at all pressures. This seal is capable of sealing under side loads and will tolerate small scratches and some dirt without leakage.

    Connection
    To connect, pull back sleeve, push connector into coupler and release sleeve.

    Disconnection
    To disconnect, pull back coupler sleeve and connector halves separate. Valve opens automatically when halves are connected.

    Ordering Information

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link

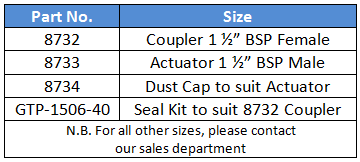

    Image Item Description
    Add Item into Enquiry Cart

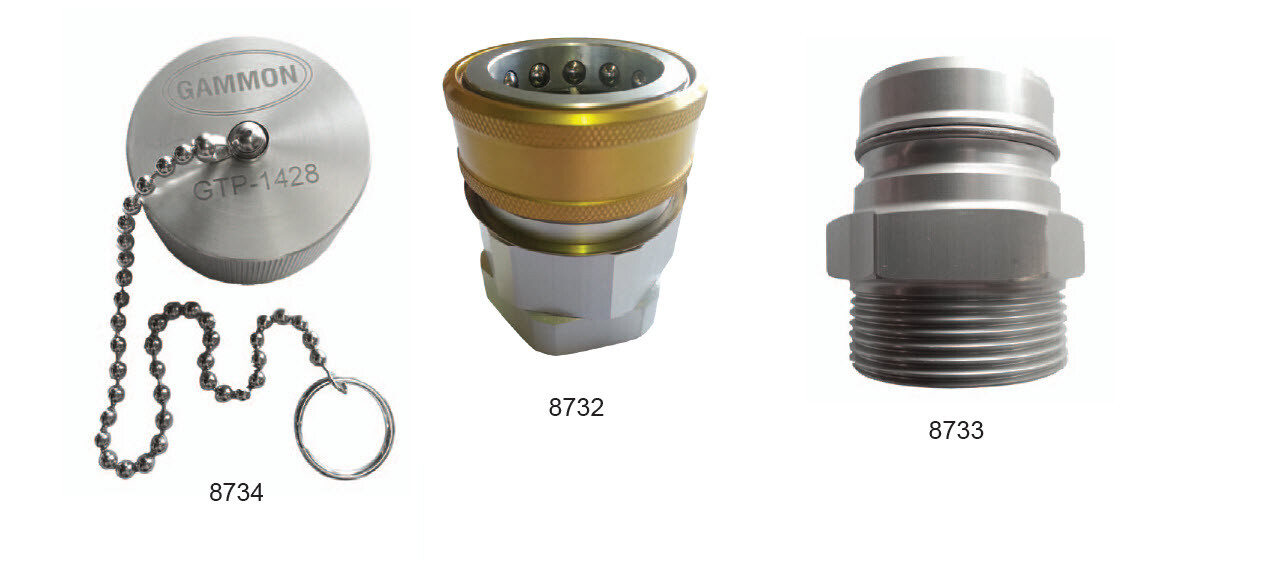

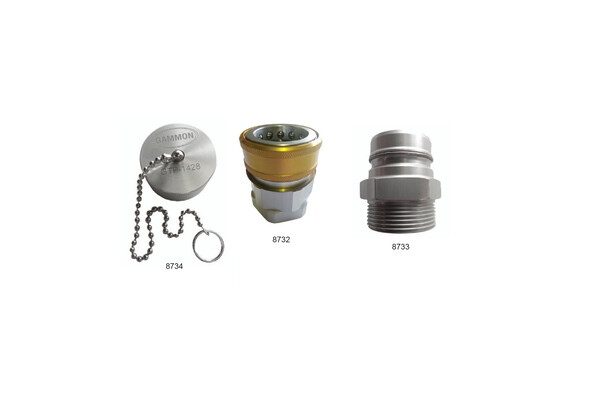

    8732 Coupler 1½" BSP Female
    8733 Actuator 1½" BSP Male
    8734 Dust Cap to suit Actuator
    GTP-1506-40 Seal Kit to suit 8732 Coupler
