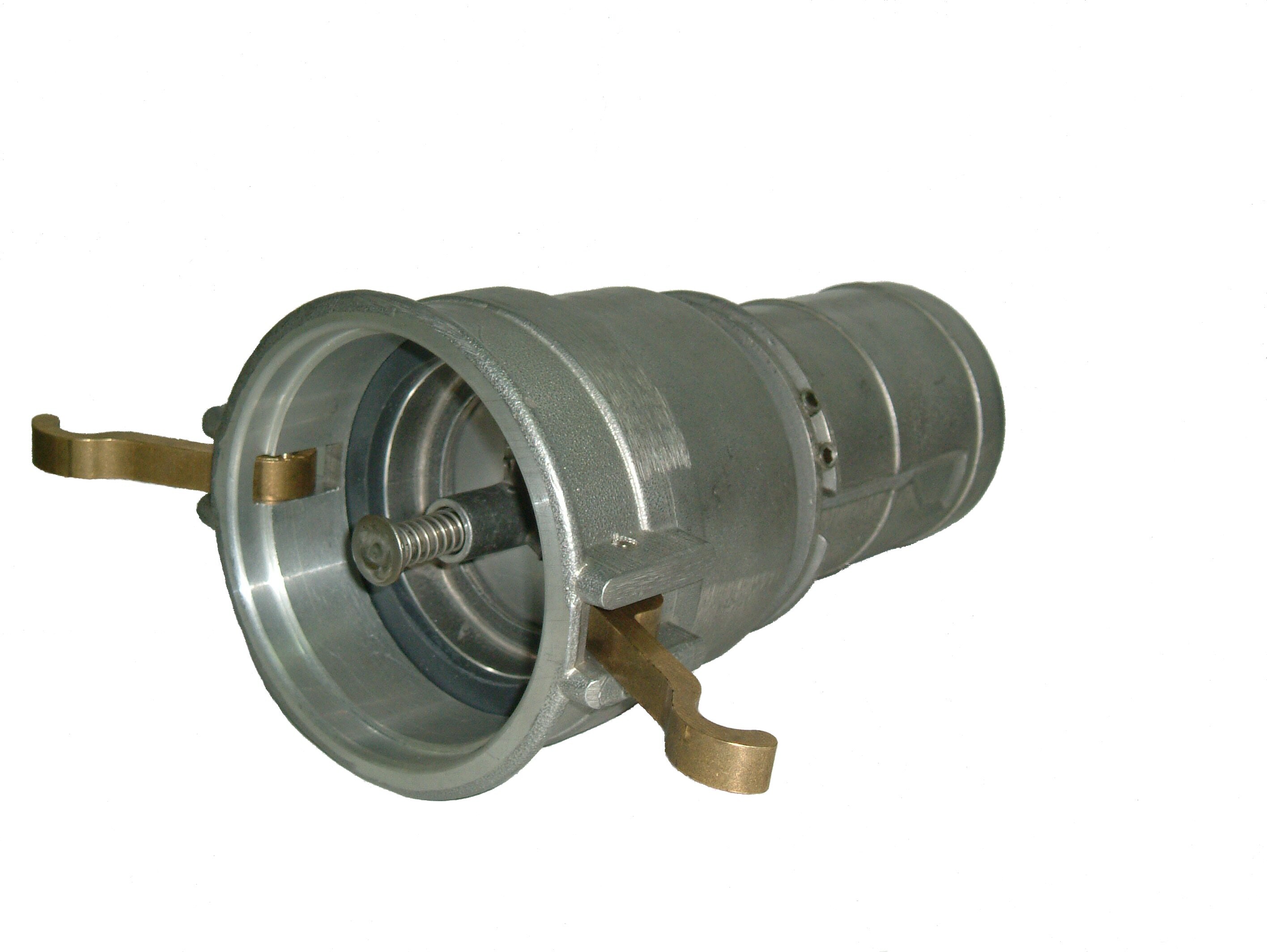

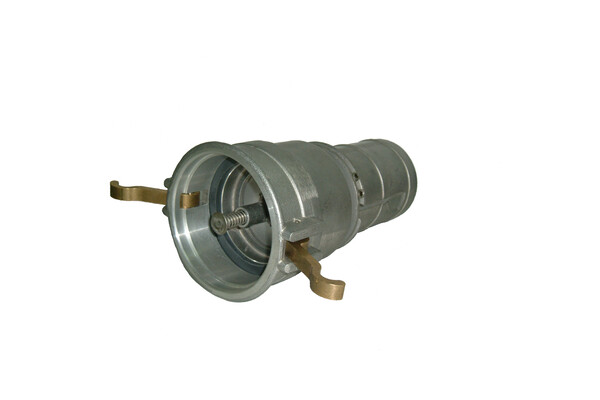

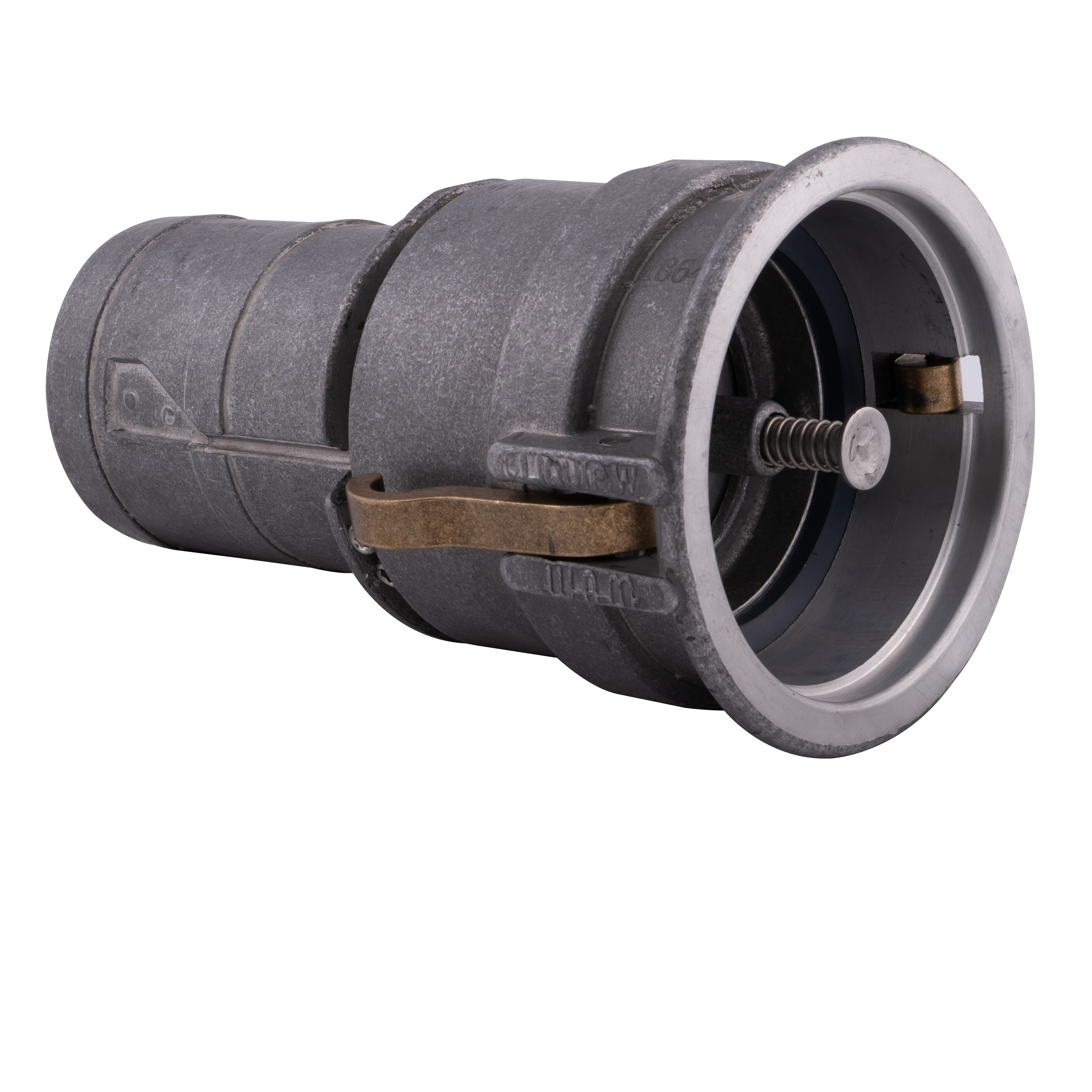

Vapour Coupler - VCF075W



Vapour couplers allow for vapour transfer between tanker trucks and loading/unloading tanks.

Liquip's vapour couplers automatically open when connected to a compatible vapour adaptor and automatically seal when disconnected.

Liquip offers a 100mm female camlock to 100mm male hosetail vapour coupler that can be used for vapour transfer between the tank truck and loading/unloading tank.

The VCF075W complies with AS5602:2009 and is a Ø75mm equivalent flow area and a spring loaded coupler that automatically opens when coupled with a compatible adaptor.

Features & Benefits
  • Low pressure drop.
  • Unique poppet design provides lower pressure drops than standard poppets at high flows rates.
  • Spring loaded poppet retains vapours until coupled to the male vapour adaptor.
  • Automatically opens and closes when connected to male adaptor.
  • Universal 4" (100mm) camlock connection.
  • Ø75mm equivalent flow area
  • 100mm hose tail.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Open Area
    4500mm2 = (76 dia hole).

    Poppet
    25mm travel.
    Poppet opens between 4 to 6 kPa vacuum for tank protection.

    Materials
    -Aluminium body and poppet.
    -Brass cam levers.
    -Stainless steel spring and central plunger.
    -Nitrile poppet seal and nitrile camlock seal.

    Standards
    Complies with AS5602:2009: Refined petroleum products—Vehicle bottom loading and vapour recovery. (selectivity counter-bore provided).
    Complies with Australian SLP.

    Mounting
    100mm hose tail.
    4” NATO standard camlock.

    Weight
    2kg.

    Ordering Information

    VCF075W: 100mm Female Camlock to 100mm Male Hosetail vapour coupling.

    Associated Equipment

    VCF500: 100mm bore through, 4” TTMA flange mount & viewing sightglass. (Not to AS:5602 and therefore not suitable for use in Australia).

    VCM450: Vapour adaptor 100mm (4") flow through.

    VCM3P: Vapour adaptor with promixty switch holder.

    VCM3-F: Al Vapour adaptor 100mm Male to 100mm TTMA flange.

    VCFPA: Vapour parking adaptor with proximity switch holder.
