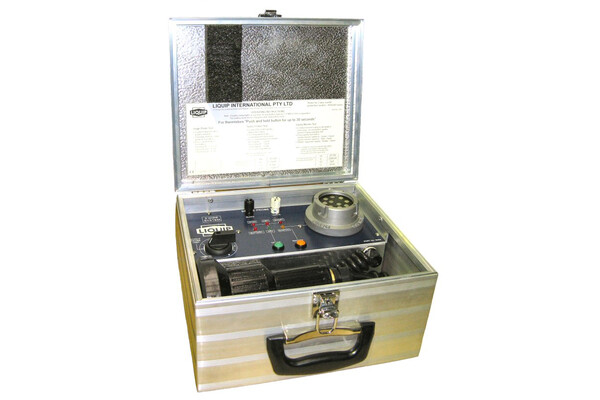

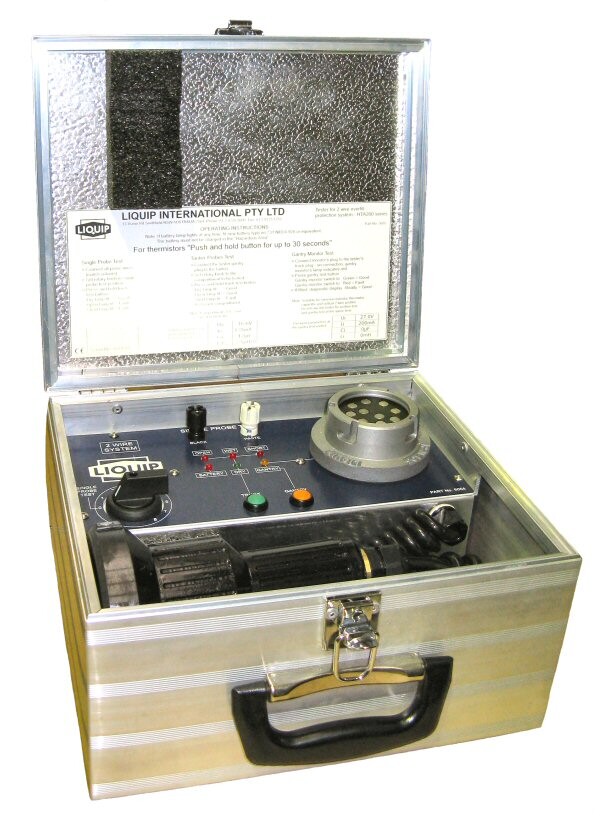

Overfill System Tester



Liquip offers portable overfill system testers that completely test both 2 and 5 wire tank truck and terminal/depot overfill systems.

Users can test truck systems, gantry systems and individual probes for quick and effective fault-diagnosis.

With a superior design and easy to use functionality the HTA series testers provide effective testing and diagnostics of overfill protection and grounding/earthing systems.

Features & Benefits
  • Diagnoses all common probes and gantry monitors including thermistor, optical and capacitive.
  • Test 2 wire or 5 wire systems.
  • Test gantry systems, truck systems and individual probes.
  • Clearly labeled diagnostic lights indicate if there is a fault and what the fault is.
  • Easy to operate.
  • Portable design, comes with carry handle and locking latch.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Operating Temperature
    -20°C to +70°C.

    Battery
    12 Volt Latern type.

    Materials
    -Aluminium briefcase.
    -Gantry plug and truck plug are polyurethane and stainless steel nose cone respectively with self-store 10 core cable.

    Weight
    6.0kg.

    Ordering Information

    HTA204: 2 wire overfill system truck and terminal tester.

    HTA503: 5 wire overfill truck and terminal system tester.

    Associated Equipment

    RM140D: Overfill monitor (typical configuration for Australian market).

    RM140E: Overfill monitor (typical configuration for Global markets).

    LDP202: 2 wire Aluminium Overfill Probe.

    LDP205: 5 wire Aluminiun Overfill Probe.

    GP103: Gantry plug, 3-pin bayonet, Navy Blue, supplied with cable & gland.

    GP104: Gantry plug, 4-pin bayonet, Black, supplied with cable & gland.

    GP114: 4 pin gantry plug with self coiling cable.(Quick Release).

    GP214: 4 pin gantry plug with straight cable. (Quick Release).

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    HTA204 2 wire overfill system truck and terminal tester.
    HTA503 5 wire overfill truck and terminal system tester.
