Gantry Plugs & Cable - GP10X Series

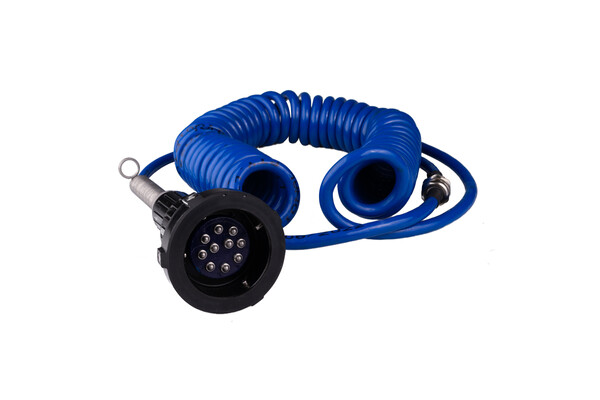

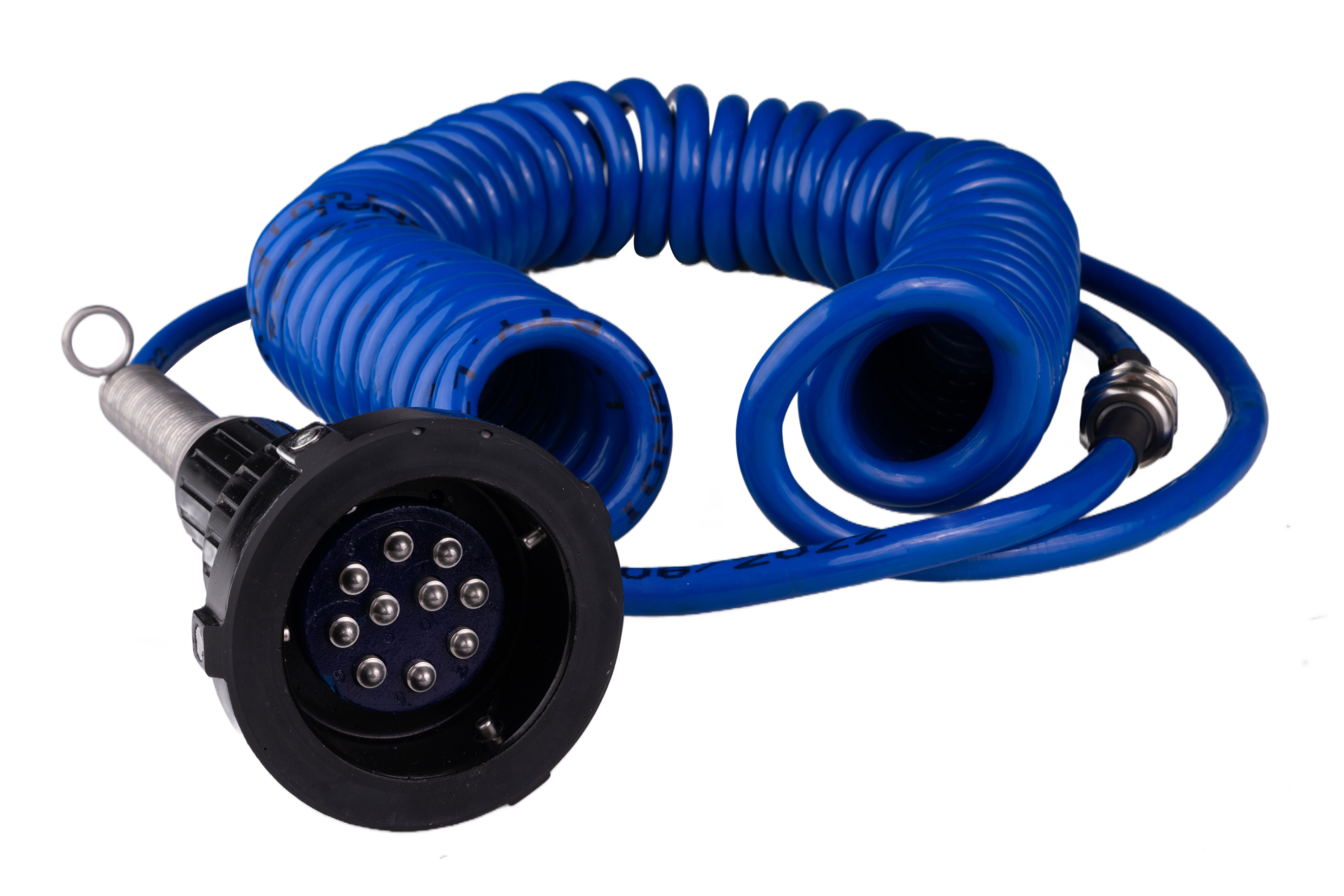

Liquip gantry plugs are industry standard 3 or 4 bayonet (J-slot) plugs with 10 pin as standard to cover all installation options. The GP10x plug provides the interface between the terminal/gantry systems and a tanker for overfill protection and/or grounding.


Gantry plugs are designed for use with common industry overfill protection monitors including the Liquip RM140 “Overfill Monitor”.

Recommended products for replacement

Categories
Features & Benefits
  • 3 or 4 J-slot configurations available to suit all industry truck plugs.
  • Caters for up to 8 compartments with 2-wire probes.
  • All materials are non-static producing.
  • Robust petroleum-resistant housing which can withstand harsh environments.
  • 10 core self-coiling petroleum-resistant cable (8m maximum reach).
  • High-visibility cable for ease of visibility and safety.
  • Supplied with a M25 cable gland. Junction box is supplied with an adaptor to ¾” NPT. This allows interchangeability for spare parts.
  • Junction box includes hanger for cable loop-spring.
  • Socket is heavily ribbed for better grip and bayonet positions clearly visible by being mounted on bosses.
Technical Information

Cable parameters
Capacitance C = 1.1 nF.
Inductance L = 12 μH.
Inductance/Resistance Ratio L/R = 35 μH/Ω.

Materials
All materials are non-static producing.

Weight
3.5kg for GP10x only.
5.0kg for total including junction box.

Mounting
Junction box has two internal mounting holes for 8mm diameter bolts.
Notes: Replace the cable gland with appropriate approved explosion-proof types if directly installed to the Overfill monitor.


Spare Parts
5115 Self-store coiled cable, Blue.
Plugs are available as spare part, order as GP103-3 or GP104-4.

Ordering Information

JB100: JUNCTION BOX 2 X ¾” NPS PORTS, WITH 1 ADAPTOR.
JB103: JUNCTION BOX 3 X ¾” NPS PORTS, WITH 2 ADAPTOR.
GP103: 3 J-SLOT BAYONET, NAVY BLUE, WITH CABLE & GLAND.
GP104: 4 J-SLOT BAYONET, BLACK, WITH CABLE & GLAND.
GP114Z: 4 J-SLOT BAYONET, BLACK, WITH CABLE FITTED WITH QUICK RELEASE CONNECTOR & GLAND.
GP204: 4 J-SLOT BAYONET, BLACK, WITH STRAIGHT CABLE & GLAND

Associated Equipment

5115: Self-store coiled cable, Blue.
Liquip RM1xx Series Overfill Protection Monitor.
Liquip PD50x Series Overfill Protection Monitor.
Liquip TP Series “Ground Boss” Truck Plug.
Liquip TPA Series Gantry Plug Parking adaptors.
