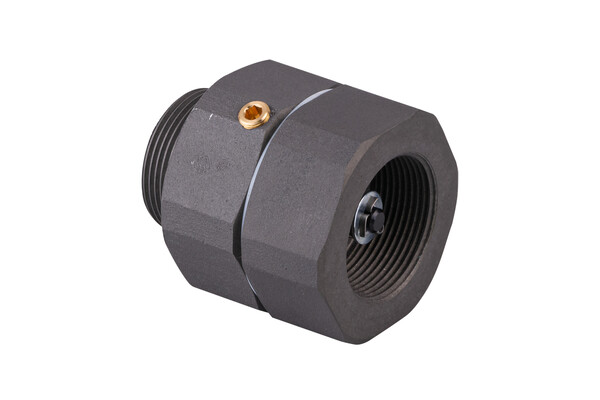

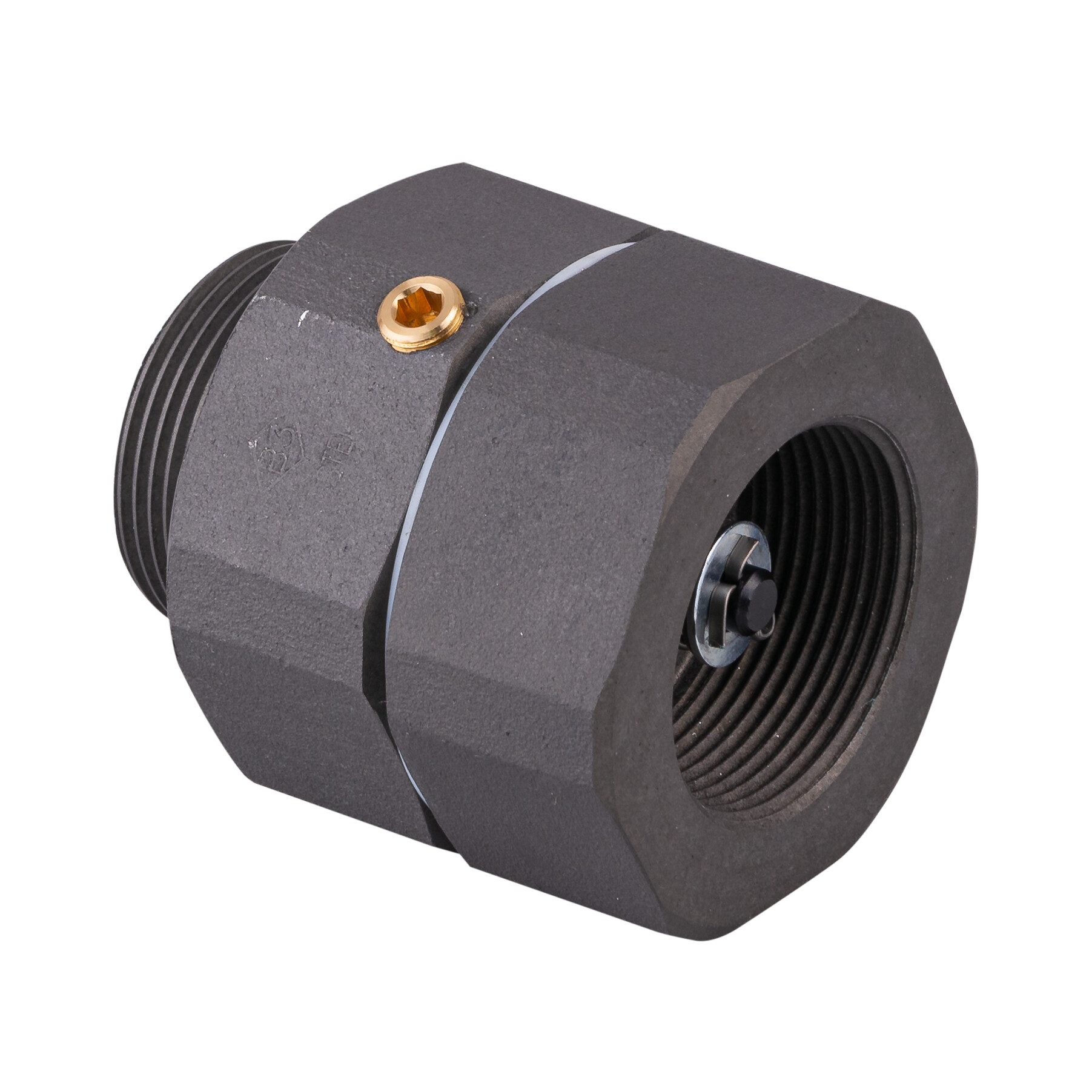

38mm aluminium threaded swivel



The SJ1.5L is an aluminium swivel incorporating a 38mm threaded mount and integral check valve to retain residual hose internal pressure (mandatory under NSC Regulations).


Features & Benefits
  • Ball bearings allow for trouble free rotation, thus eliminating thrust & hose kinking.
  • Swivel body is manufactured from lightweight aluminium, anodised for long life.
  • Swivel incorporates a check valve, to retain residual pressure in the hose. (Mandatory under NSC regulations).
  • Can be mounted via hose tail or threaded end.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Pressure
    Poppet opens at 65kPa.

    Mounting
    1½” tapered male BSP thread (outlet).
    1 ½” parallel female BSP thread (inlet).

    Materials
    -Anodised aluminium body.
    -Acetal poppet.
    -Steel ball bearings.
    -Viton sealing o-ring.
    -Stainless Steel fasteners.

    Weight
    0.55 kg.

    Operation
    The swivel incorporates a check valve, to retain residual pressure in the hose. (Mandatory under NSC regulations)

    Dismantle
    Remove cotter pin to remove poppet.
    Remove plug to release ball bearings and separate halves.

    Adjustment or Service
    None.

    Ordering Information

    SJ1.5L: Swivel 1½" straight swivel c/w hold back valve.

    Associated Equipment

    SJ032: Swivel 32mm (1 ¼") with hold back valve and ball bearings.
