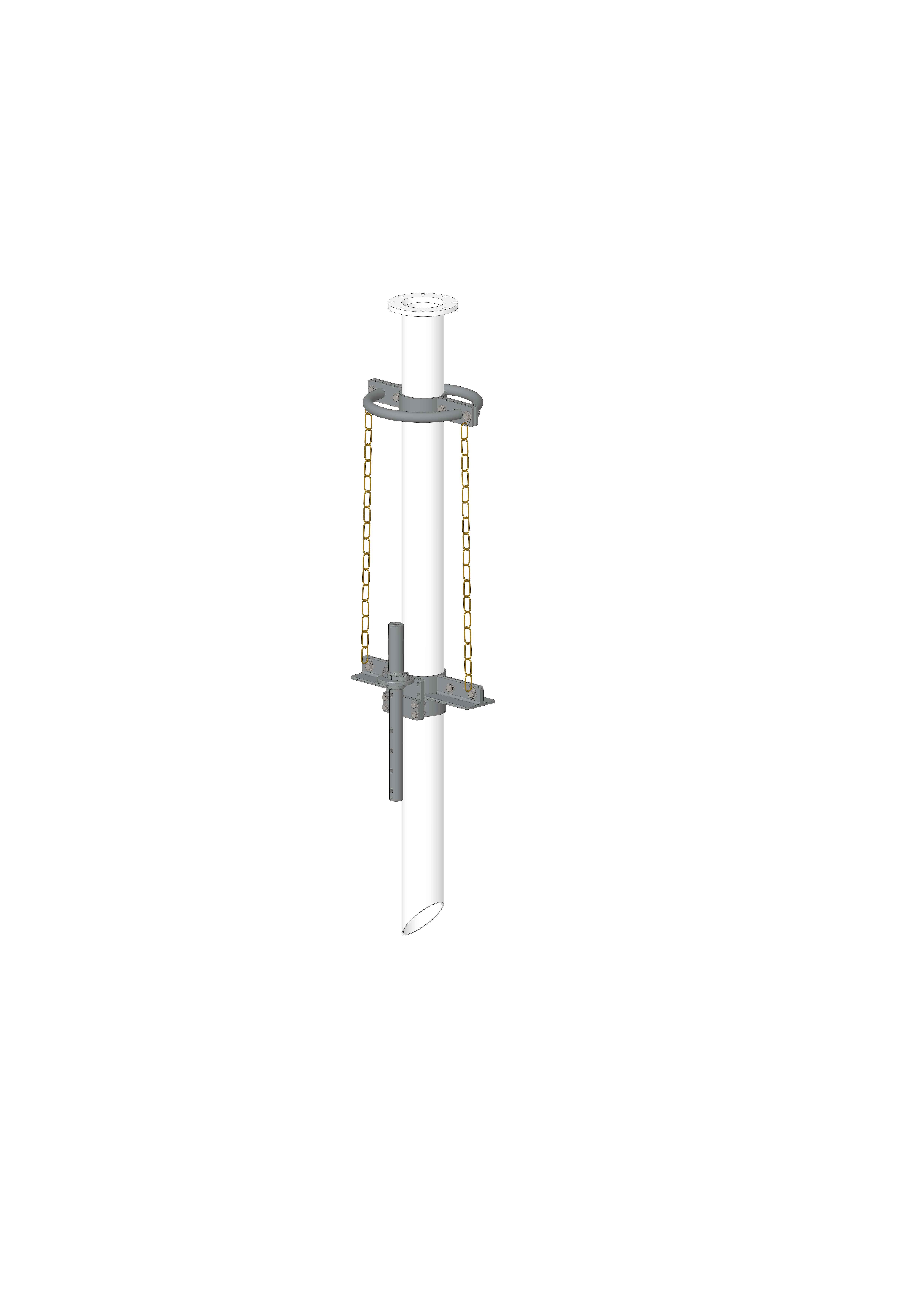

Spear Mount Overfill Sensor Assemblies



The SMS102 is a drop spear mounted overfill probe holder which is fixed to the top loading arm and is used while loading vehicles when overfill protection is required but not present on the vehicle.

The SMS102 can prevent product overflow in the event of incorrect pre-selected loading quantity.

If the overfill probe is triggered, it will send a signal to the rack monitor, which can be used to stop the loading process, preventing an overfill from occurring.

Suitable for :

Recommended products for replacement

Categories
Features & Benefits
  • Aluminium construction for a lightweight and durable design.
  • Suitable for 100mm OD drop spears.
  • Overfill equipment is permanently attached to the loading arm so it can be used on multiple vehicles.
  • Sliding design accommodates multiple tank heights.
Ordering Information

SMS102: Spear Mount Sensor Assembly (probe not included).

Associated Equipment

SINGLE PROBES

LDP202: 2 wire Aluminium Overfill Probe.

LDP205: 5 wire Aluminiun Overfill Probe.

PROBES KITS

LDP202Z: LDP202 + 80mm Al extension + Viton™️ O-ring.

LDP202XLZ: LDP202 + 222mm Al extension + Viton™️ O-ring.

LDP205Z: LDP205 + 80mm Al extension + Viton™️ O-ring.

LDP205XLZ: LDP205 + 222mm Al extension + Viton™️ O-ring.
