Single Plane Flange Swivels - VNS/LCB4 Series

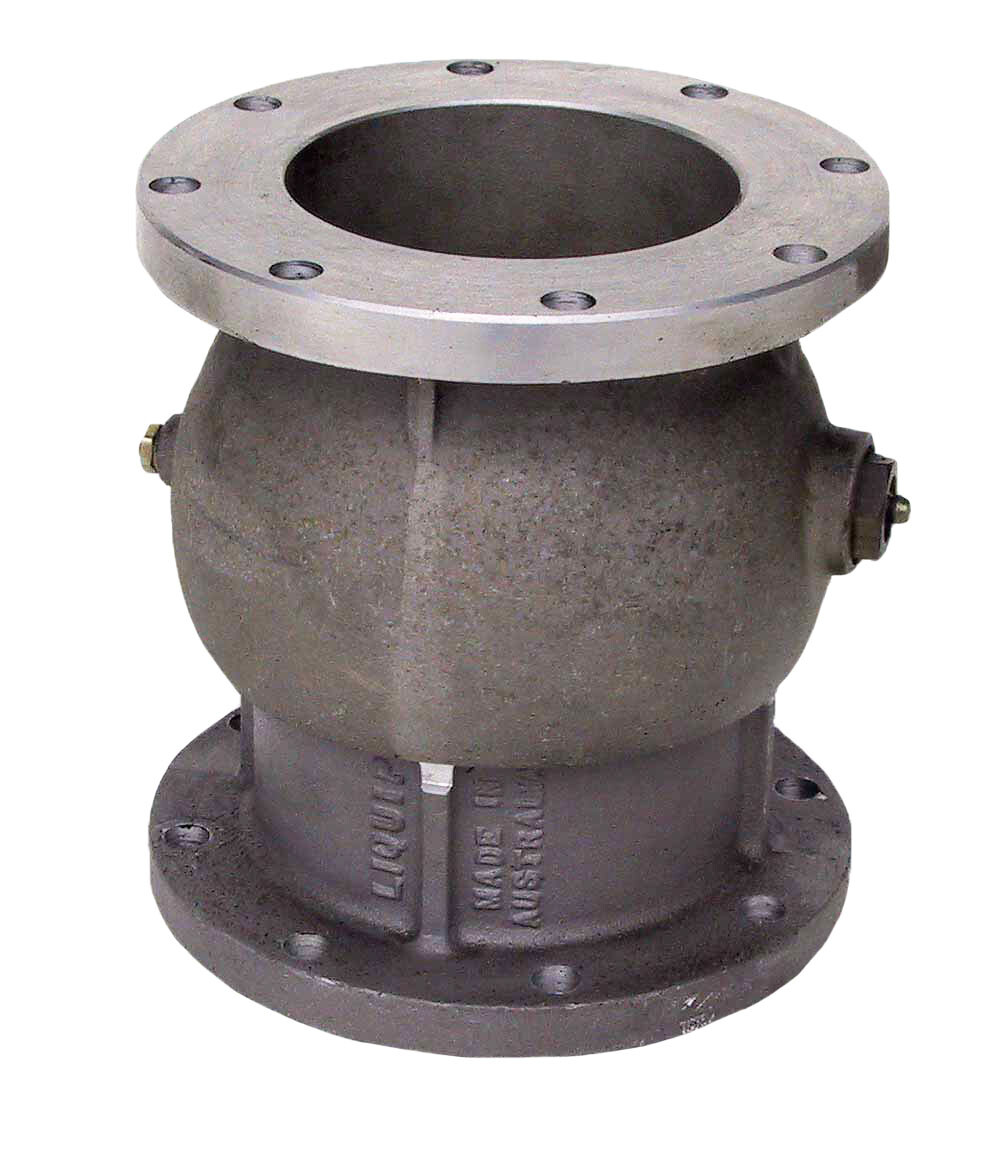

The VNS-A4 is a 100mm (4”) straight single-plane cast aluminium swivel with 4” TTMA flanged ends.

The VNS swivels are often used on loading arms instead of the coupler spool to enable rotation of the API coupler.

Features & Benefits
  • Swivels allows for 360° rotation. It may be used on any application where another plane of rotation is required.
  • Ball and needle rolling elements are incorporated into the deisgn for optimum axial and radial load bearing with minimum
    friction.
  • Liquip’s grease relief system (grease nipple one side with relief valve mounted opposite for efficient removal of old grease and debris) extends the life of the swivel by ejecting old grease and wear particles.

Technical Information

Materials
-Cast aluminium body.
-Viton seals.

Working Pressure
1,000 kPa (145 PSI).

Test Pressure
1,500 kPa (218 PSI).

Mounting
4" TTMA.

Weight
4.02kg.

Ordering Information

VNS-A4: 4” Straight Single-plane Swivel with 4” TTMA flanged ends - Aluminium.

VNS-A4AVI: Aviation spec 4” Straight Single-plane Swivel with 4” TTMA flanged ends - Aluminium.

LCB4-1: SWIVEL LOADARM BASE 4"STRAIGHT

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart

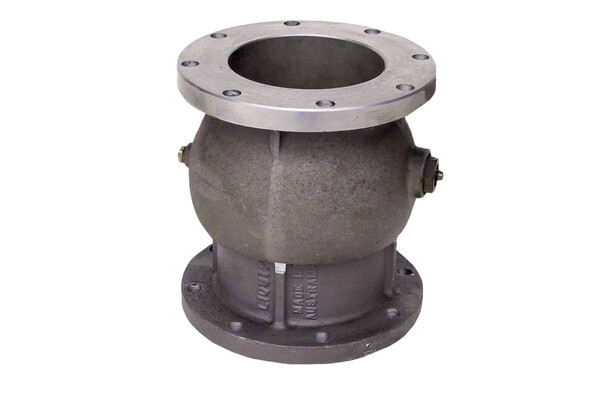

VNS-A4 4” Straight Single-plane Swivel with 4” TTMA flanged ends - Aluminium.
VNS-A4AVI Aviation spec 4” Straight Single-plane Swivel with 4” TTMA flanged ends - Aluminium.
LCB4-1 SWIVEL LOADARM BASE 4"STRAIGHT
