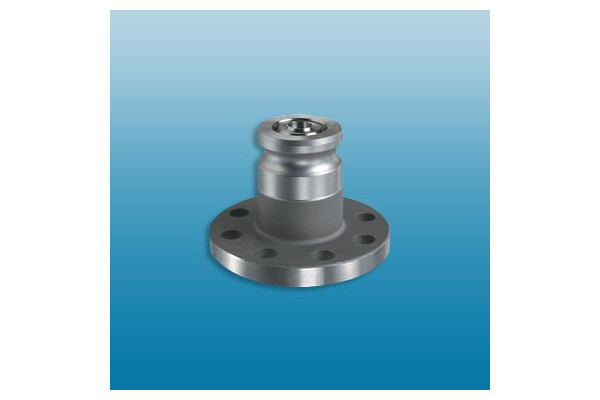

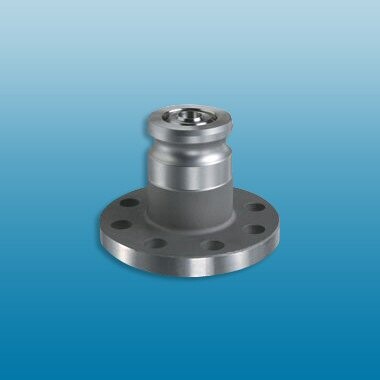

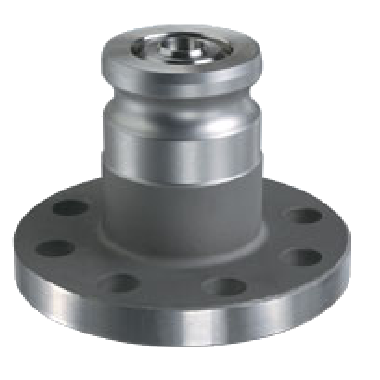

1600ANF Series Kamvalok Railcar Adaptor



The 1600ANF and 1600ANFT Series Railcar Adaptors are designed specifically for applications using an ANSI flange.

The 1600ANF Dry Disconnect Adaptors keep hazardous chemicals and vapors in-line and out of the environment. Rugged, yet quick and easy to install, the 1600ANF Series is ideal for closed-loop loading conversions.

Kamvalok® Applications

Features & Benefits
  • Available in 1 ½”, 2” & 3” Sizes.
  • Heavy-Duty Construction – Available in aluminium, and stainless steel construction (stainless steel corrosion resistance comparable to 316 Stainless Steel).
  • Wide Range of Seals Available – Buna-N, Viton, PTFE, EPDM, Chemraz®.
  • Female Threads – Can be fitted to either a male pipe end or to a hose fitting.
  • Spring-Loaded Poppet Design – Assures fast closing and a tight seal.
  • Eliminates Threads – One less leak point.
  • Spill Prevention – The poppet-actuated design can only be opened with a Kamvalok® coupling; designed to provide a tight seal when closed.
  • Easy Access Connection.
  • Connects with D2000™ Actuating Coupler or Kamvalok® 1700 Series Dry Disconnect Couplings.
  • Easy Cleaning – Can be quickly disassembled.
  • Specifically designed for applications using ANSI flanges.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Dimensions



    SIZE IN INCHES (1670ANF)

        1/2 x 2" 2" 3"
    A Overall Length 4-47/64" 4-29/32" 6-9/16"
    B Length of Body 4-13/32" 4-31/64" 6-1/8"
    C Length of Cap 2-5/64" 2-1/4" 2-5/16"
    D Diameter of Flange 6" 6" 7-1/2"
    E Diameter of Body 2-1/2" 3" 4-45/64"
    F Width of Cap 3-9/16" 4-1/16" 5-33/64"
    G Height of Chain Lug 1/2" 7/16" 1/2"
    H Length of Arms 6-1/32" 6-3/32" 8-1/8"
      Number of Bolt Holes 4 4 4
      Diameter of Bolt Holes 3/4" 3/4" 3/4"
      Diameter of Bolt Circle 4-3/4" 4-3/4" 6"
    J Max width of Arms 7-1/8" 8" 11-3/32"

    SIZE IN INCHES (1670ANFT)

        2" 3"
    A Overall Length 5-5/32" 6-13/16"
    B Length of Body 4-47/64" 6-6/8"
    C Length of Cap 2-1/4" 2-5/16"
    D Diameter of Flange 6-1/2" 8-1/4"
    E Diameter of Body 2-63/64" 4-45/64"
    F Width of Cap 4-1/16" 5-33/64"
    G Height of Chain Lug 7/16" 1/2"
    H Length of Arms 6-21/64" 8-3/8"
      Number of Bolt Holes 8 8
      Diameter of Bolt Holes 3/4" 7/8"
      Diameter of Bolt Circle 5" 6-5/8"
    J Max width of Arms 8-9/32" 11-3/32"

    Repair Kits

    coming soon

    Parts Breakdown

    coming soon

    Temperature/Pressure Chart

    coming soon

    Flow Chart

    coming soon

    Temperature Chart

    coming soon

    Kamvalok Operation

    Approvals

    AAR Number Description
    E129504 1600AN Series Kamvalok Adpater – Threaded
    E129505 1600ANF Series Kamvalok Adapter – Flanged
    E129507 634B/733DCL Series Kamlok/Autolok Dust Caps



    CRN Number Region Description
    OA4911.52 Alberta 1.5”, 2”, 3” Aluminum and SST Kamvalok
    OA4911.5R1 Ontario 1.5”, 2”, 3” Aluminum and SST Kamvalok

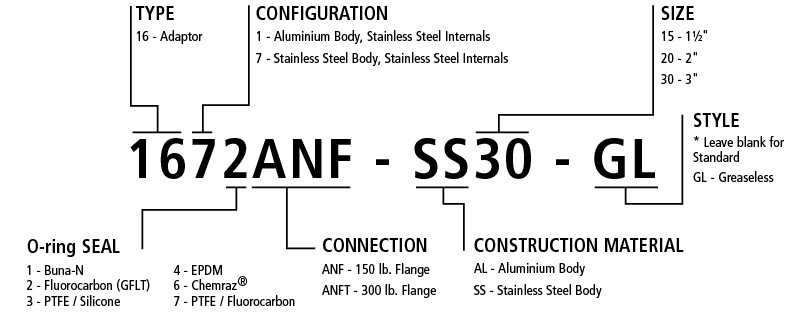

    Ordering Information

    Common Models
    1672ANF-SS20: 2" Kamvalok Adaptor, SST, Viton, 150 ANSI Flange.
    1612ANF-AL30: 3" Kamvalok Adaptor, Aluminium, Viton, 150 ANSI Flange.

    Full Range
