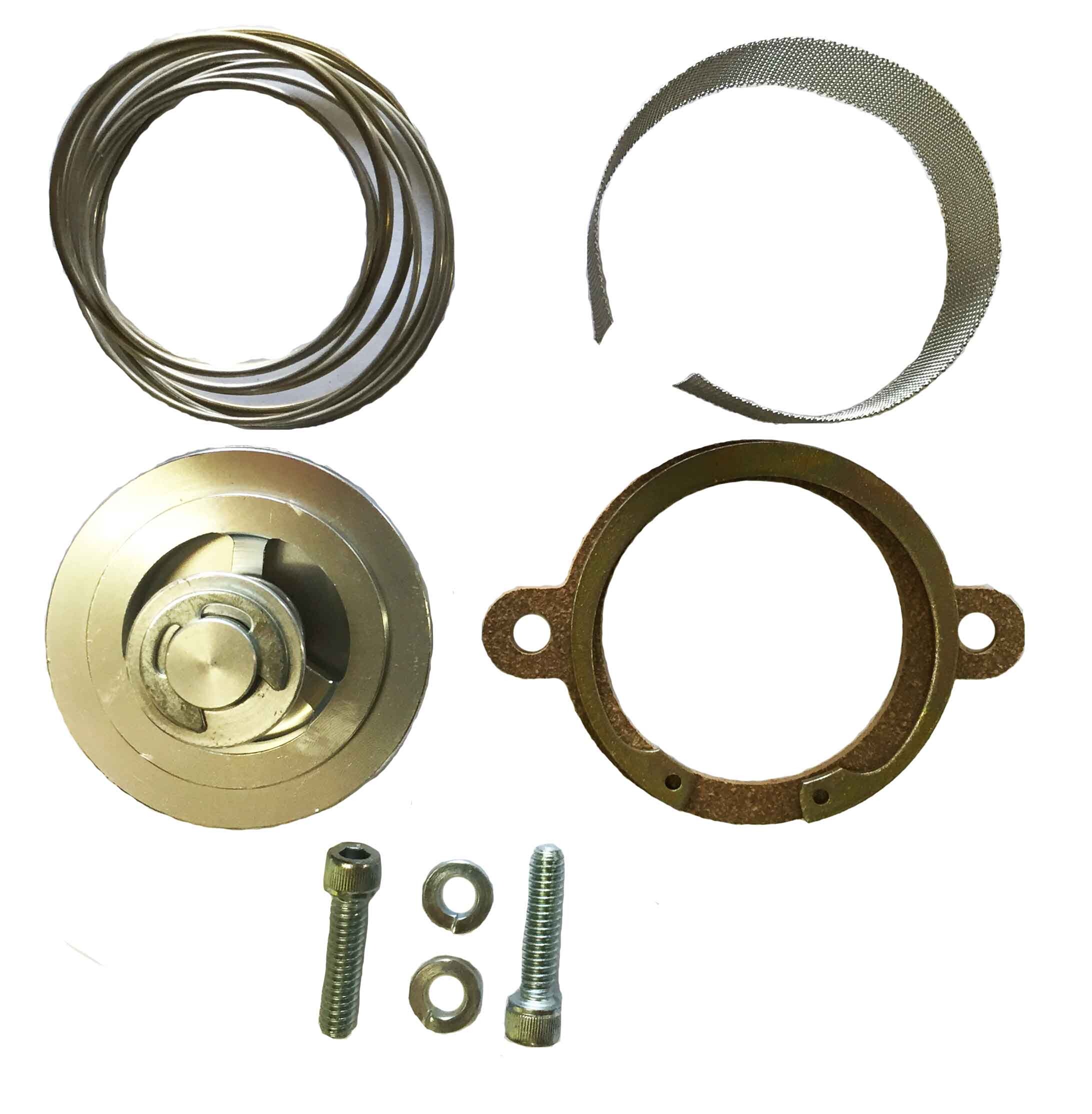

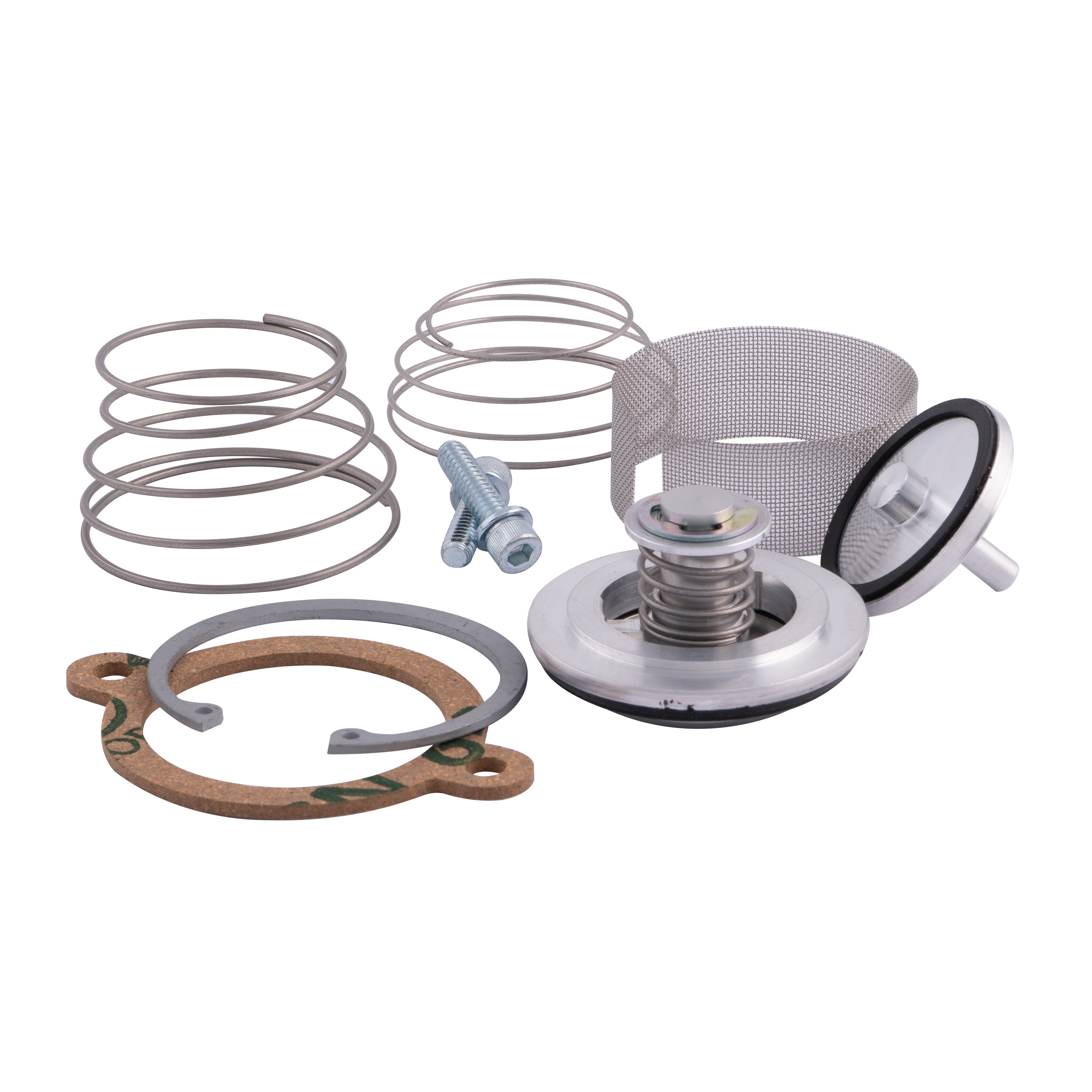

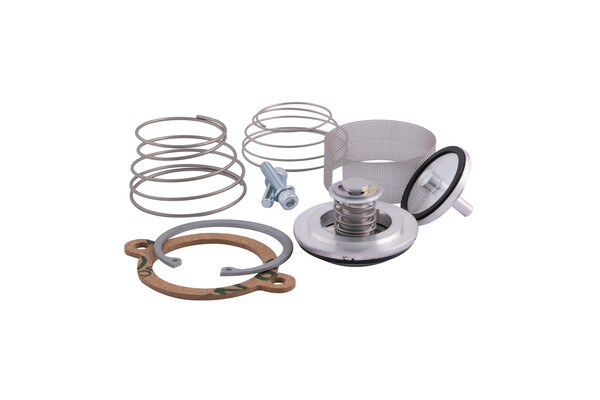

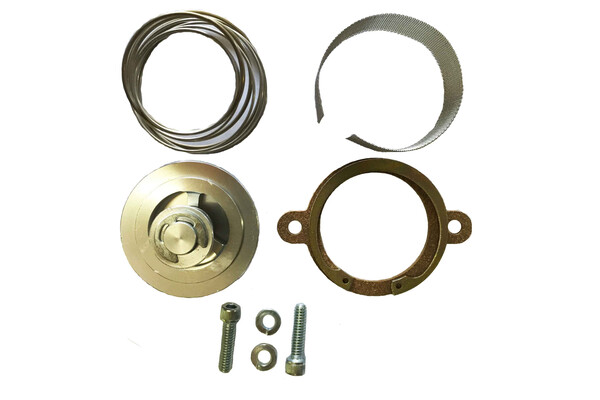

PVV Repair Kits



Liquip offer a Vapour Vent Repair Kit for PVV104 to ensure users are able to repair and rebuild their PVV104 every 2½ years in line with Australian Standards.


Recommended products for replacement

    Technical Information

    PVV104 SERIES PRESSURE/VACUUM VENT MOUNTING INSTRUCTIONS

    Liquip’s PVV104 series vents are supplied separately to VOH series manholes to allow for easier hydro testing by the customer. After testing they need to be mounted by following the instructions below.

    1. Open the emergency vent lid by lifting the handle then the bridge to provide access to underside of lid.
    2. Remove PVV assembly (and all loose parts) from bag and insert cylindrical gauze into dome shaped indentation as shown.
    3. Insert ball into PVV vent and put gasket on the sealing face and mate it to the sealing face on the underside of the lid.
    4. Insert capscrew through spring washer and then through casting and screw assembly onto lid – repeat for other side.
    5. Tighten capscrews to a torque of 7.2Nm (5.6ft lbs).
    6. Open and close lid a couple of times to make sure ball is free to move.
    Ordering Information

    PVVREPKIT: Repair kit for PVV104.

    PVVREPKIT-M: Repair kit for PVV104 (metric).

    Associated Equipment

    PVV104: PV vent suitable for Australia/NZ.

    PVV104U: PV vent suitable for Rest of World.

    PVV104M: PV vent suitable for Australia/NZ (metric).

    PVV104UM: PV vent suitable for Rest of World (metric).

    PVV104VG: PV vent (PVV104 c/w Klinger gasket) suitable for Australia/NZ.

    PVV104VGM: PV vent (PVV104 c/w Klinger gasket) suitable for Australia/NZ (metric).

    PVV104Z: PVV104 Kit suitable for use for SH series swing hatches or flange mounting c/w NBR Cork gasket.

    PVV104VGZ: PVV104VG Kit suitable for use for SH series swing hatches or flange mounting c/w Klinger gasket.

    PVV104VGMZ: PVV104VGM Kit suitable for use for SH series swing hatches or flange mounting c/w Klinger gasket.
