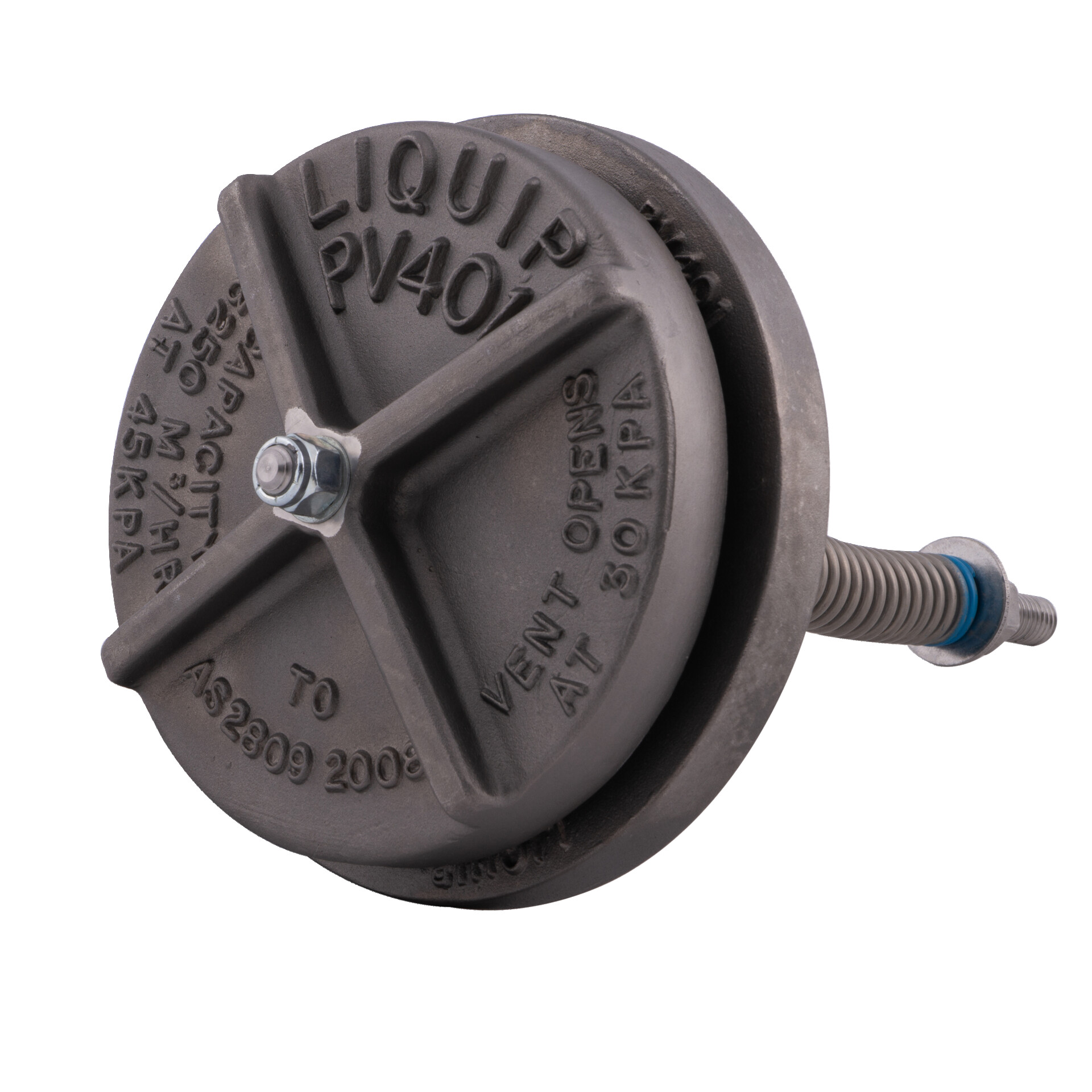

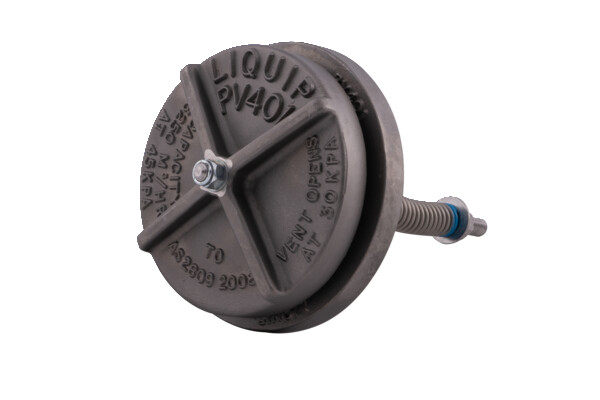

PV401 Series



Liquip’s PV401 Series of pressure vents are often used on storage tank and limit excess pressure within the tank to 30 kPa max.

When welded into tank shell, a Ø100mm opening is held closed by a spring within the tank.

When the pressure reaches a pre-determined level (typically 30kPa), a poppet opens and vents the excess pressure to atmosphere. The vent closes and seals at pressures lower than 30 kPa.

PV401 series is available in Aluminium or Stainless Steel cover and Stainless flange. They can be fitted with a choice of Buna nitrile, Viton of Teflon encapsulated O-rings.





Features & Benefits
  • Limits excess pressure within a tank to 30kPa max.
  • Range of materials and seals available.
  • Simple and reliable emergency pressure relief venting.
  • Special opening pressures can be supplied on request.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Opening Pressure
    Standard setting vent opens at 30kPa.
    BRC model opens at 185 kPa.

    Capacity
    3250m³/hr at a pressure of 45kPa.

    Mounting
    Weld in flange.

    Standards
    Conforms to AS2809-2008. (Does not apply to BRC models).

    Ordering Information

    PV401-AS-V: Aluminium cover, Stainless Steel 316 flange, Viton O-ring.

    PV401-SS-V: Stainless Steel 316 cover, Stainless Steel 316 flange, Viton O-ring.

    PV401-SST316: Stainless Steel 316 cover, Stainless Steel 316 flange, Teflon encapsulated O-ring.

    PV401-AS-BRC:Aluminium cover, Stainless Steel flange with 185 kPa opening pressure for Rail car.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    PV401-AS-BRC Aluminium cover, Stainless Steel flange with 185 kPa opening pressure for Rail car.
    PV401-AS-V Aluminium cover, Stainless Steel 316 flange, Viton O-ring.
    PV401-SS-V Stainless Steel 316 cover, Stainless Steel 316 flange, Viton O-ring.
    PV401-SST316 Stainless Steel 316 cover, Stainless Steel 316 flange, Teflon encapsulated O-ring.
