Hatch Weather Covers - HWC301 Series



Liquip's hatch weather covers mount onto the manhole and protect against the ingress of water into compartments and deter unauthorised access to the compartment hatches.

Features & Benefits
  • Composite Anti Static material.
  • Simple stainless steel split pins allow for easy removal for maintenance.
  • Quick release rubber clamp allows for quick opening and closing of the cover.
  • Cover can be cut out for the vapour vent (AVV vent) to connect to the vapour coaming.
  • Compatible with the VOH41x series of hatches

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

Technical Information

Operation
Liquip hatch weather covers are hinged on one end with an over-centre rubber clamp latch on the opposite end.

To allow full access to the hatch cover, unhook the clamp and lift the cover.

Adjustment or Service
Latching end is self-centring.

Materials
Cover - Composite Anti Static material.
Clampband & fasteners - Zinc plated mild steel.
Hinge bracket on cover - Cast aluminium.

Mounting
HWC301 has an integrated clampband which replaces the standard clampband to secure the VOH hatch.

Weight
2.6 kg.

Ordering Information

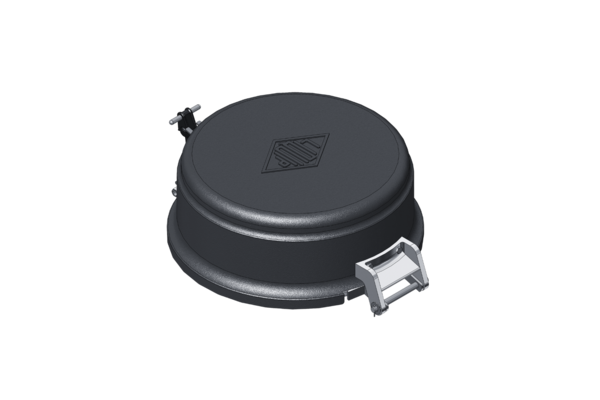

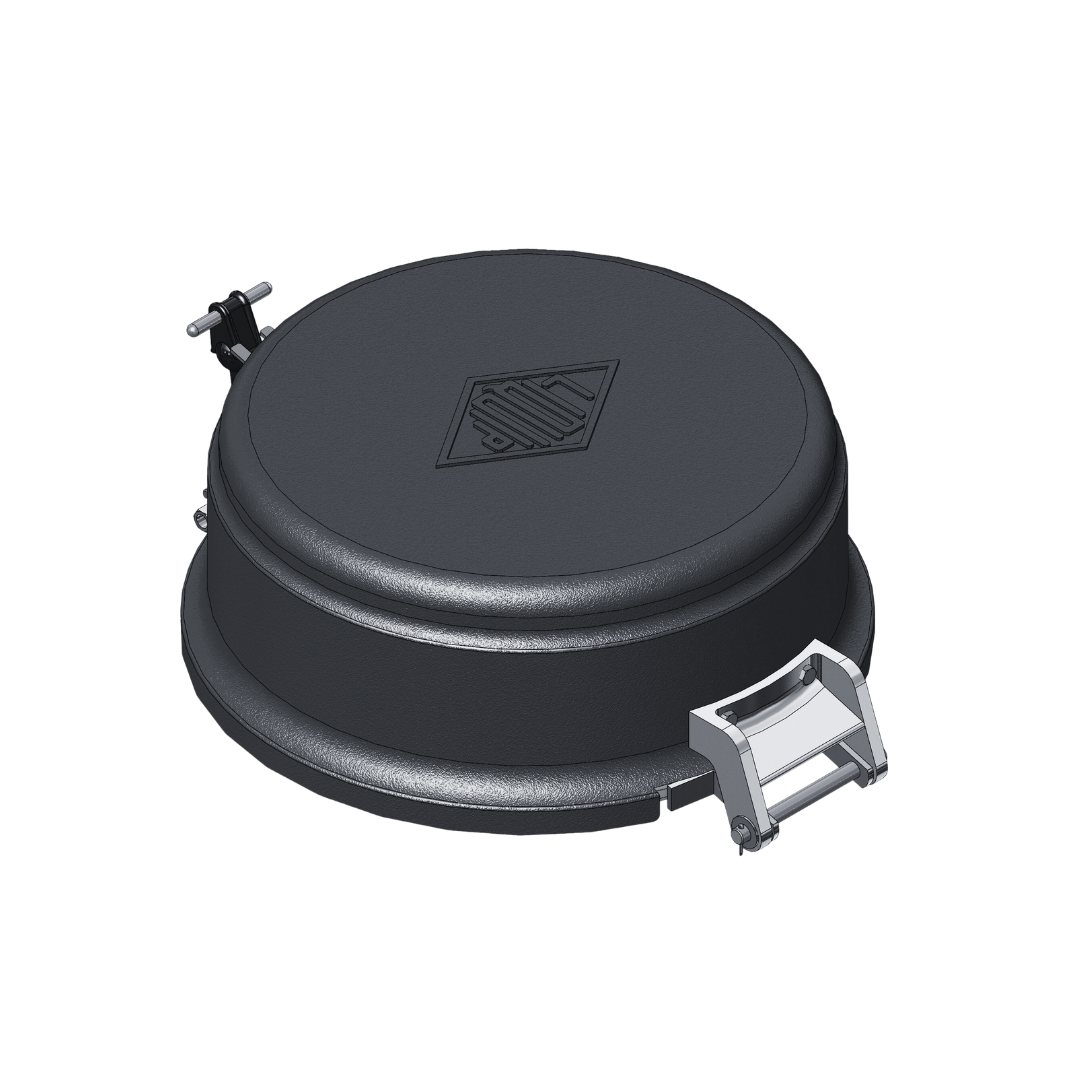

HWC301: Black Hatch Weather Cover for VOH400 Manholes.

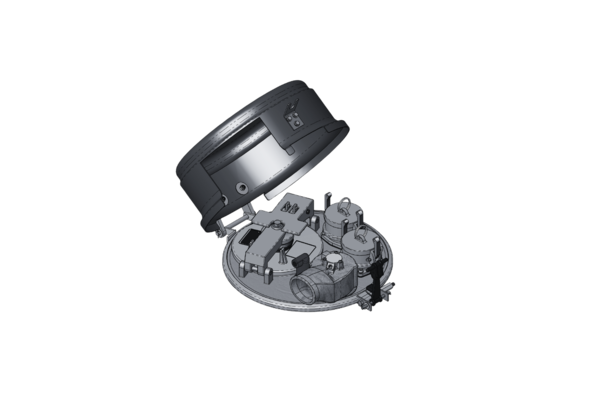

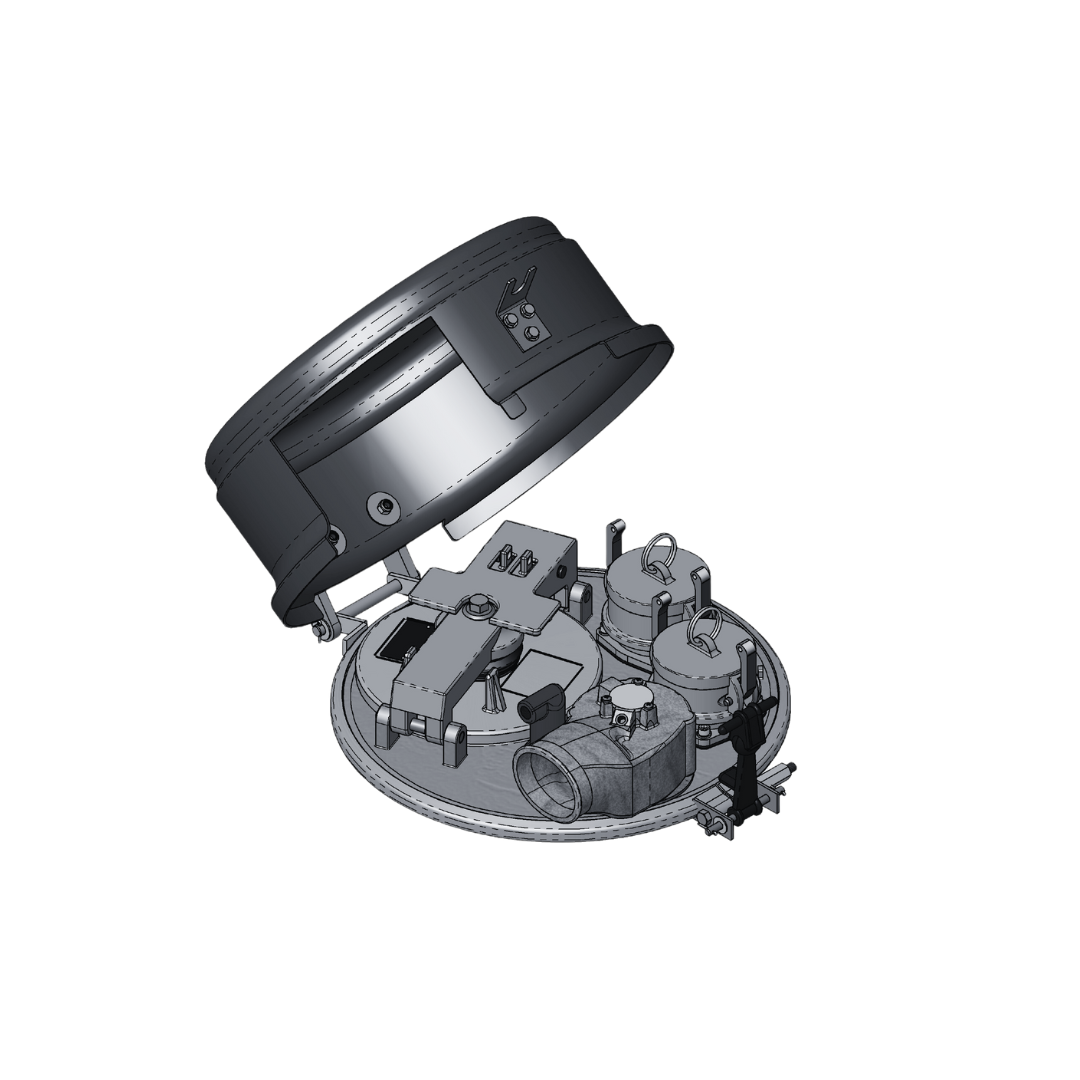

HWC301C: Black Hatch Weather Cover for VOH400 Manholes with AVV cut out.

Associated Equipment

VOH4116A8N0: Aluminium manhole cover assembly (metric).

VOH4116A8A0Z: VOH4116A8N0 comes with clamp band assembly and PVV104 (vapour vent).

VOH4116A8N0Z: VOH4116A8N0 comes with clamp band assembly and PVV blanking plate.

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
HWC301 Black Hatch Weather Cover for VOH400 Manholes. (Previously Green)
HWC301C Black Hatch Weather Cover for VOH400 Manholes with AVV cut out. (Previously Green). (hatch and accessories not included).

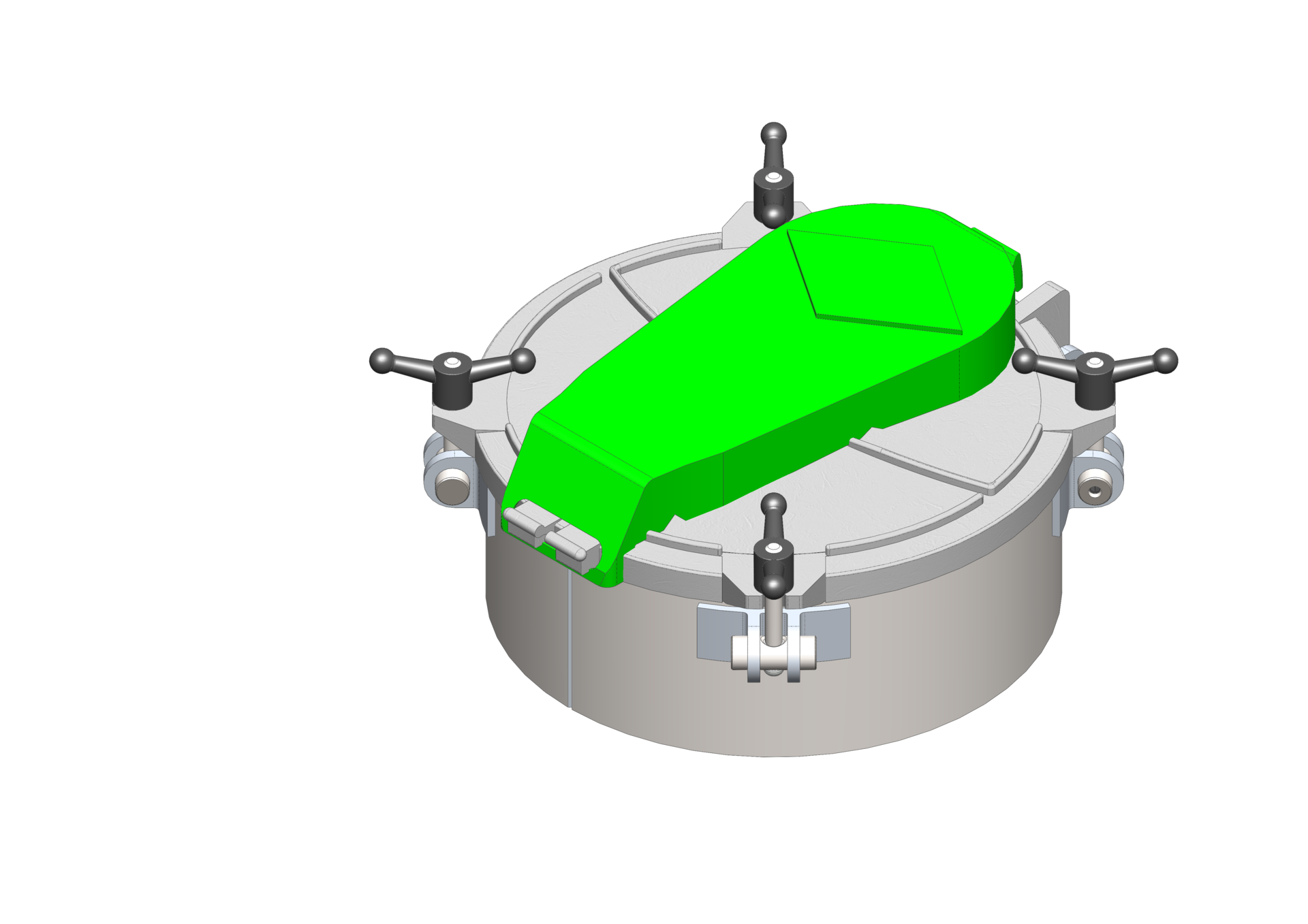

HWC304Z Hatch Weather Cover Assembly suit SH30x complete with spring. (hatch and accessories not included).
