Dip & Fill Tubes



DIP TUBES
Dip Tubes are manufactured from aluminium extrusion with a Stainless Steel wire gauze (600μm aperture). This mesh gauze extends the full length of the tube.

FILL TUBES

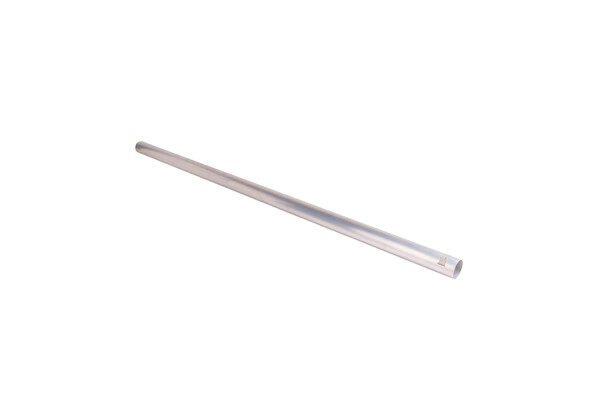

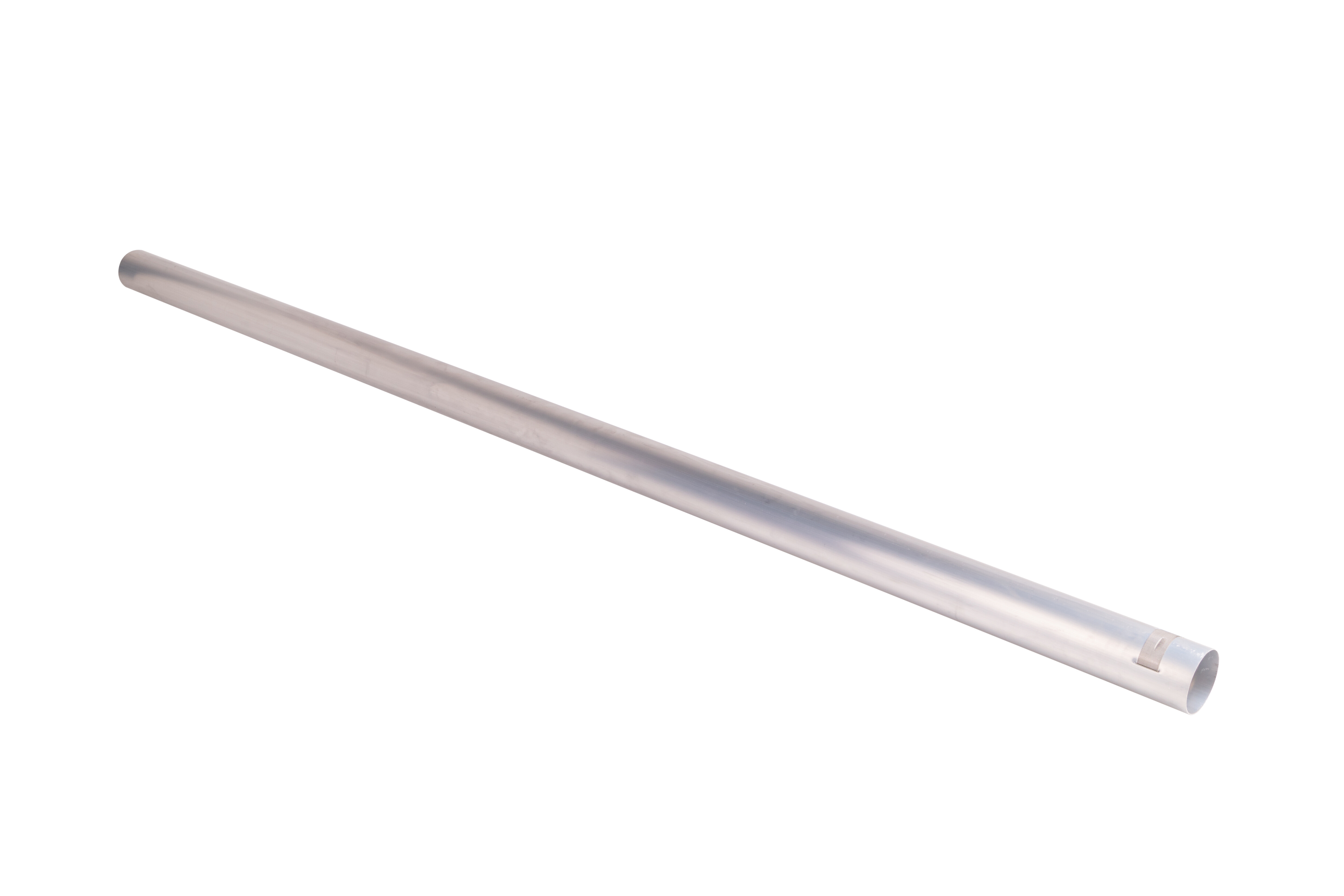

Fill Tubes are manufactured from aluminium with solid sides to prevent splashing while filling is taking place. Fill tubes have a Stainless Steel wire gauze (600μm aperture) shroud included as a venting window for pressure equalisation.




Features & Benefits
  • Both the FTB3-2200 and DTS3-2200 are compliant with AS2809.2-2020.
  • Bottom end of fill tube can be cut at approximately 45o angle and the flow of liquid from it can be directed away from any objects which may cause spray.
  • Gauze on both the dip tube and fill tube is constructed from stainless steel and meets the aperture requirements of AS2809.2-2020.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information

    FTB3-2200: Fill Tube 80mm x 2200mm.

    DTS3-2200: Dip Tube 80mm x 2200mm.



    Associated Equipment

    DTA80: Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube (Imperial).

    FTA80: Fill tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube (Imperial).

    DTA80M: Dip Tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm dip tube (Metriic).

    FTA80M: Fill tube adaptor with through hole square flanges and 74.5mm diameter to suit standard 80mm fill tube (Metric).

    DTA80-3: Dip Tube adaptor weld in (Aluminium).

    FTA80-3: Fill Tube adaptor weld in (Aluminium).

    DP3L: Dual dip & fill flange (BSW).

    DP3.0-1A: Flange. Half dip & fill (BSW).

    DP3M-1: Flange M/S single weld dip & fill (BSW).

    DP3TC: Flange dual dip & fill to suit TS3x3 tube clamps (metric).
