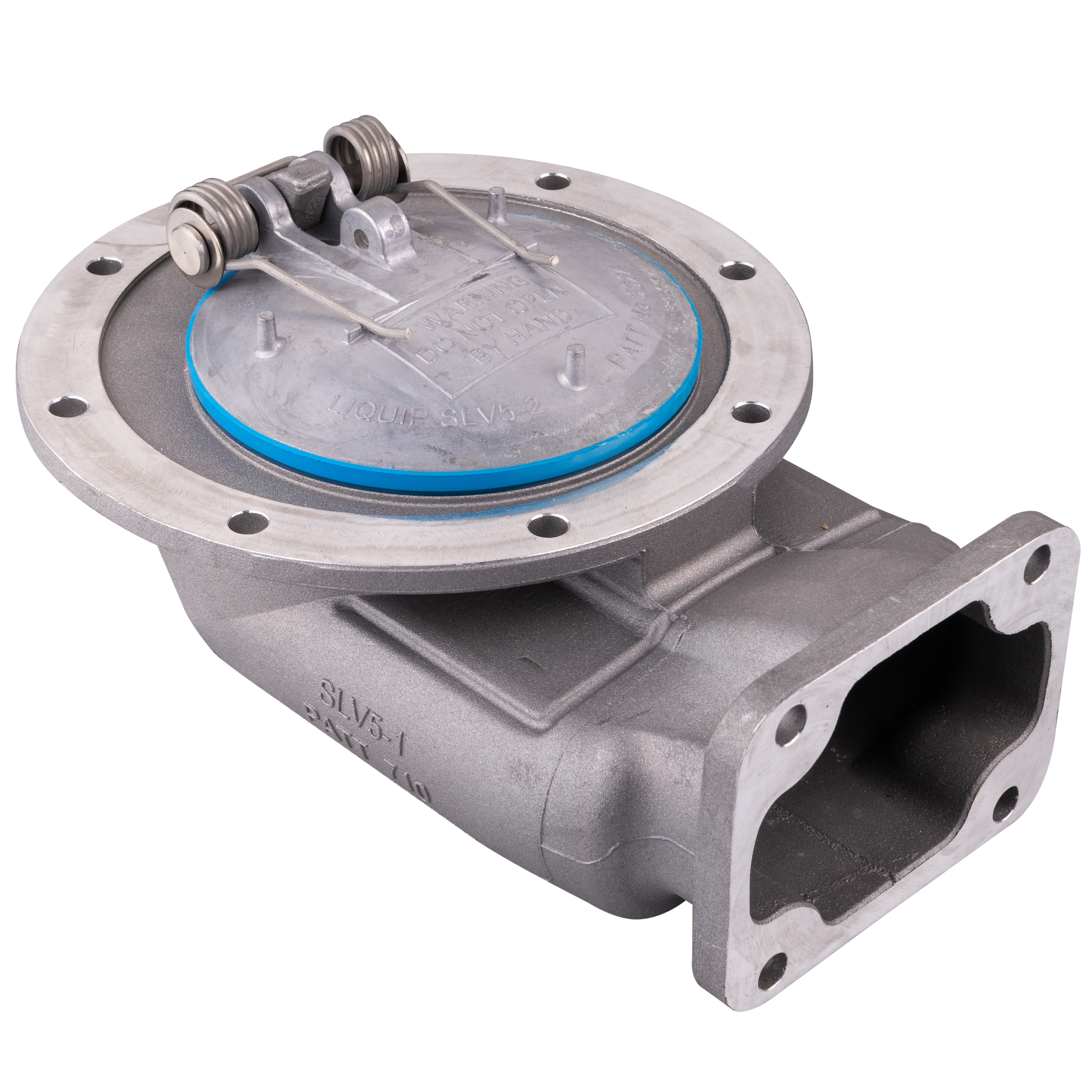

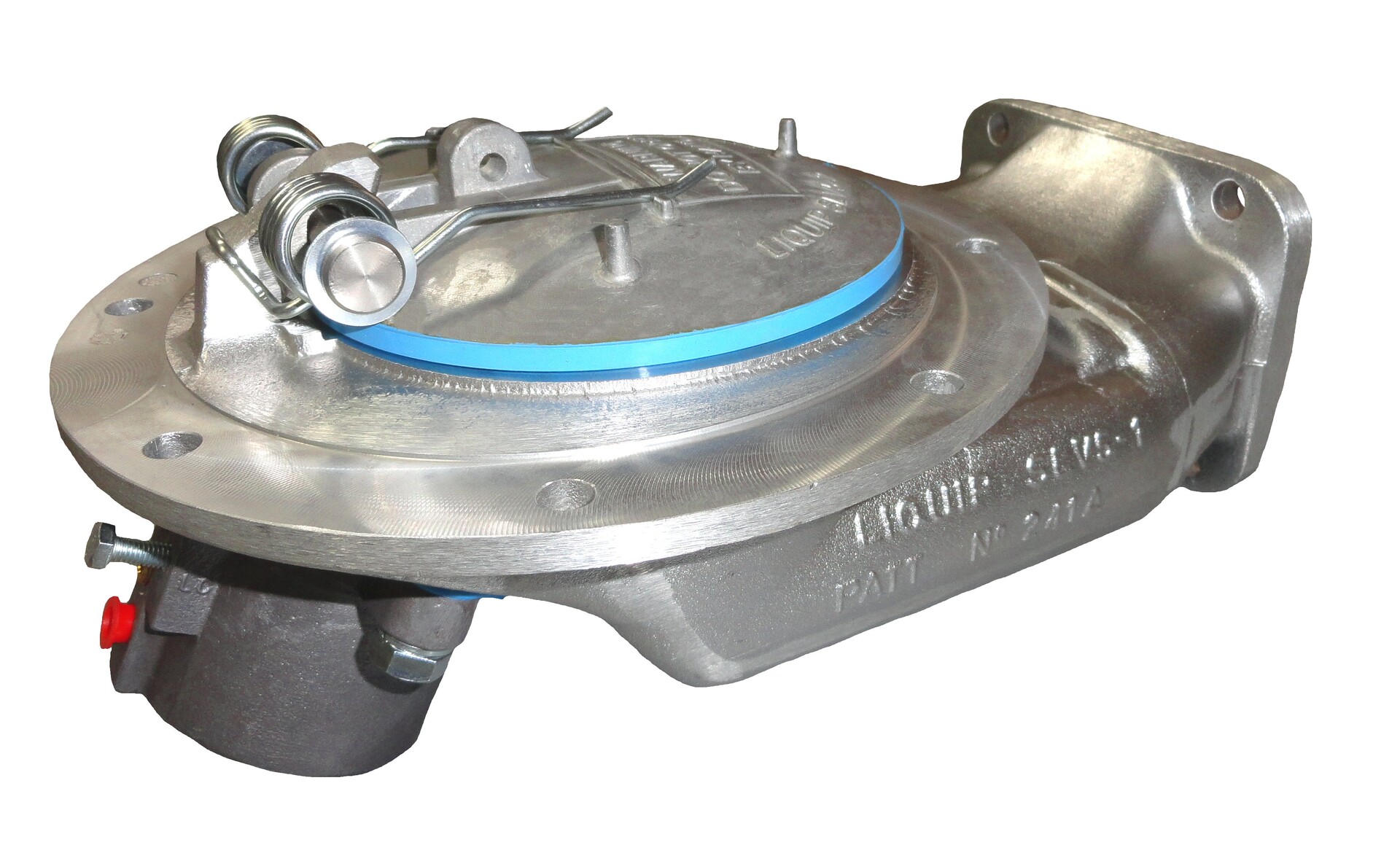

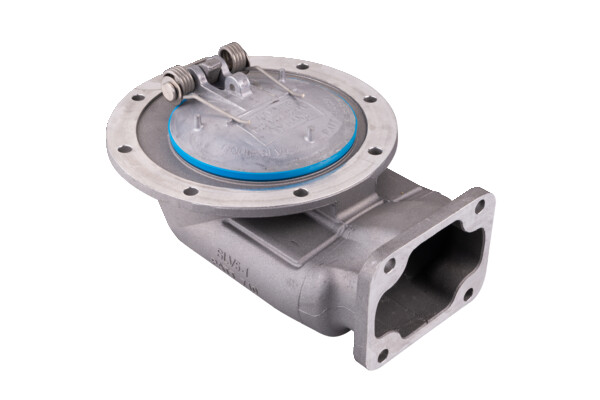

SLV5 Air Operated Bottom Valve



The SLV5-ARO pneumatic and sequential emergency valve incorporates the latest technical advancements to ensure high flow rates and the safe loading and discharge of road tankers.

The SLV-ARO has a specially designed poppet that provides a reduction in static electricity for fast and safe operation at high flow rates.

This valve is installed in the compartment floor and controls the flow of product from each compartment. It also incorporates a shear groove which is designed to break below the valve and retain the compartment contents in the event of accidental damage to the wet legs or API adaptors.

The 125mm diameter poppet has a concave design which operates as a deflector reducing splash, surge and static build up during loading and similarly during discharge. The unique design results in nil vortexing of the product meaning faster and safer loading and unloading.

Liquip can supply SLV5 series foot valves as single units or in "Kits". A Kit is a part that combined two or more parts e.g. a SLV5 foot valves supplied with mating Tank flange and pipe flange gaskets. Please see ordering information tab for further detail.

Features & Benefits
  • Incorporates the latest technical advancements to ensure fast and safe loading and discharge of road tankers.
  • A unique hinged poppet has a concave design which operates as a splash deflector, eliminating vortexing and reducing splash, surge and static build up during loading and unloading.
  • The valve is installed in the compartment floor and controls the flow of product from each compartment.
  • Incorporates a shear groove that is designed to retain the compartment contents in the event of accidental damage to the outlet piping or API adaptors.
  • Minimal pressure drop across the system.
  • Can be operated pneumatically or manually.
  • Faster flow rates and a reduction in static electricity for improved and safer operation.

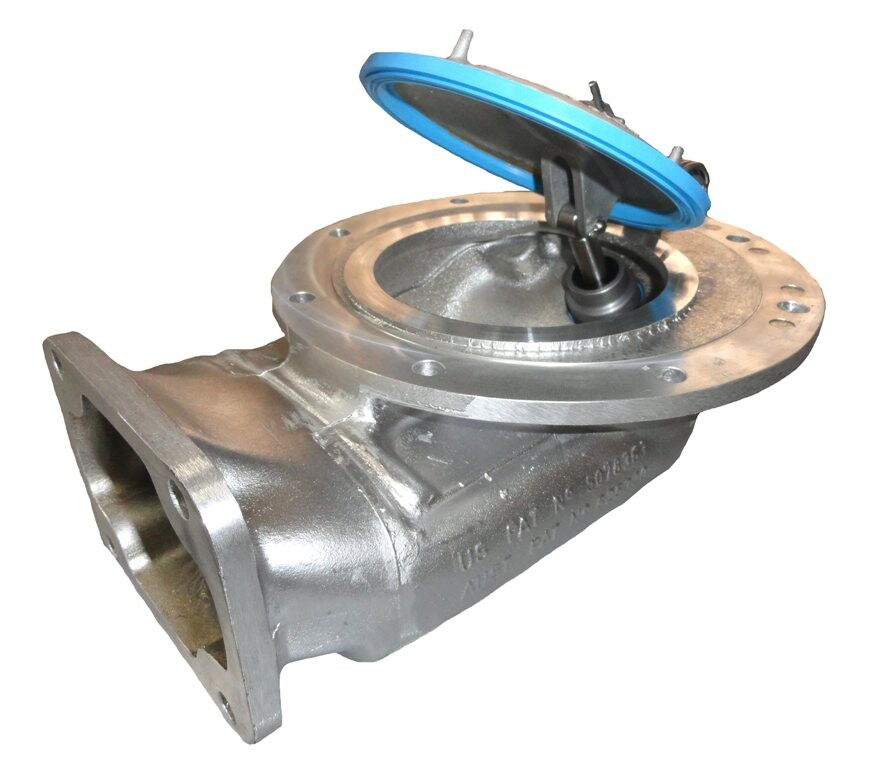

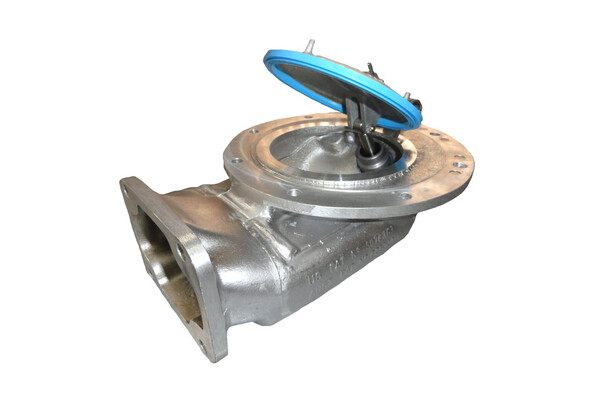

  • Hinged poppet design gives minimum height, so valve requires very little clearance to drop out for servicing.
  • Specially bonded lip seal design for superior sealing and extended life.
  • Conforms with AS2809 requirements.
  • ARO (air operator assembly) is easily removed and replaced.
  • ARO supplied with a jacking screw to allow manual partial opening in the event of air pressure loss.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Periodic Service
    No routine maintenance required.  Check sealing of valve as required by authorities.

    Dismantle
    Air operator assembly is easily removable & replaceable, being a self-contained externally mounted assembly.
    To use jacking screw, remove from stored position & screw into base of the ARO100.

    Pressure Rating
    Nominal Ø100mm flow area except poppet is Ø125mm bore for minimal pressure drop. Needs a minimum of 350 kPa of air pressure.

    Air Consumption
    Consumption 1.0L free air per stroke.

    Mounting
    Bolted to sump or tank flange at the bottom of tank 8 holes Ø10 on a 210 PCD.

    Weight
    3.6kg.

    Materials
    Aluminium body.  Stainless steel main spindle/springs. Viton main seal bonded to aluminium poppet. Aluminium air ram body with acetal piston and Viton seals.



    Ordering Information

    SLV5-ARO: Air Operated Internal Valve with Bonded Viton A seals (suits aviation fuels).

    SLV5-AROVG: Air Operated Internal Valve with Bonded Viton GFLT seal.

    SLV5-AROZ: SLV5-ARO with Cork Gaskets (tank and pipe flange).

    SLV5-AROVZ: SLV5-ARO with Viton A Gaskets (tank [3mm] and pipe [3mm] flange).

    SLV5-AROTVZ: SLV5-ARO with Viton A Gaskets (tank [1.6mm] and pipe [3mm] flange).

    SLV5-AROVGZ: SLV5-AROVG with Klinger Gaskets (tank and pipe flange).


    Associated Equipment

    SLV5-AROC: Air Operated Internal Valve with Bonded FFKM seal - Chemical.

    ARO100: Air Ram Assembly for SLV5 series footvalve (Viton A).

    ARO100C: Chemical Air Ram Assembly for SLV5-AROC footvalve (FFKM).

    ARO100VG: Air Ram Assembly for SLV5-AROC footvalve (Viton GFLT).

    ACL405RGAT: Air operated camlift (Aluminium handle and body, Teflon seals & stainless steel fasteners).

    CL402RG: Manual top operator (Aluminium handle and body, Viton A O-ring and Z/P steel internals).

    LW410: Stainless Steel Lifting Wire Kit.

    SLV5-13A:  Aluminium SLV5 Tank Flange c/w metric studs & nuts.

    SLV5-13M:  Mild Steel SLV5 Tank Flange c/w metric studs & nuts.

    SLV5-47: 4" Mild Steel Adaptor Outlet to suit 4" steel tube.

    SLV5-110: Aluminium Adaptor Outlet to suit 100mm tube.

    SLV5-114: Aluminium Adaptor Outlet to suit 4" pipe.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart

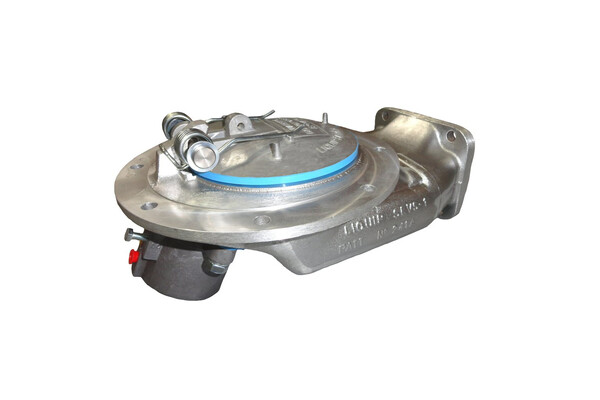

    SLV5-ARO Air Operated Internal Valve with Bonded Viton A seals (suits aviation fuels).

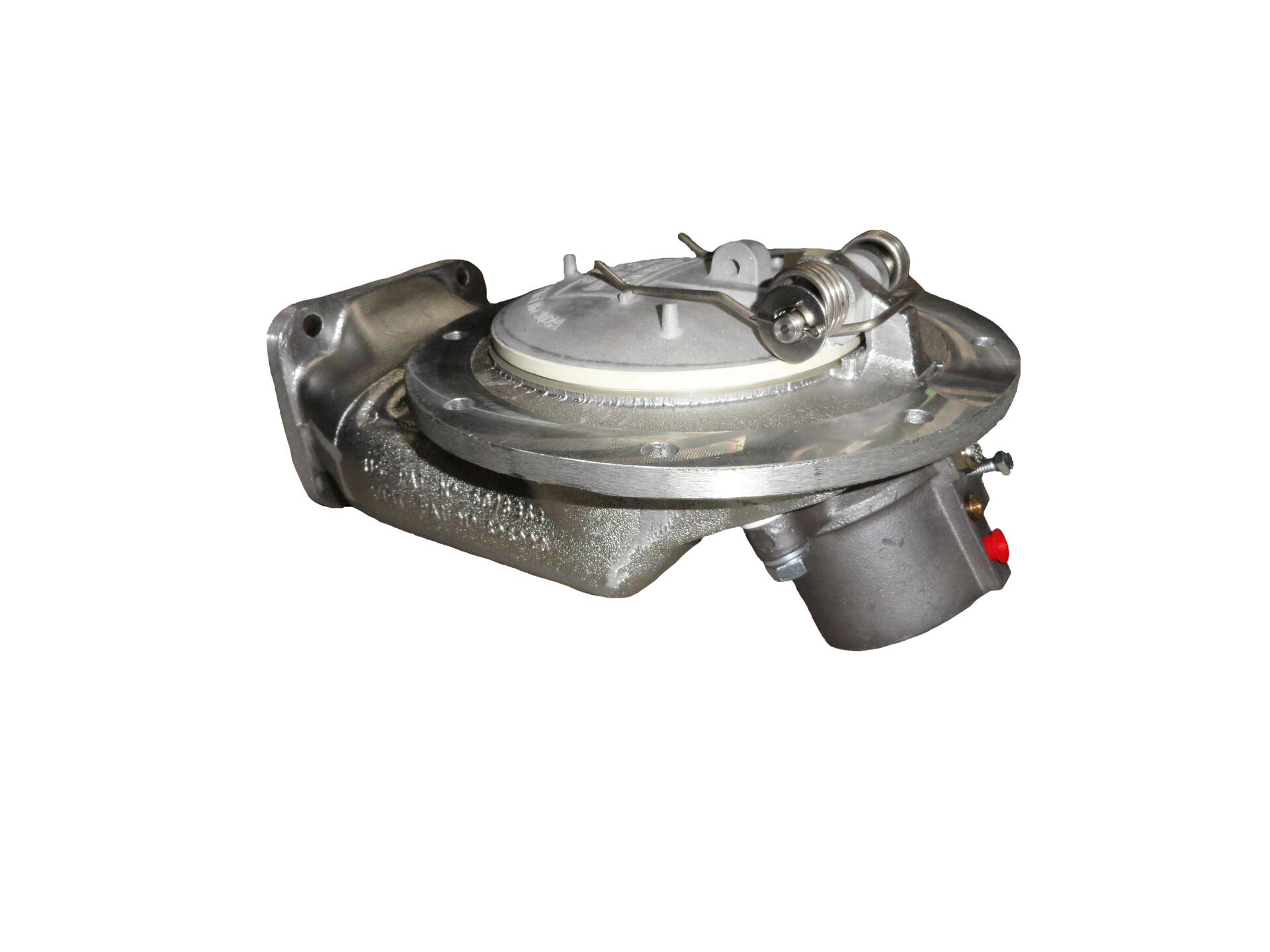

    SLV5-AROC Air Operated Internal Valve with Bonded FFKM seal - Chemical.
