Adaptor Outlets



Liquip offers a range of aluminium adaptors to provide a simple connection of the delivery pipe to the SLV5 Series emergency valves.

Outlet adaptors provide a cost effective and lightweight flanged connection of the delivery pipe (wet leg) to the emergency valve.




Recommended products for replacement

    Technical Information

    Pressure
    100mm bore all through for minimum pressure drop.

    Mild Steel adaptors
    Mild Steel pipe is welded to the tapered side of the flange and the flange then bolted securely to the outlet of the emergency valve providing a clean efficient delivery/loading system.

    Aluminium adaptors
    Aluminium pipe is welded to the outlet side of the flange and the flange then bolted securely to the outlet of the emergency valve providing a clean efficient delivery/loading system.

    Ordering Information

    Mild Steel adaptors

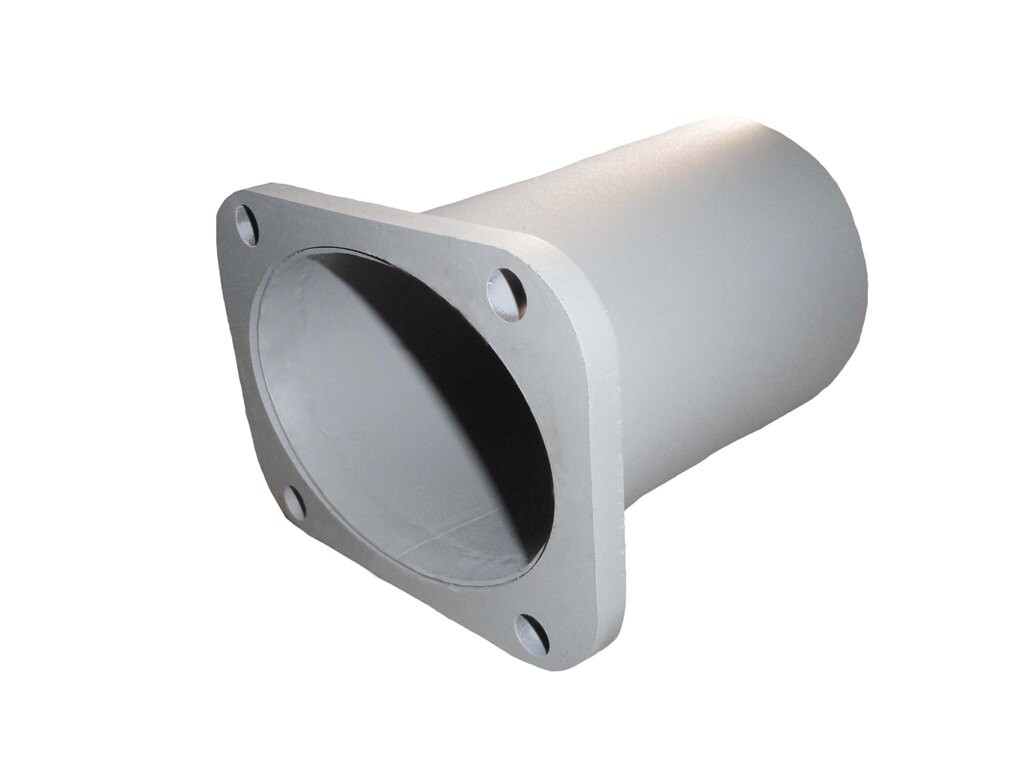

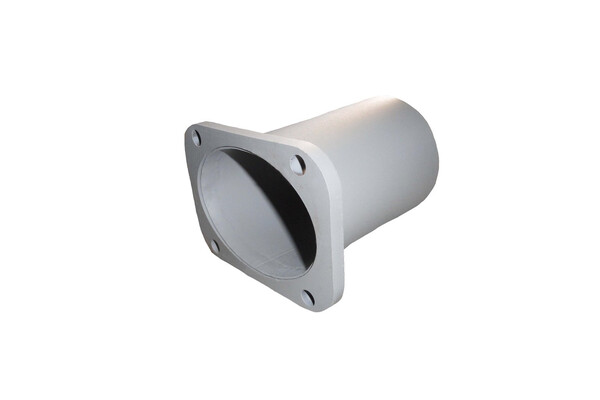

    SLV5-47: 4" Mild Steel Adaptor Outlet to suit 4" Steel Tube.

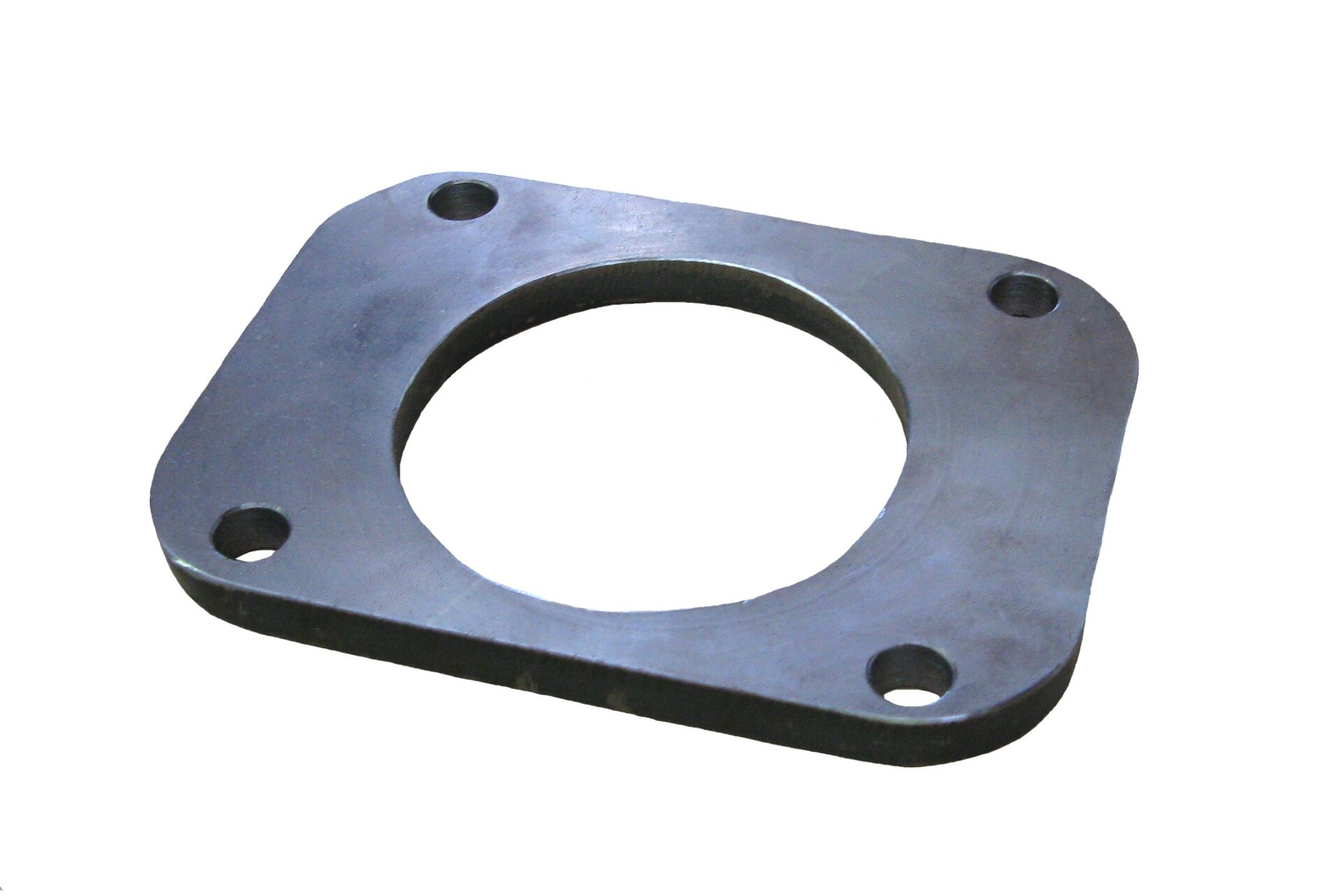

    SLV5-43M: Mild Steel 80mm outlet flange adaptor.

    Aluminium adaptors

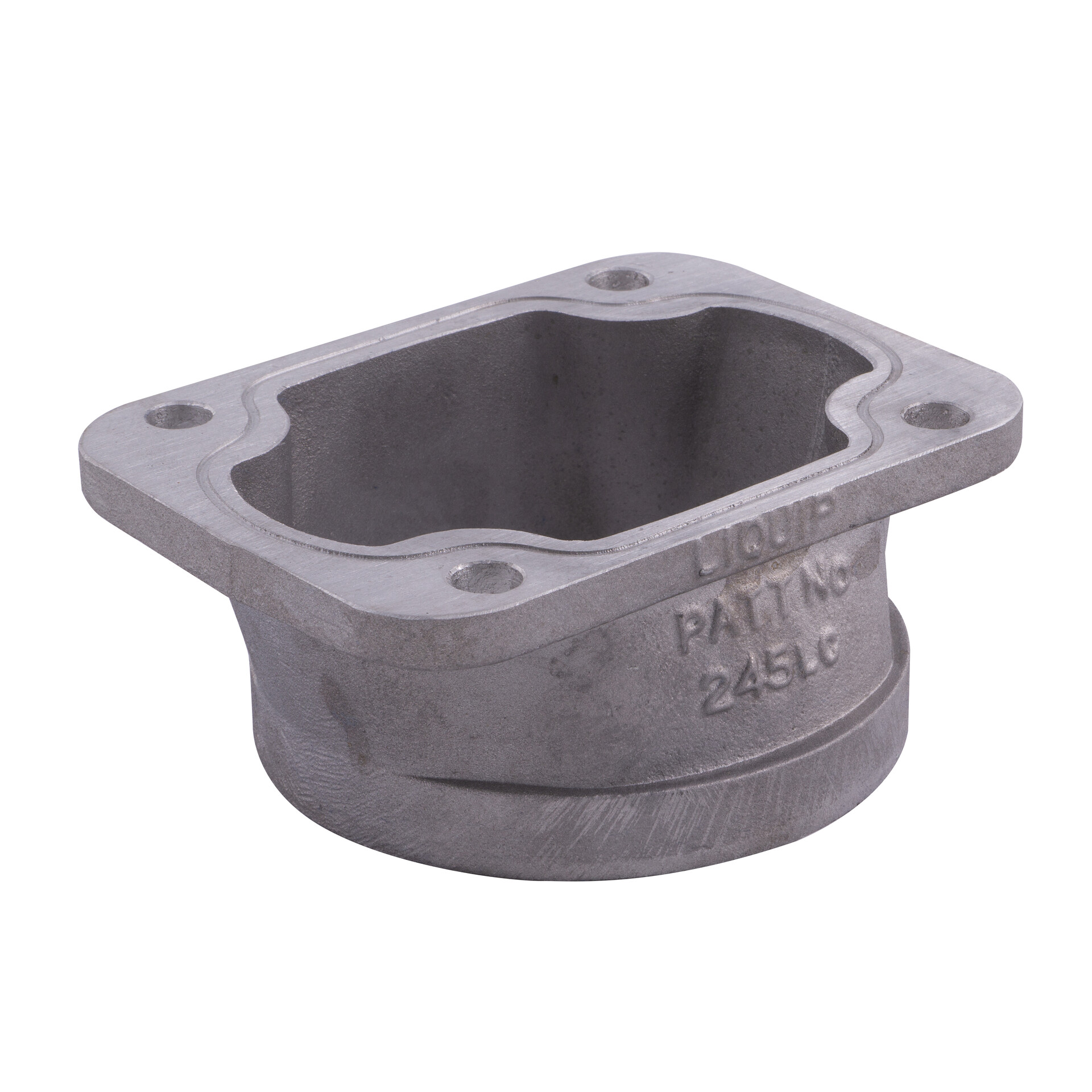

    SLV5-110: Aluminium Adaptor Outlet to suit 100mm tube.

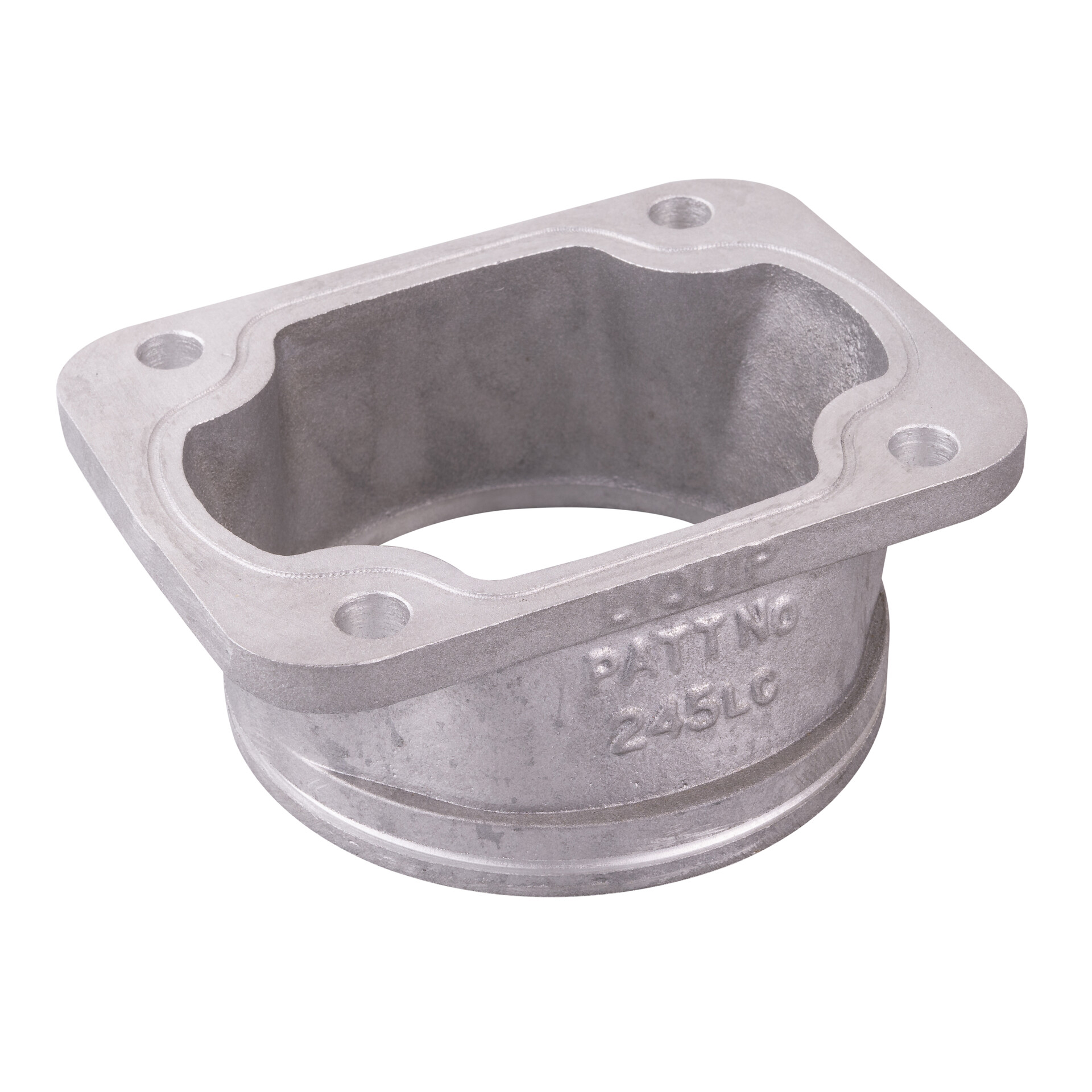

    SLV5-114: Aluminium Adaptor Outlet to suit 4" pipe.

    Associated Equipment

    SLV5-ARO: Air Operated Internal Valve with Bonded Viton A seal.

    SLV5CO: Cable Operated Internal Valve with Bonded Viton A seal.

    SLV5M: Cable Operated Internal Valve with Bonded Viton A seal (top operated only).

    0200:  3mm NBR Cork Gasket - SLV5 Pipe Flange.

    0200V: 3mm Viton A Gasket - SLV5 Pipe Flange.

    6086: PTFE Gasket - SLV5 Pipe Flange.

    7514: 1.5mm klinger Gasket - SLV5 Pipe Flange.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    ALUMINIUM ADAPTORS
    SLV5-110 Aluminium Adaptor Outlet to suit 100mm tube.
    SLV5-114 Aluminium Adaptor Outlet to suit 4" pipe.
    MILD STEEL ADAPTORS
    SLV5-43M Mild Steel 80mm outlet flange adaptor.
    SLV5-ARO 4" Mild Steel Adaptor Outlet to suit 4" Steel Tube.
