Type E Camlock Fittings



Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

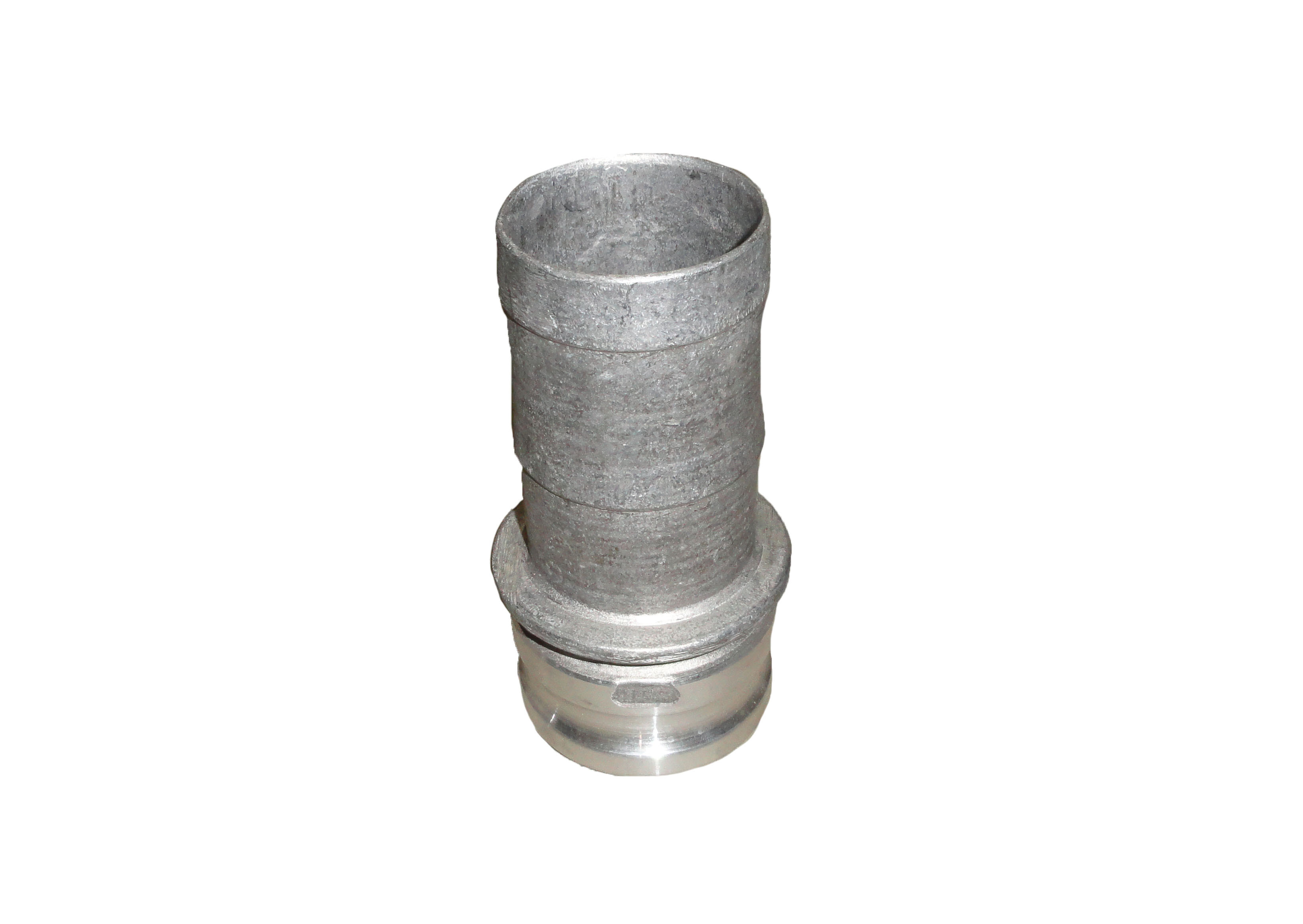

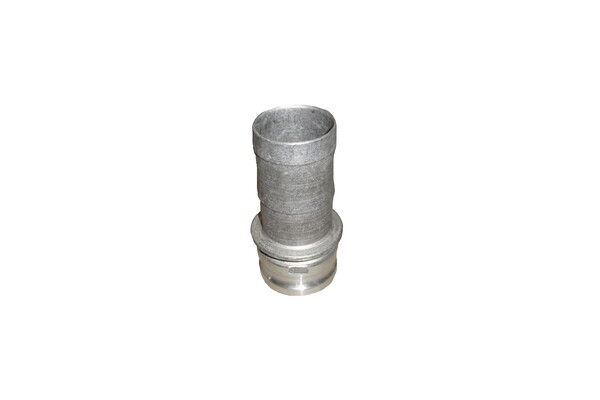

Type E Adapter - Cam and Groove Male Adapter x Hose Tail.

Type E adapters are normally used with Type C couplers, but can be used with Type B and D couplers or Type DC (Dust Cap) of identical size.

Recommended products for replacement

    Technical Information

    Materials
    Aluminium.

    Sizes Range
    1 ½ " to 4"

    Ordering Information
    Item Description Size
    NA40-22A      Camlock Male to Hosetail.       1½"
    NA50-22A Camlock Male to Hoestail. 2"
    NA80-22A Camlock Male to Hosetail. 3"
    NA100-22A     Camlock Male to Hosetail. 4"
    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    NA100-22A Camlock Male to Hosetail, Size: 4"
    NA40-22A Camlock Male to Hosetail, Size: 1½"
    NA50-22A Camlock Male to Hosetail, Size: 2"
    NA80-22A Camlock Male to Hosetail, Size: 3"
