Type C Camlock Fittings



Liquip camlocks are built to NATO specification (MIL-C-27487 (Superceded by A-A 59326) and are of aluminium construction.

For Aviation selectivity Notches and pins are used to dedicate these couplings for use with Aviation Gasoline or Aviation Turbine Fuel, thus preventing the wrong product being loaded into the wrong tank. All Aviation units conform to Australian Code of Practice CP23.

Type C Coupler - Cam and Groove Female coupler x Hose Tail.

Type C couplers are normally used with Type E adapters but can also be used with Type A and F adapters and Type DP (Dust Plug) of identical size.

Recommended products for replacement

    Technical Information

    Materials
    Aluminium.

    Sizes Range
    1 ½ " to 4".

    Ordering Information

    FEMALE CAMLOCK TO HOSE TAIL

    *Static = Static safe connection allowing inner and outer wires of hose to positively connect to end fitting.
    *Avgas = Selectivity for Aviation Gasoline
    *Jet = Selectivity for Jet Fuel

    Item Camlock   Tail     Option*
    NA40-9A 1½" 1½" Straight N/A
    NA50-9A 2" 2" Straight N/A
    NA65-13A 2½" 2½" at 68° N/A
    NA65-9A 2½" 2½" Straight   N/A
    NA80-13A 3" 3" at 68° N/A
    NA80-9-50A 3" 2" Straight N/A
    NA80-9-65A 3" 2½" Straight N/A

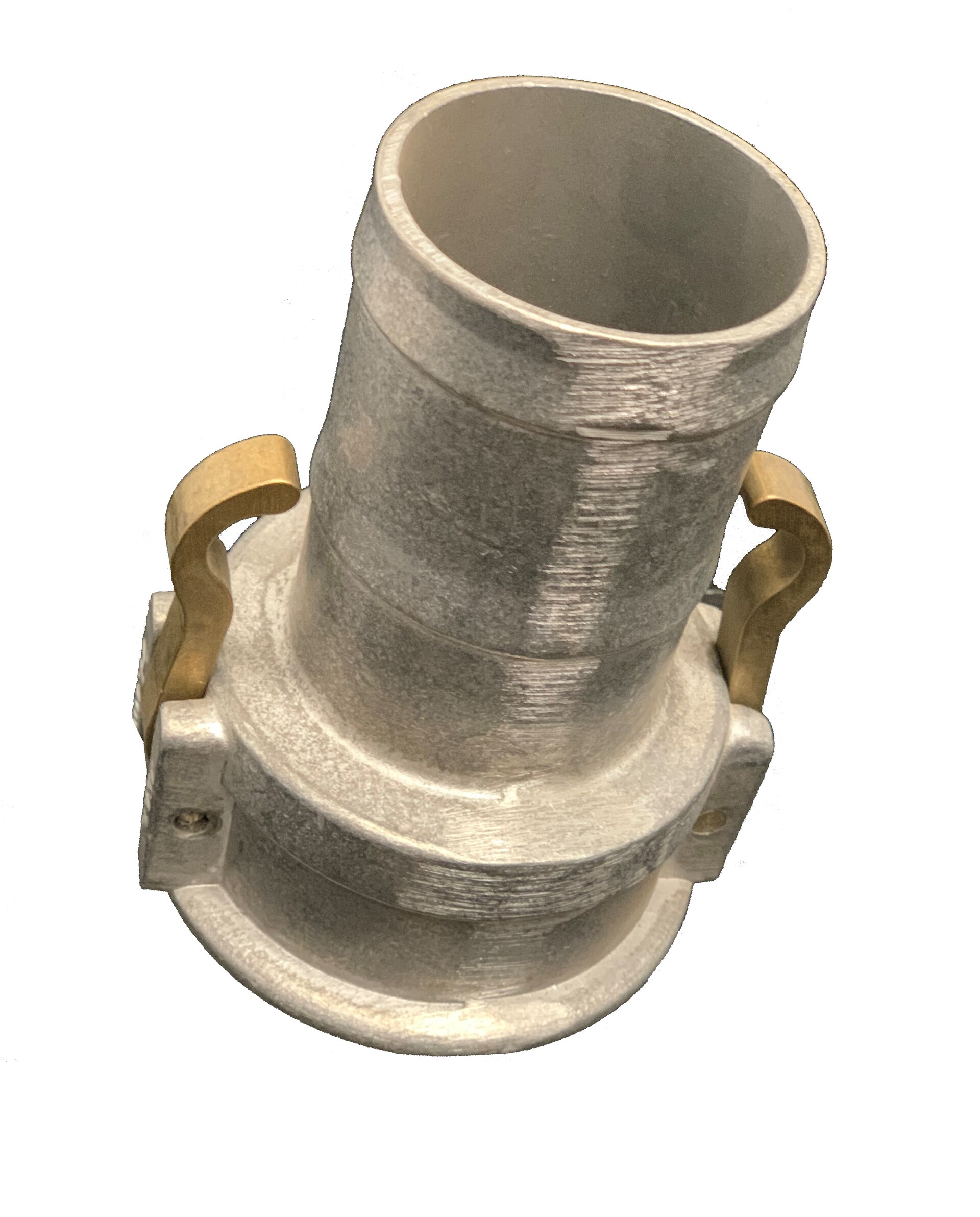

    NA80-9A 3" 3" Straight N/A
    NA80-9E 3" 3" Straight Static

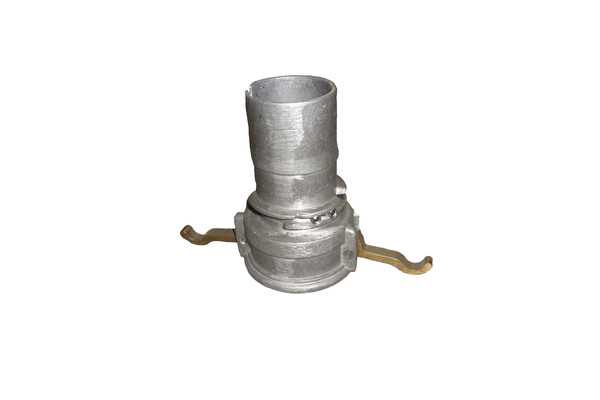

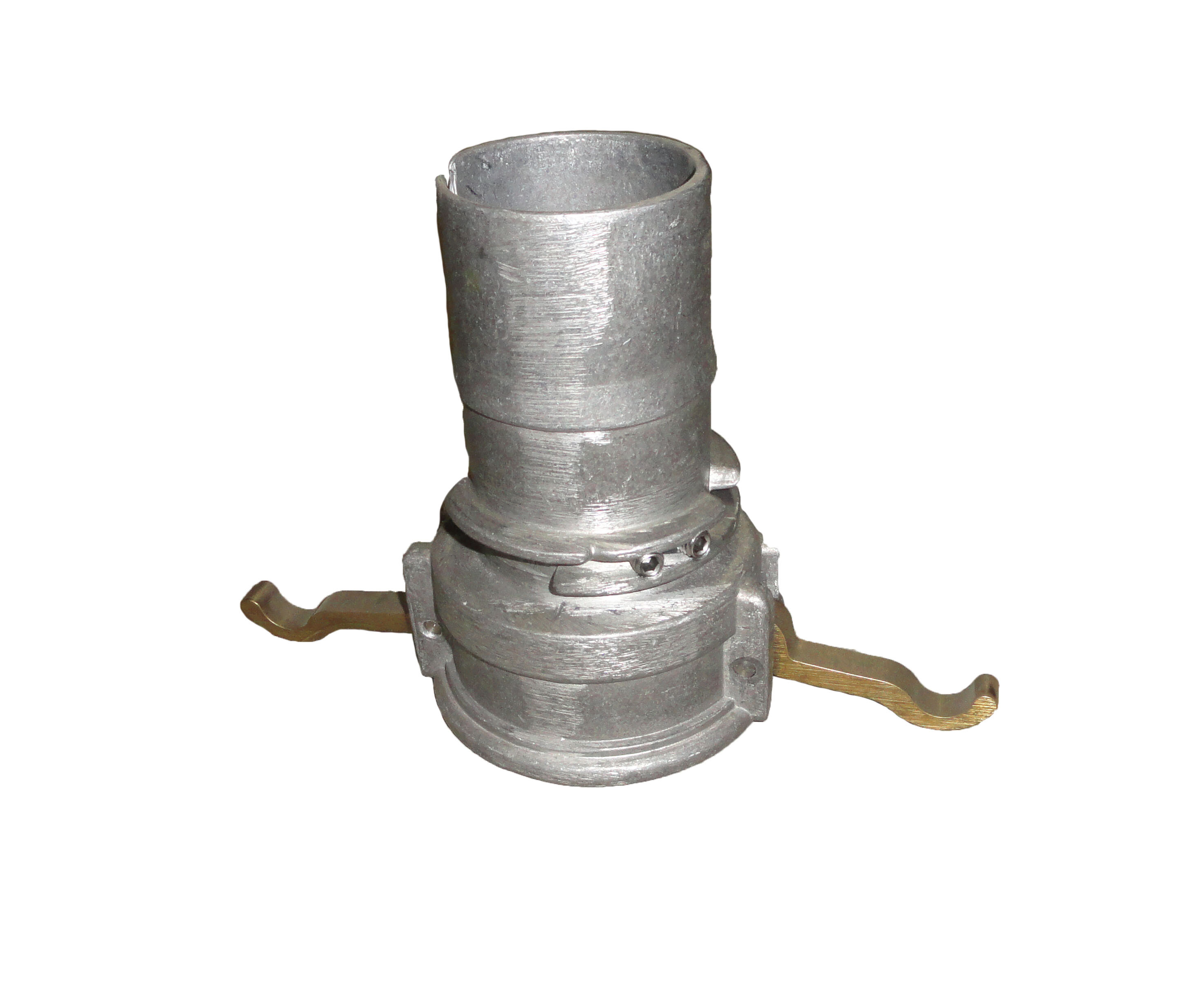

    NA80-9EW 3" 3" Straight Static
    NA80-9G 3" 3" Straight Avgas

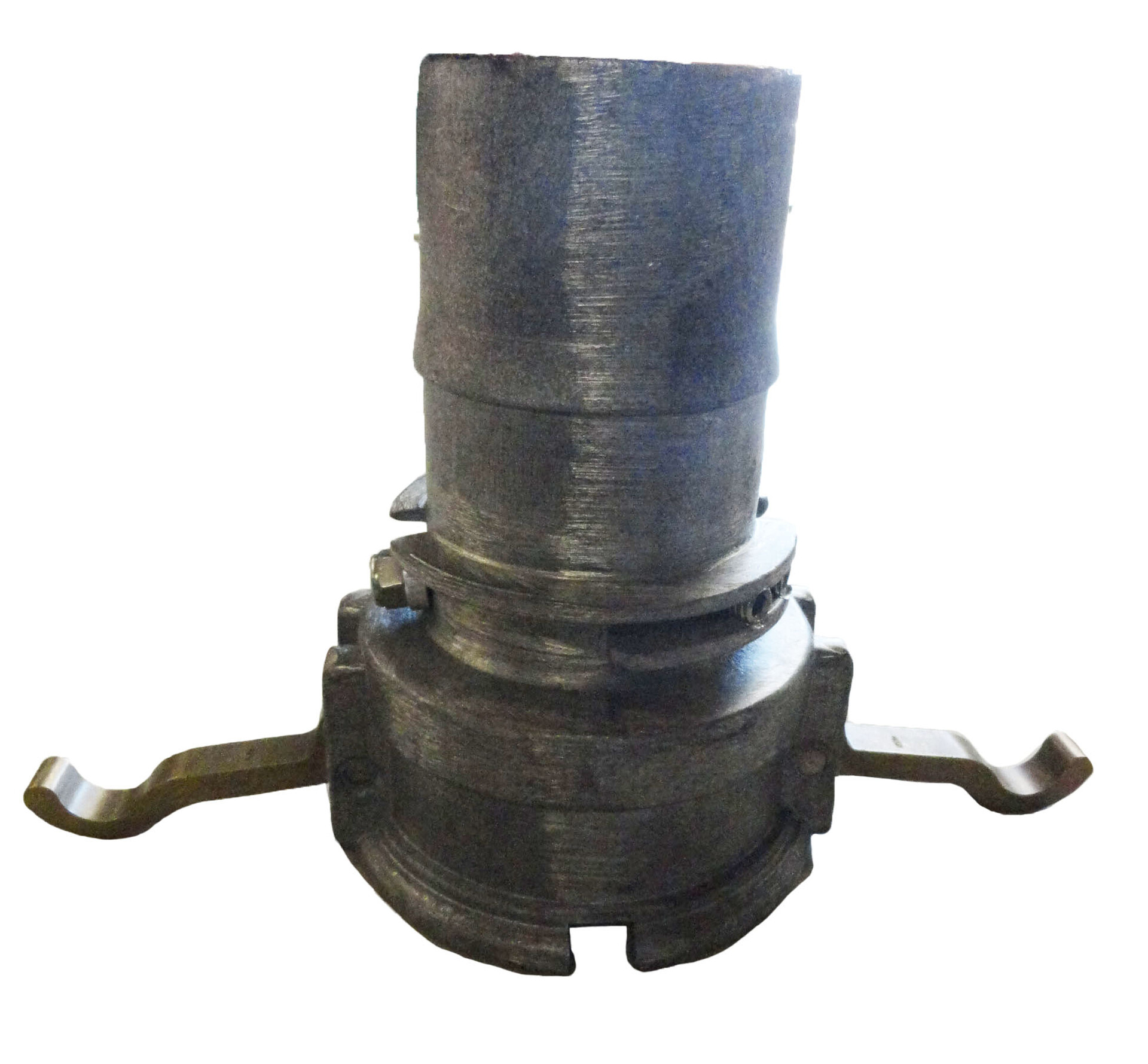

    NA80-9J 3" 3" Straight Jet
    NA100-9A 4" 4" Straight N/A
    NA100-9EW 4" 4" Straight Static
    NA100-9G 4" 4" Straight Avgas

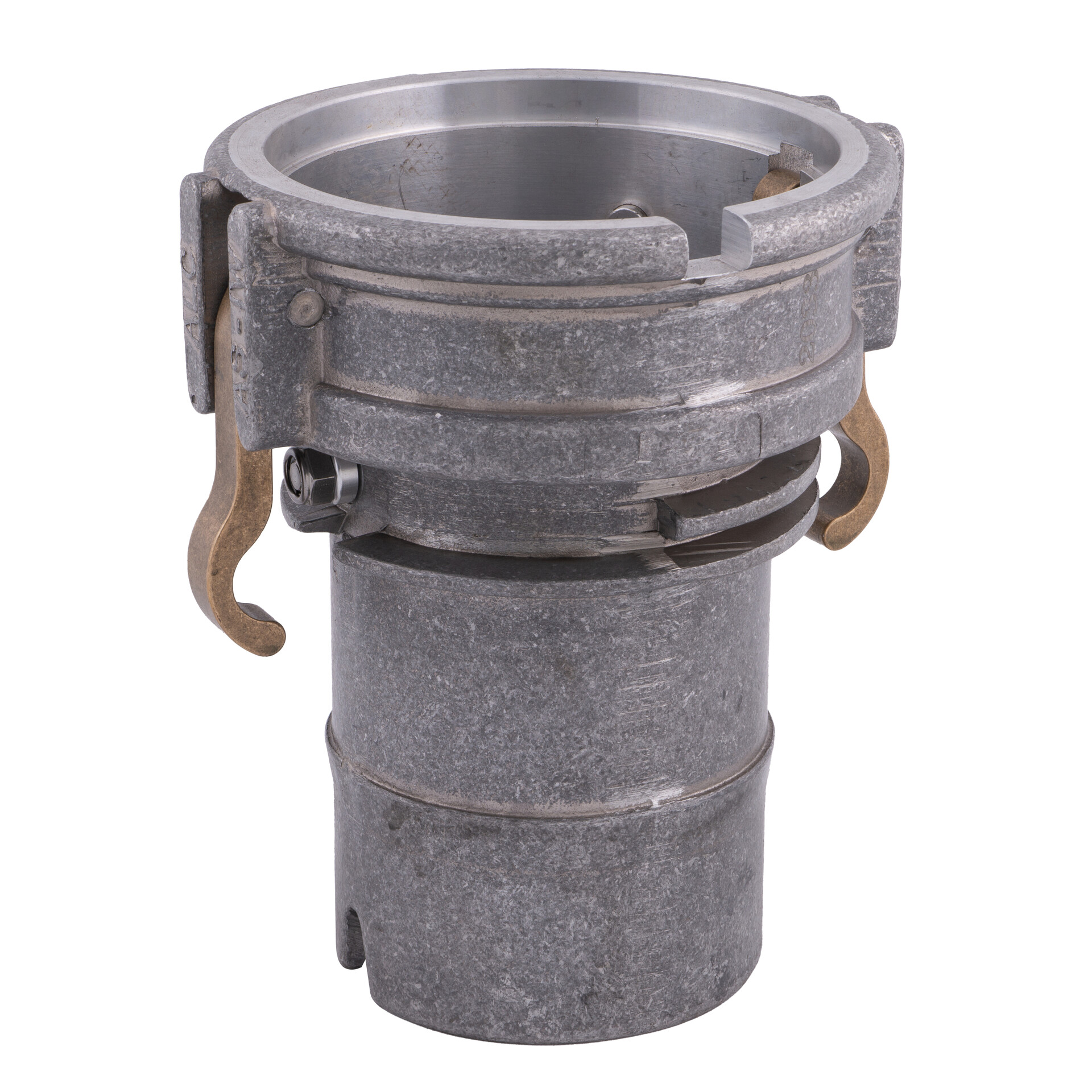

    NA100-9J 4" 4" Straight Jet
