AVN042 - Overwing Nozzles

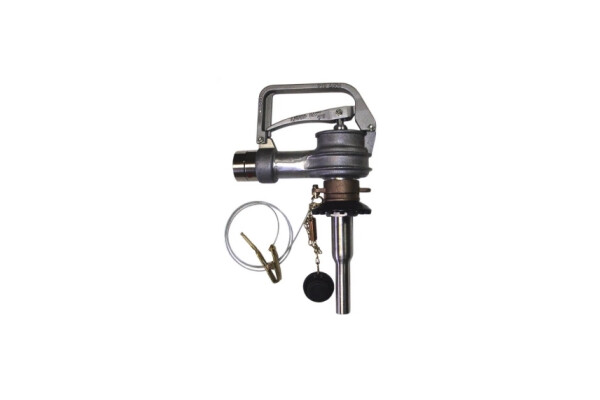

The Liquip AVN042 has been designed as an easy to operate nozzle for delivery of all fuels and aviation fuels (overwing deliveries).

ADD TO ENQUIRY CART REQUEST A QUOTE

Features & Benefits
Technical Information
Ordering Information
Associated Equipment
Resources

Features & Benefits

Equipped with "power assist" dashpot operation to make it as light as a service station nozzle.
Lightweight yet heavy duty aluminium body, handle and trigger design.
The pressure-balance design allows a small, constant finger force on the trigger no matter what the pump pressure.
The trigger action first opens a bullet shaped internal seal to equalise internal nozzle pressure, making it easy to open the product seal.
Ease of operation allows for dine, accurate top-up without any surging and splashing.
Handle and trigger are easily replaceable.
Body has wear ribs to protect it when dragged.
Seals are compatible with all Jet and aviation fuels.
4 differnet spouts options available.
Optional inlet swivel available.

Technical Information

Trigger Force
Constant 60N at midpoint

Flow-through Diameter
38mm (1½").

Pressure Drop
Only 50 kPa pressure drop at 300 LPM with 32mm spout.

Weight
2.5kg with 32mm spout.

Mounting
38mm (1½" BSPP female thread) inlet.

Materials
-Aluminium body, handle, trigger and adaptor outlet.
-Stainless Steel shaft, pin and spring
-Viton & Polyurethane seals.

Dismantling
Remove capscrew. Unscrew outlet adaptor. This will give access to all internals.

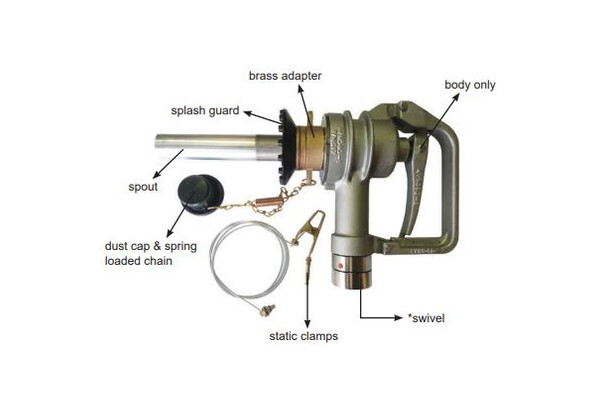

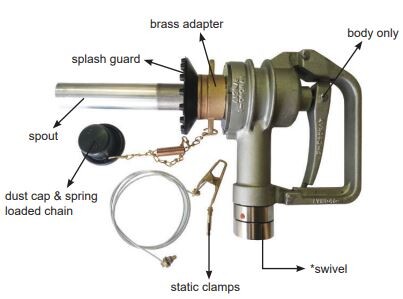

Associated Equipment

Spouts
ER250: 25mm (reduced) spout.
ER495: 32mm aluminium spout.
ER583 : 38mm aluminium spout.
ER587 JET: Jet-Selective aluminium spout.

Hose Swivel
TS57-0058 : 1½" M x 1½" F

Dust Caps
GKG25: Buna-N dust cap & spring loaded chain to suit 25mm spout.
GKG32: Buna-N dust cap & spring loaded chain to suit 32mm spout.
GKG38: Buna-N dust cap & spring loaded chain to suit 38mm spout.
GKG38-J: Buna-N dust cap & spring loaded chain to suit Jet selective spout.

Adaptor
EG432: Brass adaptor to suit AVN042 overwing nozzle for fitting spouts.

Strainer
ES418: Poly/stainless steel 100 mesh strainer to suit EK432 adaptor.
EG-ASS: Adapter (EG432) + Strainer (ES418).

Splash Guard
EK419: Buna-N guard to suit EG432 adaptor.

Static Clamps
EKG1200: 1.2m bonding cable and clip.

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.

Submit Enquiry

Submit a product Enquiry / Quote to Liquip customer service

Save as Wishlist

Save as Wishlist - handy function for account holders

Send to a Friend

Send you selection of products to a friend via a convenient email link

Image	Item	Description
AVN042 NOZZLES
	AVN-25Z	AVN042 Nozzle comes with 25mm spout.
	AVN-32Z	AVN042 Nozzle comes with 32mm spout.
	AVN-38Z	AVN042 Nozzle comes with 38mm spout.
	AVN-JZ	AVN042 Nozzle comes with Jet Selective spout.

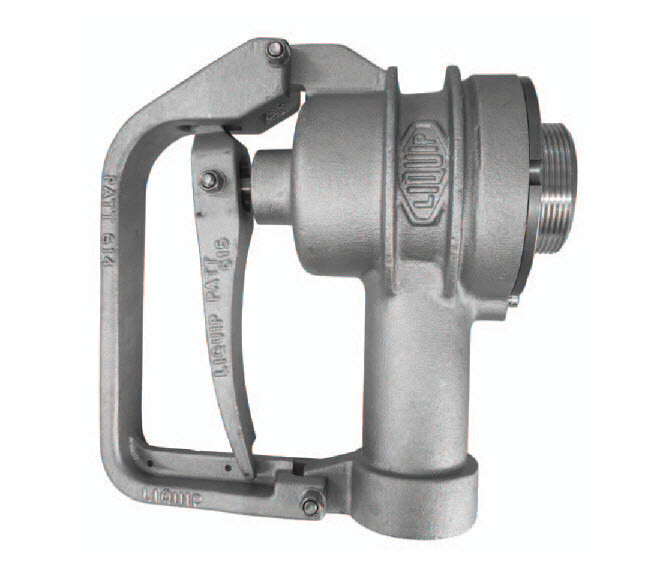

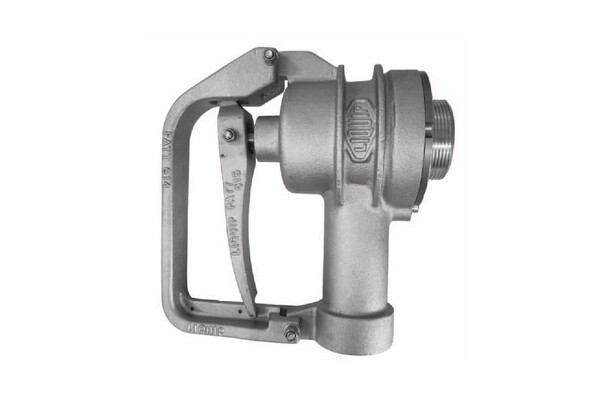

	AVN042	1½" overwing nozzle body.
AVN042 NOZZLES SPARES - ADAPTORS
	EG432	ADAPTOR BRASS MK12 NOZZLE SPOUT
AVN042 NOZZLES SPARES - DUST CAPS
	GKG25	DUST CAP 25MM C/W CHAIN
	GKG32	DUST CAP 32MM C/W CHAIN
	GKG38	DUST CAP 38MM C/W CHAIN
	GKG38-J	DUST CAP 38MM SUIT JET SPOUT
AVN042 NOZZLES SPARES - SPLASH GUARDS
	EK419	UMBRELLA BUNA O/WG NOZZLE to suit EK432 ADAPTOR
AVN042 NOZZLES SPARES - SPOUTS
	ER250	SPOUT ONLY 25MM AVG RED AVN NOZZLE
	ER495	SPOUT ONLY 32MM AVN NOZZLE
	ER583	SPOUT ONLY 38MM SUIT AVN NOZZLE
	ER587 JET	SPOUT ONLY JET SELECTIVE (PRESSED)
AVN042 NOZZLES SPARES - STATIC CLAMPS
	EKG1200	STATIC CLIP BRASS C/W CABLE
AVN042 NOZZLES SPARES - STRAINERS
	ES418	STRAINER 32MM SUIT MK12 NOZZLE
AVN042 NOZZLES SPARES - SWIVELS
	TS57-0058	SWIVEL 1½" x 1½" M&F NI/P
