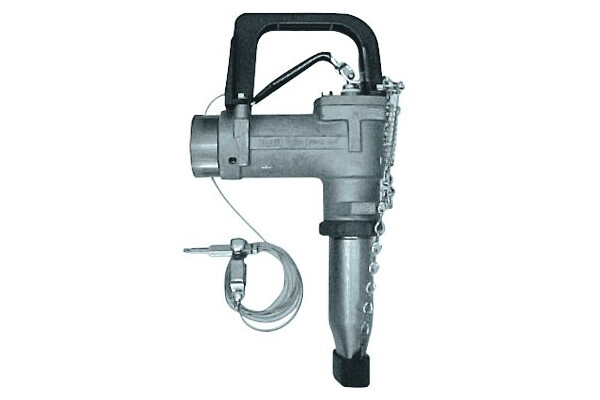

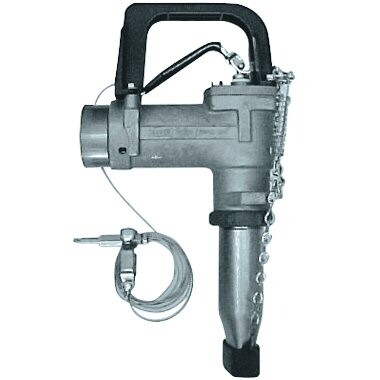

295SA & SAJ Overwing Aircraft Nozzles



Liquip are proud to offer OPWs range of 295 series overwing aircraft refueling nozzles.

A lightweight aluminium design and dual poppets allow for an easy to open nozzle against high inlet pressures.

OPW's light-weight, easier to maneuver overwing aircraft fueling nozzles offer color-coded composite lever guards to help prevent cross-fueling. Features a double-poppet design for easy opening against high inlet pressure AVGAS or JET FUEL applications. Ground wire assembly included on all aviation nozzles. Model 295AF static ground wire with Air Force plug meets MS 25384-5.

Features & Benefits
  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - easy-to-open nozzle against high inlet pressures.
  • Color-Coded Composite Lever Guards - helps distinguish between AVGAS and Jet A. Easily replaced in lever guard kit.
  • Right Angle Design - provides larger lever area for better grip and easier control.
  • Vinyl-Coated Lever - insulates fingers against cold.
  • 100 Mesh Strainer - prevents foreign matter from entering fuel tank; easy to remove and clean.
  • Dust Cap - keeps spout free from dirt and stops fuel drippage when connected.
  • Adjustable Dash Pot - permits adjusting the main poppet closure rate over a wide range of flows to overcome line shock with minimum afterflow.
  • Easily Replaced Spout - the spout is easily threaded into the body. Replacement spouts are readily available from OPW.
  • Built-In Swivel - eliminates twisting and kinking of the hose. This swivel is electroless nickel-plated and has full-bearing surfaces.
  • NPT Female Threads at Inlet End of 295SA - accepts all 1", 1-1/4" or 1-1/2" male connections.
  • NPT Female Threads at Inlet End of 295SAJ - accepts all 1-1/2" male connections.
  • Unique Jet Aircraft Spout Design of 295SAJ - to help prevent inadvertent fueling of piston engine aircraft with turbine fuel.
  • Ground Wire Assembly - included on all aviation nozzles.

Technical Information

Design working pressure
50 PSI (3.45 bar) maximum pressure.

Materials
-Body: Cast aluminium.
-Main stem: Stainless steel.
-Stem seal: Buna-N O-ring.
-Disc: Viton.
-Spout: Aluminium.

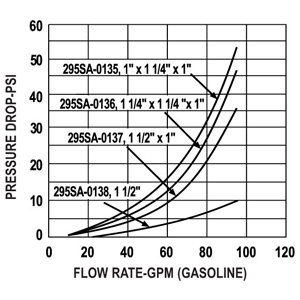

Performance

Ordering Information

295AF-0100: OPW Aircraft Nozzle 40mm (1½") - Artic guard.

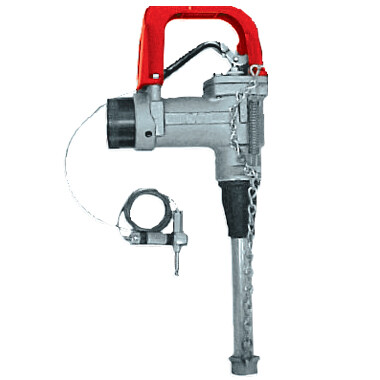

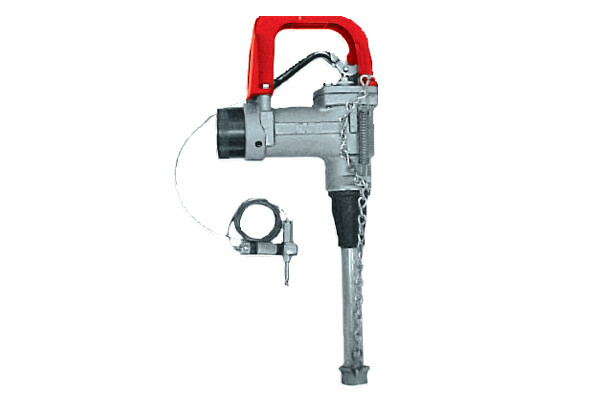

295SA-0135: OPW Overwing Nozzle (1" x 25mm) - AVGAS Spout.

295SA-0136: OPW Overwing Nozzle (1¼" x 32mm) - AVGAS Spout.

295SA-0137:  OPW Overwing Nozzle (1½" x 38mm) - AVGAS Spout.

295SAC-0157: OPW Overwing Nozzle (1½" x 25mm) - AVGAS Spout c/w check valve spool.

295SAC-0158: OPW Overwing Nozzle (1½" x 38mm) - AVGAS Spout c/w check valve spool.

295SACJ-0200:  OPW Overwing Nozzle (1½" NPT x 38mm) - AVGAS Spout c/w check valve spool.



Item Number

Inlet Thread

Spout O.D.

in.

mm

lbs.

kg

in.

mm

295SA-0135

1

25

4.6

2.1

1

25

295SA-0136

1-1/4

32

4.5

2

1

25

295SA-0137

1-1/2

38

4.5

2

1

25

295SA-0138

1-1/2

38

5.1

2.3

1-5/8

41

295SAJ-0200

1-1/2

38

5.6

2.5

2-2/3

54

295SAC-0156*

1-1/4

32

4.5

2

1

25

295SAC-0157*

1-1/2

38

4.5

2

1

25

295SAC-0158*

1-1/2

38

5.15

2.3

1-5/8

41

295SACJ-0200*

1-1/2

38

5.65

2.6

2-2/3

54

* Check Valve
