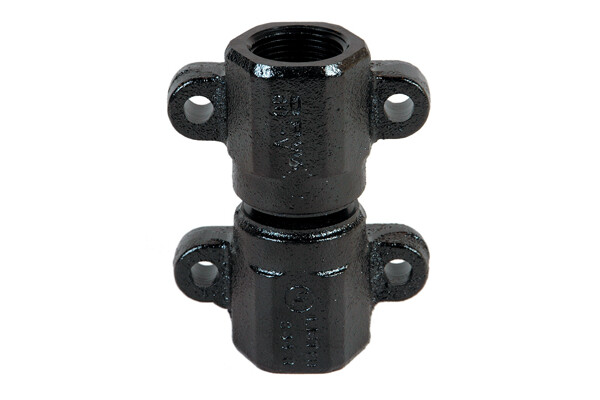

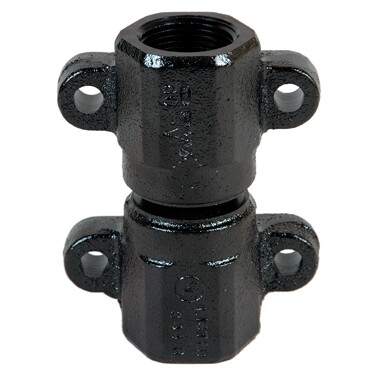

OPW 60V Series Vapour Line Shear Valves



OPW 60 Series Vapor Line Shear Valves are installed on vapour return lines beneath dispensers at grade level to minimise hazards associated with collision or fire at the dispenser.

If the dispenser is pulled over or dislodged by collision, the top of the valve breaks free at the integral shear groove to minimize damage to the dispenser piping. Poppeted models afford additional protection by preventing the release of vapors from the dispenser’s internal piping and the vapour line to the tank.

The base of the Vapor Line Shear Valve is securely anchored to the concrete dispenser island through a stabilizer bar system within the dispenser sump or pan while the valve top is secured to the dispenser structure to ensure proper shearing action.

Features & Benefits
  • 1" Female Connection to Both Dispenser and Underground Piping.
  • Multiple Mounting Methods - Mounting Boss accepts either U-Bolt or Straight Bolt mounting kits.
  • Duragard® E-Coat Finish - Provides superior corrosion resistance.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Materials
    Body: Cast iron with black Duragard® E-Coating.
    Discs: M-19 Viton®.

    Catalog Page

    Instructions

    Sales Literature

    Below Ground Fuel Compatibility Matrix

    Ordering Information
    Item Number Connections
    Poppeted
    60V-1000 1" x 1" (3 x 3 cm) FNPT

    60VP-1001 1" x 1" (3 x 3 cm) FNPT
    60VK-1002 U-Bolt Mounting Kit Includes:
    (2) 3/8" (9.5 mm) u-bolts,
    (4) washers, (4) nuts

    60VK-1003 Straight Bolt Mounting Kit Includes:
    (4) 3/8" (9.5 mm) 16 bolts,
    (4) washers, (4) nuts



    60V Instruction Sheet Order Number: H12133M

    Dimensions

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    60V-1000 Connections: 1" x 1" (3 x 3 cm) FNPT
    60VP-1001 Connections: 1" x 1" (3 x 3 cm) FNPT, Poppeted
    60VK-1002 U-Bolt Mounting Kit Includes: (2) 3/8" (9.5 mm) u-bolts, (4) washers, (4) nuts
    60VK-1003 Straight Bolt Mounting Kit Includes: (4) 3/8" (9.5 mm) 16 bolts, (4) washers, (4) nuts
