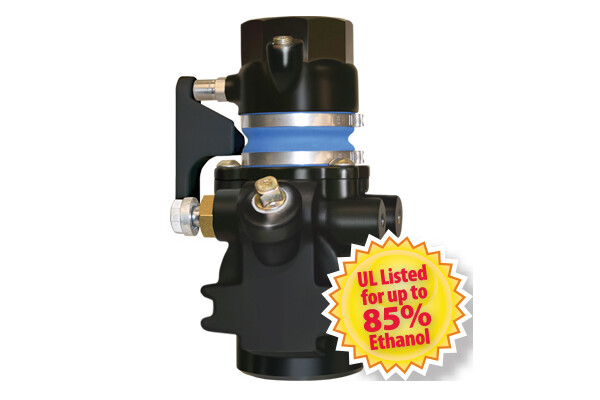

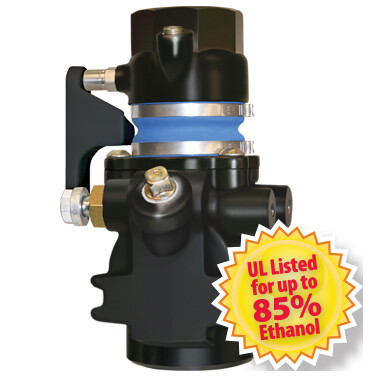

10 Plus Series Emergency Shut-Off Valves

OPW raised the protection standard in emergency valves when it introduced the first double-poppet valve back in 1989. This industry-changing OPW innovation helped to significantly reduce the risk of fire, explosion, personal injury, property damage and environmental contamination at sites around the world. Major oil companies and jobbers agreed that providing added protection for their customers, investments and the environment were the three most convincing reasons for switching to the innovative new valves.

  • The ONLY emergency shut-off valve in the world designed to protect your customers, investments, and the environment against the potential hazards of undetected shear groove leaks caused by low-impact incidents.
  • The patent-pending SmartGuard™ design contains shear groove leaks, preventing fuel from leaking into sumps to help reduce the risk of fire, explosion, personal injury, property damage, environmental contamination, product loss and costly clean-up.
  • Superior shear groove design and engineering results in reliable valve shut-off in the event of a pull-over or dislodged dispenser – the 10 Plus utilizes the same time-tested field-proven design of the OPW 10 Series Emergency Shut-off Valve – the most specified emergency shut-off valve in the world.
  • Fusible link releases to automatically close the valve to reduce fire hazard.
  • Rigorously tested to meet OPW’s rigid quality standards.

Materials
Top: Cast iron.
Body: Cast iron.



Model No.
Body Size
Body Weight
Connection Threads
Poppet Configuration
Application
Mounting System
in.
cm
lb.
kg
10P-0150
1-1/2"
4
6.7
3.05
NPT
Single
Pressure
Combination
10P-0152
1-1/2"
4
6.8
3.10
NPT
Double
Pressure
Combination
E85 10P-0152E85
1-1/2"
4
6.8
3.10
NPT
Double
Pressure
Combination


10 Plus Series Instruction Sheet Order Number: 201614

Dimensions


in.
cm
A
7-9/16
4
B
2-25/32
4
C
2-21/32
4
D
2-11/16
4
E
2-9/16
4
F
4-21/32
4







PA15 Offset Adaptor

The PA15 Offset Adaptor is designed for adjusting misalignment of pipe in dispenser sumps and suction stubs. The PA15 has a low profile feature, and is designed for maximum flow.

Replacement Parts

Part Number Description
10RPLUS-0150 10 Plus Single Poppet Replacement Top
10RPLUS-0152 10 Plus Double Poppet Replacement Top
202950 Tetraseal
200143 Safety Hub/Fusible Link
