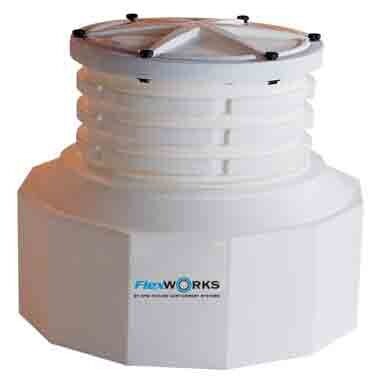

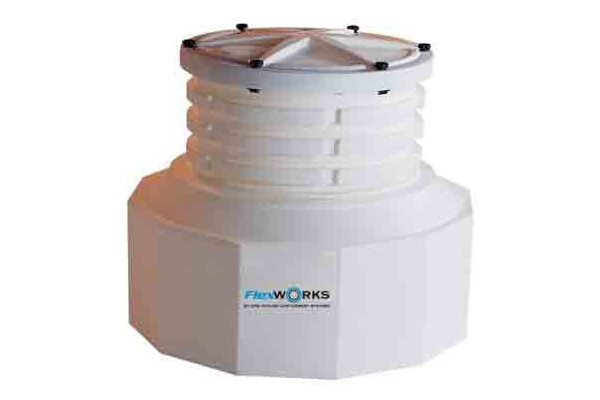

FlexWorks Polyethylene Tanks Sumps with Mechanically Fastened Covers
OPW-FCS one piece polyethylene tank sump with Mechanically Fastened Cover.
Features & Benefits
- Long-Term Watertight Performance/Strength & Rigidity – one-piece design provides reliable watertight integrity and long product life. Designed to resist deformation under burial and high water table forces.
- Installation Flexibility – multiple flats provide maximum area for locating pipe entries.
- Easy Field Height Adjustability – the special ribbed height adjustment design makes adjustments to finished grade, if necessary, quick and easy.
- Ordering Information
Part # Application Dimensions
Sump Base Burial Depth
Weight
Manway Diameter
A Cover
B Height
C x D Panel
No. of Panels
E Base
max.
min.
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
lbs.
kg
TSS-4536 Tank Sump Shallow Bury, 36" x 45" 36
914
33
838
34
864
12 x 12
305 x 305
12
45
1,143
39
991
28
711
84
38
TSM-4536 Tank Sump Medium Bury, 36" x 45" 36
914
33
838
39
991
17 x 12
432 x 305
12
45
1,143
44
1,118
33
838
86
40
TSM-4842 Tank Sump Medium Bury, 42" x 48" 42
1,066
39
991
39
991
17 x 11
423 x 279
14
48
1,219
44
1,118
33
838
88
40
TSD-4536 Tank Sump Deep Bury, 36" x 45" 36
914
33
838
51
1,295
17 x 11
423 x 279
14
48
1,219
56
1,422
33
838
90
41
TSD-4842 Tank Sump Deep Bury, 42" x 48" 42
1,067
39
991
51
1,295
17 x 11
432 x 279
14
48
1,219
56
1,422
33
838
92
42
Parts Diagram
Dimensions - Deep Bury (TSD)
Dimensions - Medium Bury (TSM)
Dimensions - Shallow Bury (TSS)
Replacement Parts and Accessories
Part Number Description H13257M Knob H13213M Bracket H13214M Seal 33" (838 mm) H13215M Seal 39" (991 mm) C04420M Ring 33" (838 mm) C04432M Ring 39" (991 mm) D02025M Cover 33" (838 mm) C02034M Cover 39" (991 mm) CLC-33 Latched Fiberglass Tank Sump Lid
