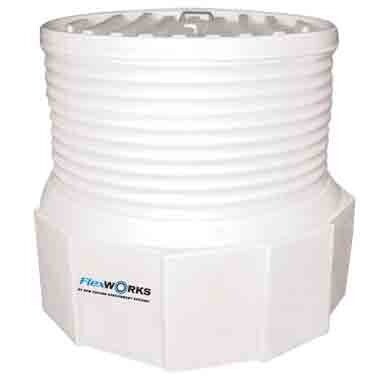

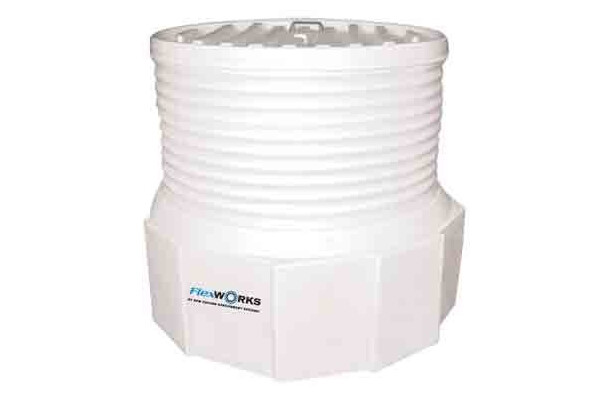

FlexWorks Polyethylene Tank Sumps with Compression Fit Covers
OPW-FCS one piece polyethylene tank sumps are listed with Underwriters Laboratories, Inc., (UL), and have passed the requirements for Canada at Underwriters Laboratories of Canada (ULC), KIWA and IP.
Features & Benefits
- Liquid-tight covers
- Liquid-tight riser/base joints and pipe entries
- Chemically compatible
- Structurally strong
- Height adjustable
- Ordering Information
Model # Application Dimensions
Sump Base Burial Depth
Weights
Manway Diameter
A Cover
B Height
C x D Panel
No. of Panels
E Base
max.
min.
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
in.
mm
lbs.
kg
MBS-3645H Tank Sump Medium Bury 36" x 45" 36
914
33
838
39
990
16 x 9
406 x 229
12
45
1,143
44
1,118
24
610
90
40.8
DBS-3645H Two-Piece Deep Bury 36" x 45" 36
914
46
1168
48.5
1231
18 x 10
457 x 254
12
49
1,244
55
1,397
33
838
140
63.5
Dimensions
Replacement Parts & Accessories
Part Number Description SCS-0030-HW Sump Cover Seal TSC-0030 Tank Sump Cover SCS-0036-HW Sump Cover Seal TSC-0036 Tank Sump Cover SCS-0042-H Sump Cover Seal TSC-0042 Tank Sump Cover WIP-HK-8000 Sump Cover Handle
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer serviceSave as Wishlist
Save as Wishlist - handy function for account holdersSend to a Friend
Send you selection of products to a friend via a convenient email link| Image | Item | Description |
Add Item into Enquiry Cart
|
|---|---|---|---|
 |
DBS-3645H | Two-Piece Deep Bury 36" x 45" | |
|
|
MBS-3645H | Tank Sump Medium Bury 36" x 45" | |
| REPLACEMENT PARTS & ACCESSORIES | |||
|
|
SCS-0030-HW | Sump Cover Seal | |
|
|
SCS-0036-HW | Sump Cover Seal | |
|
|
SCS-0042-H | Sump Cover Seal | |
|
|
TSC-0030 | Tank Sump Cover | |
|
|
TSC-0036 | Tank Sump Cover | |
|
|
TSC-0042 | Tank Sump Cover | |
|
|
WIP-HK-8000 | Sump Cover Handle | |
