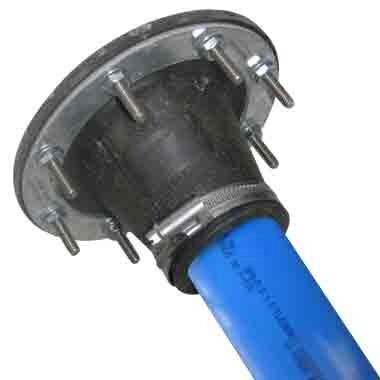

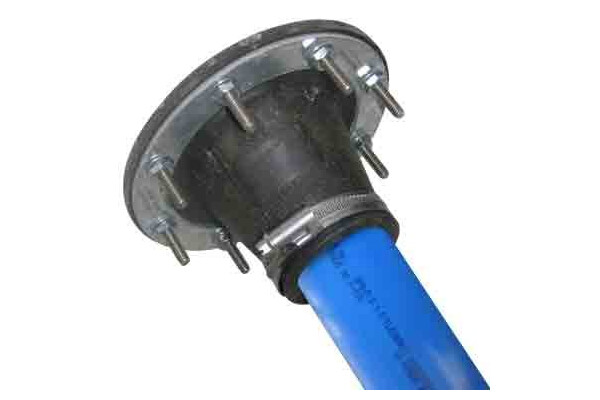

Flexible Entry Boots



FlexWorks™ Flexible Entry Boots are reliable, safe seals for pipe and conduit entries into underground containment sumps.

These entry boots allow for angled pipe entries and have no exposed metal parts to the underground environment.  These entry boots are available in a variety of sizes and designs to accommodate rigid and flexible piping, ducting and Access Pipe.


Features & Benefits
  • Watertight pipe and conduit entries
  • Installation on flat or round surface
  • Added flexibility permitting angled entries up to 15 degrees
  • 3rd Party Testing Approved

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information
    Item Number Application

    Weight

    Hole Saw

    lbs.

    kg

    in.

    cm
    EBF-0751 1/2", 3/4" and 1" Conduit Entry Boot Fitting

    1.2

    0.5

    2-3/8"

    6.03
    EBF-0150 1.5"  Entry Boot Fitting for 1.5” DW FlexWorks Pipe

    1.5

    0.7

    3-3/4"

    9.52
    EBF-0200 2" Entry Boot Fitting for 2" DW FlexWorks Pipe or 2" LCX

    1.8

    0.8

    3-3/4"

    9.52
    EBF-0200F 2" Entry Boot Fitting for 2" DW FlexWorks or 2" Rigid Pipe

    1.3

    0.6

    3-3/4"

    9.52
    EBF-0300 3" Entry Boot Fitting for 3" DW FlexWorks Pipe

    1.8

    0.8

    5-1/2"

    12.7
    EBF-0400 4"  Entry Boot Fitting for 4" Rigid Pipe/AXP Pipe

    2.0

    0.9

    5-1/2"

    13.97
    EBF-0600 6" Entry Boot Fitting for 6" Rigid Pipe

    Saber Saw
    SAB-7400 4" Sump Access Boot

    2.0

    0.9

    5"

    12.7

    Flexible Entry Boot Manual Order Number: EBM-0001

    Technical Information

    Catalog Page

    Brochures

    Infographics

    White Papers

    Below Ground Fuel Compatibility Matrix

    Sales Literature

    Instructions
