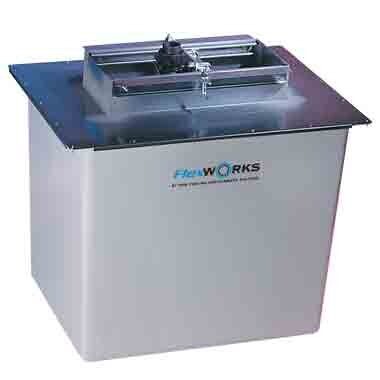

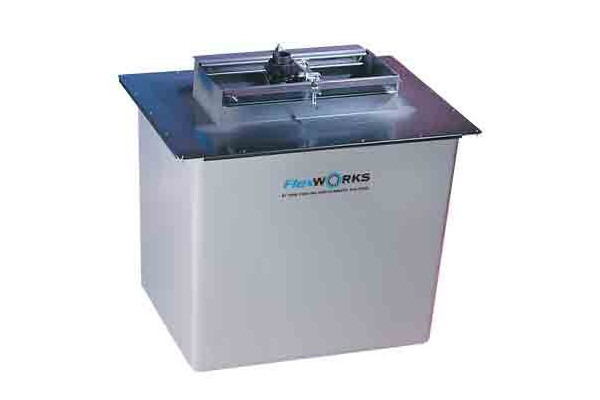

Wide-Access Fiberglass Dispenser Sumps



The wide sump surface area is designed to accommodate up to 4 product lines into the sump.

Features & Benefits
  • Conduitless Design – the fiberglass base and metal cap and frame are designed to direct conduit into the dispenser along the side of the sump to avoid requiring additional entry boot penetrations.
  • Multi-Product Flexible – the wide sump surface area is designed to accommodate up to 4 product lines into the sump.
  • Structural Integrity – engineered with thick side walls to withstand backfill and high water table forces. Precise glass and resin metering throughout the molding process ensures material consistency and maximizes the strength-to-weight ratio.
  • Smooth Sealing Surfaces For Leak-tight Sump Entry Fittings – our fully enclosed molding manufacturing method produces a uniform wall thickness while eliminating air entrapment. The result is a flat, smooth finish, both inside and out, which provides leak-tight pipe entries.
  • Full-Perimeter Liquid Collection Channel – facilitates quick leak detection and allows flexibility in locating leak sensors.
  • Convenient Shipping and Storage – sump boxes are nestable. Two sizes accept multiple frames to accommodate all common dispensers.
  • Full-Access Working Area – frame is attached after plumbing is complete.
  • Mounting Flange – Sump rests on island form crossbars for support during installation.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information



    Sump Model # Dimensions Weight with Top Box Part No. Top Assembly Part No.
    A B C D
    in. cm in. cm in. cm in. cm lbs. kg
    DSF-1120 15 38 11 28 37 94 20 51 87 40 D02198M D02210
    DSF-1123 15 38 11 28 37 94 23 58 87 40 D02198M D02212
    DSF-1123F* 15 38 11 28 37 94 23 58 87 40 D02198M D02213
    DSF-1543C** 18.5 47 14.75 37 40.5 103 39 99 90 41 210034 211351
    DSF-1630 20 51 16 41 37 94 30 76 80 36 D02198M D02536
    DSF-1741C 20.7 52.5 16.7 42.4 40.5 103 37 94 90 41 210051 212272
    DSF-1836C** 21.5 55 17.25 44 40.5 103 36.5 93 90 41 210051 211350
    SL-1100 Urethane Sealant - One Tube required per Sump (Packaged 12 tubes/case) * Flush Mount model supplied without rain lip due to dispenser frame clearance limitations; Frame Gasket Included. Anchor bolts provided, Stabilizer Bar Kits ordered separately; One kit required for each emergency & vapor valve. Refer to FlexWorks Dispenser Sump Selection Chart (See Pages 41 - 42 of the catalog) to select sumps for particular dispensers. Yellow indicates metal top model. ** These sumps are designed for Conduitless applications.



    Dimensions

    FlexWorks Dispenser Sump Selection Guide

    Gilbarco

      Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
    Gilbarco in. cm
    Commercial 625, 650, 684 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
    Salesmaker-2 Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
    Highline 11B Series (21" / 53 cm Frame) 15-11/16" x 21" 40 x 53 DS-1117F DSW-1117F     DSF-1117F SBK-1100J
    Highline 111B Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 53 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Trimline 251, 252, 261, 262 (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Trimline 154, 164, 251, 262 (27" / 69 cm Frame) 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F     DSF-1117F SBK-1100J
    Commercial 650 Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Highline Salesmaker Series 15-11/16" x 21" 40 x 69 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
    Highline Salesmaker Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Salesmaker-4 Series (27" / 69 cm Frame) 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Legacy Series 15-11/16" x 27" 40 x 69 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Encore Series 23-1/2" x 40-9/16" 60 x 103 DS-1836 DSW-1836 DSW-1836CL DP-1836 FDS-4021 DSF-1836 DSF-1836C SBK-1800*
    Advantage (36" / 91 cm Frame Models) 21-1/2" x 36" 55 x 91 DS-1630 DSW-1630 DP-1630   DSF-1630 SBK-1600
    Quad or Dual
    Blender X + O (36" / 91 cm)
    Advantage (48" / 122 cm Frame Models) 21-1/2" x 48" 55 x 122 DS-1642 DSW-1642     DSF-1642 SBK-1600*
    Blender Six-Hose
    Blender Single-Hose
    Blender X + O (48" / 122 cm) or X + 1 (48" / 122 cm)
    MPD-1, MPD-2, MPD-3 16" x 48" 41 x 122 DS-1036         SBK-1000J
    MPD Fixed Blender 16" x 48" 41 x 122 DS-1036         SBK-1000J

    * For FDS-4721 Models, use Stabilizer Bar SBO-0300.

    Bennett

    Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
    Bennett in. cm
    Bennett Pacific 19-1/2" x 43-1/2" 49 x 110 DS-1543A         SBK-1500
    Bennett 3000 Series 20" x 30" 51 x 76 DS-1123B         SBK-1100J

    PD McLaren

    Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
    PD McLaren in. cm
    RDR HSx (Single Product, Single Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
    RDR HSx-D1 (Single Product, Dual Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
    RDR HSx-D2 (Dual Product, Dual Hose) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
    RDR HSx-SAT (Master Unit and Satellites) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900
    RDR HSx-X2 (Single Product, Dual Hose, One at a Time) 21" x 17.75" 53 x 45   DSW-1922 DSF-1922     SBK-1900

    Gasboy

    Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
    Gasboy in. cm
    0215A, 216A (197/8" Frame / 50.5 mm) 17-1/4" x 19-7/8" 49 x 50.5 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
    52 and 53 Series 17" x 19-7/8" 44 x 50.5 DS-1117F DSW-1117F DP-1117F   DSF-1117F SBK-1100J
    8700, 8800, 9100, 9800 Series 17-1/4" x 25" 44 x 63.5 DS-1120         SBK-1100J
    25" Frame 63.5 mm 17-1/4" x 25" 44 x 63.5
    8700, 8800, 9100, 9800 Series (28-1⁄4" Frame / 72 mm) 17-1/4" x 28" 44 x 71 DS-1123 DSW-1123 DP-1123   DSF-1123F SBK-1100J
    9850A 15-11/16" x 21" 40 x 69 DS-1120 DSW-1120     DSF-1120 SBK-1100J

    * Stabilizer bar is installed widthwise in dispenser sump

    Dresser / Wayne

    Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
    Dresser / Wayne in. cm
    350, 357, 358, 360, 370 Series 15" x 25-7⁄8" 30 x 66 DS-1123F DSW-1123F DP-1123F   DSF-1123F SBK-1100J
    Vista 380 Series (387, 389) 20" x 35" 51 x 89 DS-1229 DSW-1229     DSF-1229 SBK-1200J
    Vista 590 Series (590, 595) 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
    Vista 390 Series (395, 399) 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
    Vista 490 Series 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
    DL390, 395, 399 Series 20" x 48" 51 x 122 DS-1242 DSW-1242     DSF-1242 SBK-1200J
    HS1 Satellite / 287 Series 20" x 35" 51 x 89 DS-1229 DSW-1229     DSF-1229 SBK-1200J
    Ovation 19-1⁄2" x 43-1⁄2" 50 x 110 DS-1543A** DSW-1543 DSW-1543C   FDS-4319* DSF-1543 DSF-1543C SBK-1500
    Select 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928         SBK-1500A
    Global Century 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928         SBK-1500A
    Reliance 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1928         SBK-1500A
    HS4 / HS3 / Vista 19-3⁄8" x 32-5⁄16" 49 x 82 DS-1630 DSW-1630*** DP-1630   DSF-1630*** SBK-1600
    Narrow Frame Helix (2000, 4000) 20" x 33" 51 x 84 DS-1630         SBK-1600
    Wide Frame Helix (5000) 26" x 44" 51 x 112 DS-1741         SBK-1700

    * For FDS-4319 Model use Stabilizer Bar SBO-0250 ** For DS-1543A Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1543 Models use Stabilizer Bar SBK-1500 *** For DS-1928 Model use Stabilizer Bar SBK-1500A; for DSF/DSW-1630 Models use Stabilizer Bar SBK-1600

    Tokheim

      Dispenser Manufacturer & Model Dispenser Footprint Dimensions FlexWorks One-Piece Polyethylene Sump FlexWorks Wide-Access Polyethylene Sump FlexWorks One-Piece Polyethylene Pan FlexWorks One-Piece Fiberglass Sump FlexWorks Wide-Access Fiberglass Sump Stabilizer Bar Kit
    Tokheim in. cm
    1200, 1248, 1250 Series 17-1/4" x 25" 44 x 64 DS-1120 DSW-1120     DSF-1120 SBK-1100J
    330B, 333B Series 17-1/4" x 44" 44 x 112 DS-1642 DSW-1642     DSF-1642 SBK-1600
