Dispenser Pan Fittings and Accessories

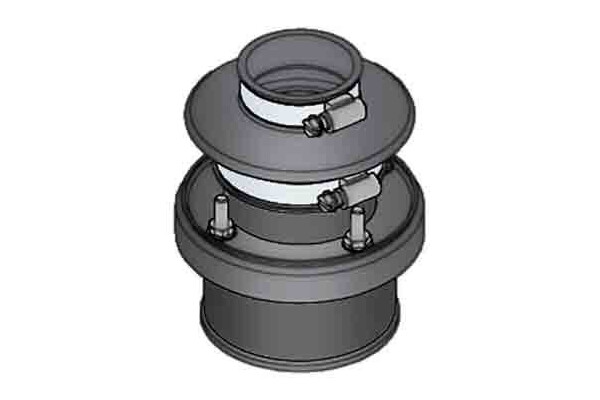

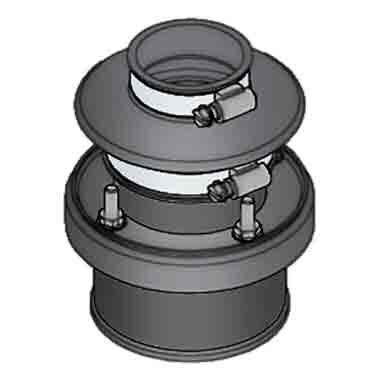

FlexWorks™ Dispenser Pan fittings are installed in the bottom of FlexWorks Dispenser Pans to accommodate Pipe and Flex Connector Entries. "The FIT-3530 and FIT-4530 are used to isolate and contain Flex Connectors."

Recommended products for replacement

    Ordering Information

    Ordering Specifications - Dispenser Pan Fittings and Accessories

    Model Application Nominal Boot I.D. Hole Saw Required Weight
    in. cm lbs. kg
    PEF-3520R Pan Entry Fitting, 2" (5 cm) FRP Pipe Entry 2-3/8 6 3" (8 cm) 2.5 1
    PEF-3515R Pan Entry Fitting, 1.5" (4 cm) Pipe Entry 2 5 3" (8 cm) 2.5 1
    PEF-3515X Pan Entry Fitting, 1.5" (4 cm) Flex Connector (Hex Seal) 2 (Hex) 5 3" (8 cm) 2.5 1
    FIT-3530 Flexible Isolation Jacket, 30" (76 cm) Long x 3.5" (9 cm) I.D.       2 1
    ITR-3015 Isolation Tube Reducer, 3" (7.62 cm) x .5" (1.27 cm)       1 .5
    ITR-3020 Isolation Tube Reducer, 3" (7.62 cm) x 2" (5.08 cm)       1 .5
    Technical Information

    Please CLICK HERE for all technical information.

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    FIT-3530 Flexible Isolation Jacket, 30" (76 cm) Long x 3.5" (9 cm) I.D.
    ITR-3015 Isolation Tube Reducer, 3" (7.62 cm) x .5" (1.27 cm)
    ITR-3020 Isolation Tube Reducer, 3" (7.62 cm) x 2" (5.08 cm)
    PEF-3515R Pan Entry Fitting, 1.5" (4 cm) Pipe Entry
    PEF-3515X Pan Entry Fitting, 1.5" (4 cm) Flex Connector (Hex Seal)
    PEF-3520R Pan Entry Fitting, 2" (5 cm) FRP Pipe Entry
