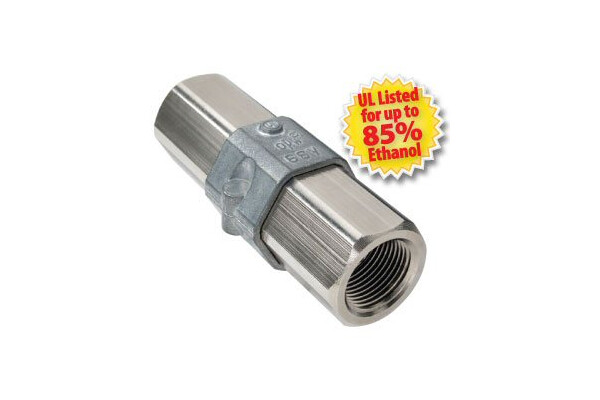

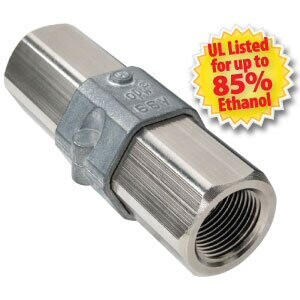

66V-0492 Ethanol Breakaway



The OPW 66V Series breakaways are designed and rigorously tested for use in today's fuels. Installed on fuel dispensing hoses, they will separate at the designed pull force, reducing expensive damage to the dispenser and piping system. Internal dual valves close automatically during separation stopping the flow of fuel from both the dispenser and the separated hose, reducing environmental and health risks of potential spilled fuel.

Features & Benefits
  • UL and ULC listed for use in gasoline, diesel, and up to 10% ethanol blends. See specific listings.
  • Prevents costly damage to dispensers – Pulls apart at less the designed pull force during drive-offs.
  • Certainty of operation – Designed for single use, so you know it is replaced instead of re-assembled.
  • Prevents hazardous and costly clean up – Unique double poppet design closes leak path from both dispenser and separated hose side.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Design working pressure
    50 PSI (3.45 bar) maximum pressure.

    Materials
    Body: aluminium w/ nickel plating
    Seals: Buna-N and Viton®
    Disc & Seals: Viton®
    Weight: 0.60 lbs., 0.27 kg

    Performance

    Listings & Certifications



    Ordering Information
    Item Number

    Size

    Weight

    		 Description - Pull Force

    in.

    mm

    lbs.

    kg
    66V-0492

    3/4" F x 3/4" F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve for up to E85 /No More Than 300 lb.
    66V-0300

    3/4" F x 3/4" F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve / No More Than 300 lb.
    66V-030RF**

    3/4" F x 3/4" F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve / No More Than 300 lb.
    66V-0492*

    3/4" F x 3/4" F (NPT)

    19 F x 19 F

    0.6

    0.27

    		 Valve for up to E85 / No More Than 300 lb.
    66V-1300

    1" F x 1" F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 300 lb.
    66V-130RF***

    1" F x 1" F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 300 lb.
    66V-1350

    1" F x 1" F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 350 lb.
    66V-135RF***

    1" F x 1" F (NPT)

    25 F x 25 F

    0.98

    0.45

    		 Valve / No More Than 350 lb.
    66-0075

    3/4" F x 3/4" M (NPT)

    19 F x 19 M

    1.46

    0.66

    		 Valve w/ 9" Hose / No More Than 300 lb.
    66-1300

    1" F x 1" M (NPT)

    25 F x 25 M

    2.5

    1.13

    		 Valve w/ 12" Hose / Maximum 300 lb.
    66S-0075

    3/4"

    19

    0.2

    0.1

    		 Vinyl Scuff Guard Cover
    66S-1300

    1"

    25

    0.2

    0.1

    		 Vinyl Scuff Guard Cover

    * 66V-0492 is UL Listed for up to 85% Ethanol ** 66V-030RF is UL Listed for up to 25% Ethanol and 20% Biodiesel *** 66V-130RF and 66V-135RF are UL Listed for up to 20% Biodiesel

    66V Series 3/4" Instruction Sheet Order Number: H10993PA
