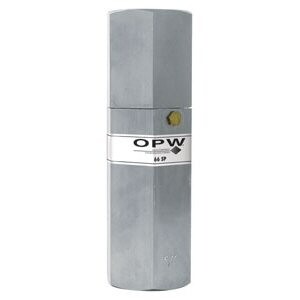

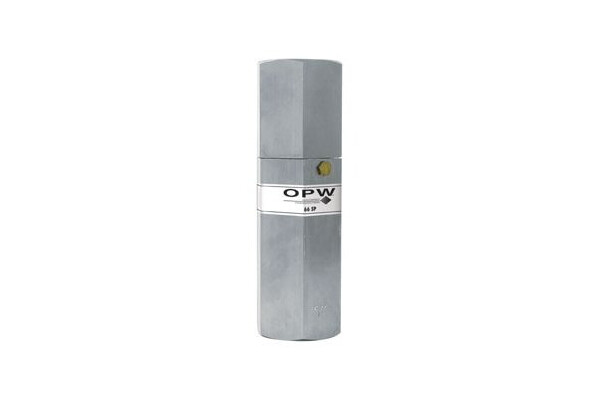

66SP High-Volume Breakaways



The 66SP is designed for installation on fuel dispensing hoses that require a substantial volume of flow, and therefore the potential for a high-volume spill.

The 66SP utilizes shear pin technology to ensure separation at proper pull forces, and limit unwanted valve closures that stop or limit fuel flow. Once separated, a qualified service technician can easily repair the breakaway with an OPW 66PRK Shear Pin Replacement Kit.


Features & Benefits
  • Pull Force - the 66SP will separate with a maximum pull force of 600 lbs., and limits fuel spillage from either hose end.
  • Easily Repaired - after separation, the 66SP can be repaired and put back in service with the OPW 66PRK Shear Pin Replacement Kit.
  • Heavy-Duty Construction - physically designed for durability in high-volume environments, including a protective, red, anodized-aluminum body.
  • Low Pressure Drop - valve design ensures superior flow rate for high-volume fills.
  • Special Seals - special fluorosilicone (66SP-5200 only) O-Rings help protect the valve in harsh, high-volume environments.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Design working pressure

    • 50 psi (3.45 bar) maximum pressure

    Materials

    • Body: Aluminium
    • Seals: Viton®, Buna-N and Flurosilicone
    • Spring: Stainless steel
    • Poppet: Aluminium
    • Weight: 66SP-5150: 1.93 lbs, .87 kg; 66SP-5200: 3.80 lbs, 1.72 kg

    Performance

    Ordering Information
    Item Number Size

    Weight

    A

    B

    lbs.

    kg

    in.

    mm

    in.

    mm
    66SP-5150 1-1/2" (NPT)

    1.93

    0.87

    2-1/4"

    57

    7-5/8"

    194
    66SP-5200 2" (NPT)

    3.80

    1.72

    3-1/2"

    89

    7-3/4"

    197



    Replacement Parts

    Item Number Description
    66PRK-5015 Shear Pin Replacement Kit for 66SP-5150
    66PRK-5020 Shear Pin Replacement Kit for 66SP-5200

    66SP Series Instruction Sheet Order Number: H40128M
