Replacement Spouts



OPW Nozzle Replacement Spouts.

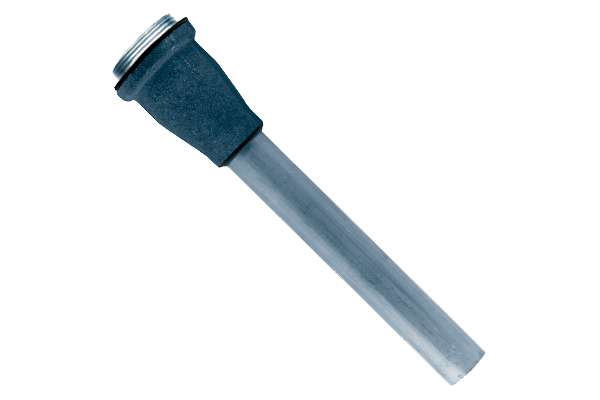

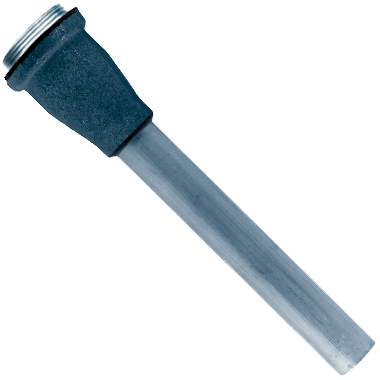

OPW 297SA -9050-.png
OPW 297SA -9050-.png

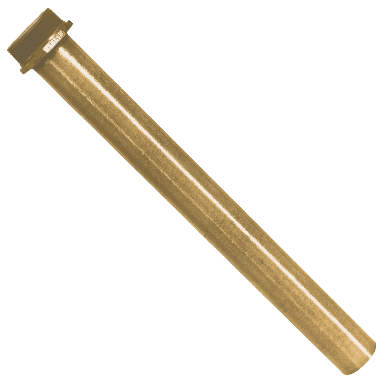

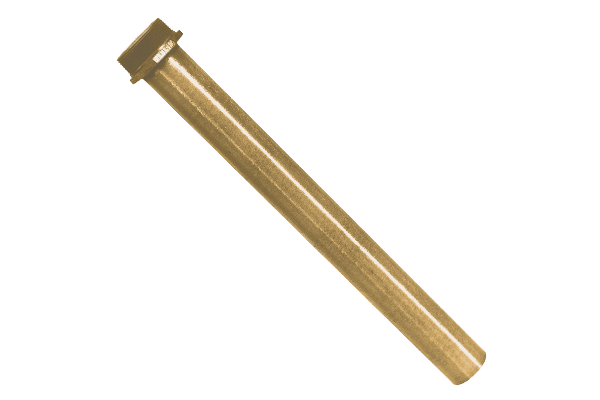

OPW 296.png
OPW 296.png

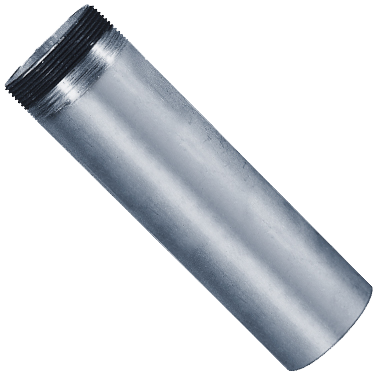

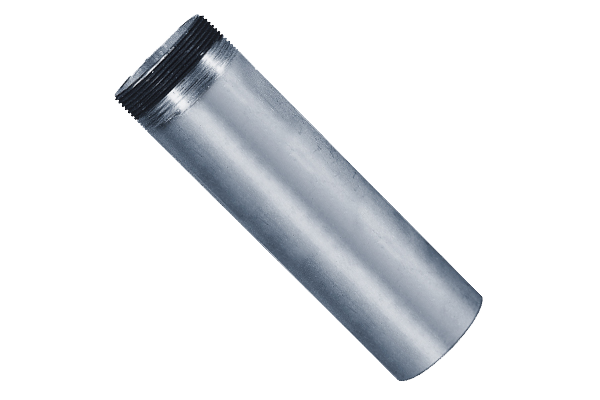

OPW 297.png
OPW 297.png

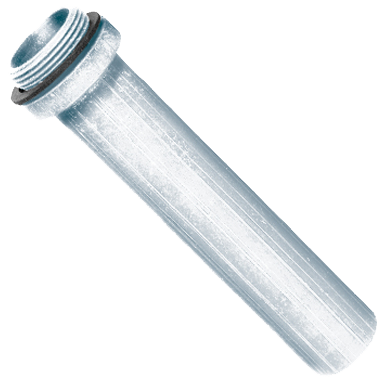

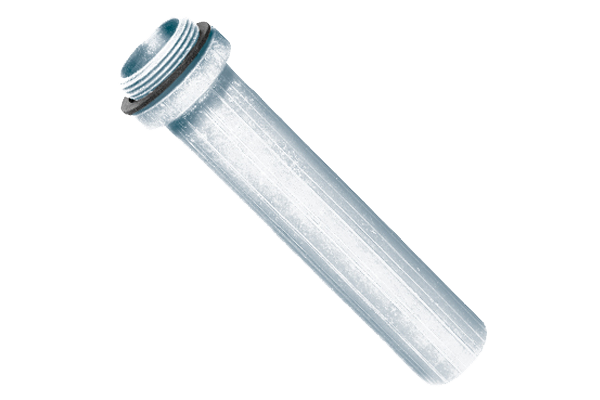

OPW 297SA -9060-.png
OPW 297SA -9060-.png

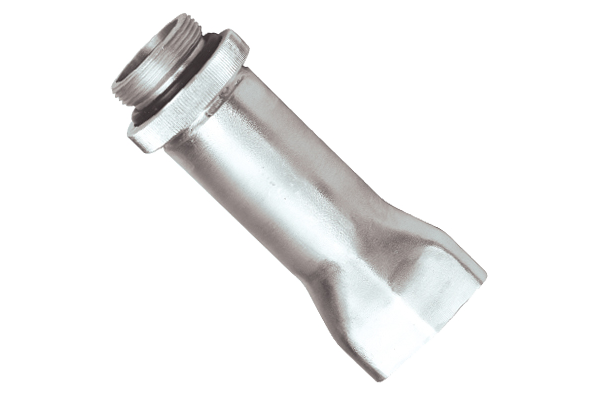

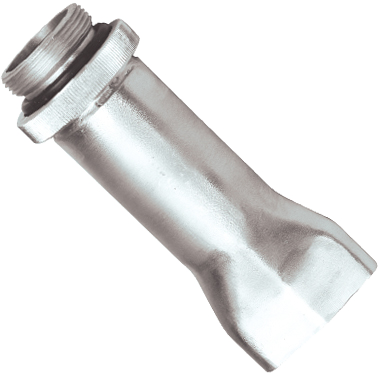

OPW 696J.png
OPW 696J.png
OPW 297SA -9050-.png
OPW 296.png
OPW 297.png
OPW 297SA -9060-.png
OPW 696J.png

Recommended products for replacement

    Ordering Information
    Item

    Size

    O.D.

    Length

    Weight

    		 Used On Description


    in.

    mm

    in.

    mm

    in.

    mm

    lbs.

     kg


    296-0040

    1-1/4" (NPT)

    32

    1-3/8"

    35

    9"

    229

    0.90

    0.41

    		 190-0113; 210-0104; 190-0112 Brass
    296-0060

    1-1/2" (NPT)

    38

    1-3/8"

    35

    9"

    229

    0.98

    0.45

    		 190-0114; 210-0105 Brass
    296-0080

    1-1/2" (NPT)

    38

    1-5/8"

    41

    9"

    229

    1.05

    0.48

    		 190-0114; 210-0105 Brass
    297-9020

    1-1/4" (NPT)

    32

    1-21/32"

    42

    8"

    203

    0.5

    0.23

    		 190-0113; 210-0104; 295SC-0139; 190-0112 Aluminium
    297-9030

    1-1/2" (NPT)

    38

    1-29/32"

    48

    8"

    203

    0.5

    0.27

    		 190-0114; 210-0105; 295SC-0141 Aluminium
    297-9040

    2" (NPT)

    51

    2-3/8"

    60

    9"

    203

    0.8

    0.36

    		 190-0115 Aluminium
    297SA-9050

    1-1/4" (NPSM)

    32

    1"

    25

    7"

    229

    0.6

    0.27

    		 295SA-0135, 0136,0137 & 295SAC-0156 Aluminium
    297SA-9060

    1-1/2" (NPSM)

    38

    1-5/8"

    41

    7"

    178

    0.80

    0.36

    		 295SA-0138, 295SAC-0157, 295SAC-0158 Aluminium
    696J-7010

    1-1/2" (NPSM)

    38

    2-2/3"

    54

    7-1/4"

    184

    0.80

    0.36

    		 295SAJ-0200 Aluminium
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Item Description
    Add Item into Enquiry Cart
    296-0040 Size(1-1/4" (NPT)in / 32mm), O.D.(1-3/8"in / 35mm), Length(9"in / 229mm), Weight(0.9lbs / 0.41kg), Used On(190-0113; 210-0104; 190-0112), Description(Brass)
    296-0060 Size(1-1/2" (NPT)in / 38mm), O.D.(1-3/8"in / 35mm), Length(9"in / 229mm), Weight(0.98lbs / 0.45kg), Used On(190-0114; 210-0105), Description(Brass)
    296-0080 Size(1-1/2" (NPT)in / 38mm), O.D.(1-5/8"in / 41mm), Length(9"in / 229mm), Weight(1.05lbs / 0.48kg), Used On(190-0114; 210-0105), Description(Brass)
    297-9020 Size(1-1/4" (NPT)in / 32mm), O.D.(1-21/32"in / 42mm), Length(8"in / 203mm), Weight(0.5lbs / 0.23kg), Used On(190-0113; 210-0104; 295SC-0139; 190-0112), Description(Aluminium)
    297-9030 Size(1-1/2" (NPT)in / 38mm), O.D.(1-29/32"in / 48mm), Length(8"in / 203mm), Weight(0.5lbs / 0.27kg), Used On(190-0114; 210-0105; 295SC-0141), Description(Aluminium)
    297-9040 Size(2" (NPT)in / 51mm), O.D.(2-3/8"in / 60mm), Length(9"in / 203mm), Weight(0.8lbs / 0.36kg), Used On(190-0115), Description(Aluminium)
    297SA-9050 Size(1-1/4" (NPSM)in / 32mm), O.D.(1"in / 25mm), Length(7"in / 229mm), Weight(0.6lbs / 0.27kg), Used On(295SA-0135, 0136,0137 & 295SAC-0156), Description(Aluminium)
    297SA-9060 Size(1-1/2" (NPSM)in / 38mm), O.D.(1-5/8"in / 41mm), Length(7"in / 178mm), Weight(0.8lbs / 0.36kg), Used On(295SA-0138, 295SAC-0157, 295SAC-0158), Description(Aluminium)
    696J-7010 Size(1-1/2" (NPSM)in / 38mm), O.D.(2-2/3"in / 54mm), Length(7-1/4"in / 184mm), Weight(0.8lbs / 0.36kg), Used On(295SAJ-0200), Description(Aluminium)
