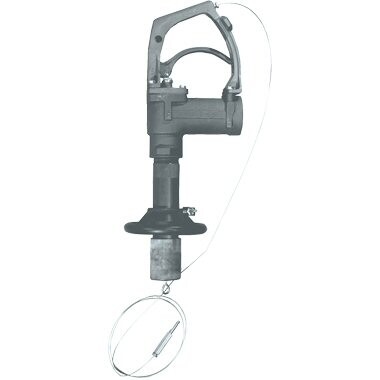

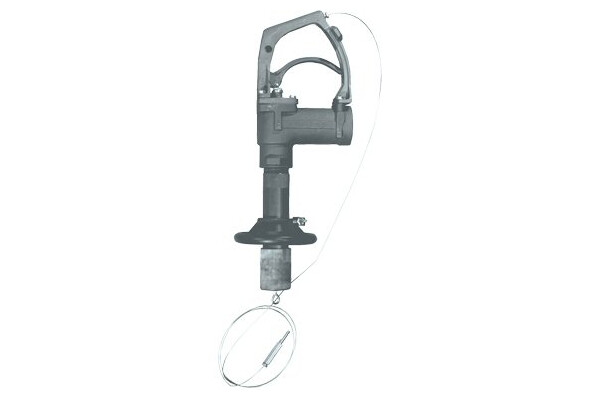

295AF Aircraft Nozzles



For Overwing Aircraft Service.


Features & Benefits
  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - easy-to-open nozzle against high inlet pressures.
  • Replaceable Lever Guard - easy, low-cost replacement.
  • Right Angle Design - provides larger lever area for better grip and easier control.
  • Vinyl-Coated Lever - insulates fingers against cold.
  • 100 Mesh Strainer - prevents foreign matter from entering fuel tank; easy to remove and clean.
  • Dust Cap - keeps spout free from dirt and stops fuel drippage when connected.
  • Spout Protector Ring - to protect aircraft tanks and wing surface; adjustable. Furnished as standard.
  • Special Heavy-Duty Spout - knurled to facilitate daily strainer service.
  • NPT Female Threads at Inlet End - standard pipe threads all 1-1/2" male connections.
  • Static Ground Wire - with air force plug meets MS 25384-5.
  • Dash-Pot Action - for smoother closing action and reduced line shock.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Design working pressure
    110 psi (7.58 bar) maximum pressure

    Materials
    Body: Cast aluminium.
    Main Stem: Stainless steel.
    Stem Seal: Buna-N O-Ring.
    Main Poppet Disc: Viton®.
    Spout: 297AF-9070

    Performance

    Ordering Information
    Item Number

    Inlet Thread

    Weight

    in.

    mm

    lbs.

    kg
    295AF-0100

    1-1/2"

    38

    6.40

    2.90

    Gov’t. Nat’l. Stock #: 4930-01-293-4472

    295 Series Instruction Sheet Order Number: H09237PA

    Replacement Parts

    Item Number Description
    153AF-0100 100 Mesh Strainer
    190WF-8002 Ground Wire S/A w/ Dust Cap
    C03420NM Protector Ring
    C03422 Dust Cap
    297AF-9070 1-1/2" Aluminium Spout for 295AF
    E00274AG Arctic Guard for 295AF

    295SRK Seal Repair Kit

    Designed for use on 25 series swivels and 295 nozzles, the OPW 295SRK consists of a dust seal, 2 O-rings, 3 button-head screws, hex key and thread sealant.

    Item Number Used On
    295SRK-0001 25 and 295 Series 1", 1-1/4" (NPT)
    295SRK-0002 25 and 295 Series 1-1/2" (NPT)

    295SRK Materials

    • Body: electroless nickel-plated
    • Bearings: molded plastic
    • Seals: Buna-N O-Ring, felt dust seal, Viton® O-Ring
