210 High-Flow Nozzles



For High-Flow, Bulk Fuel Oil Delivery Service.

Designed to handle high flow when line pressure is not a critical consideration or otherwise absorbed.

Features & Benefits
  • Aluminium Body - lighter weight, easier to maneuver.
  • Dual Poppets - allows for low-flow metering.
  • Replaceable Hold-Open Rack - for use when fueling large-capacity tanks. Nozzle must be attended at all times during usage.
  • Dash Pot - non-adjustable, to minimize closing line shock.
  • Right Angle Design - provides larger lever area for better grip and easier control; permits nozzle to fit into awkward spaces close to walls and into corners.
  • Drag Lugs - protect the nozzle when dragged across rough surfaces; adds to long life with rough usage.
  • Easily Replaced Spout - the spout is simply threaded into the body. Replacement spouts are readily available from OPW.
  • NPT or BSP Female Threads at Inlet End - standard pipe threads accept all standard 1-1/4" and 1-1/2" male connections.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information

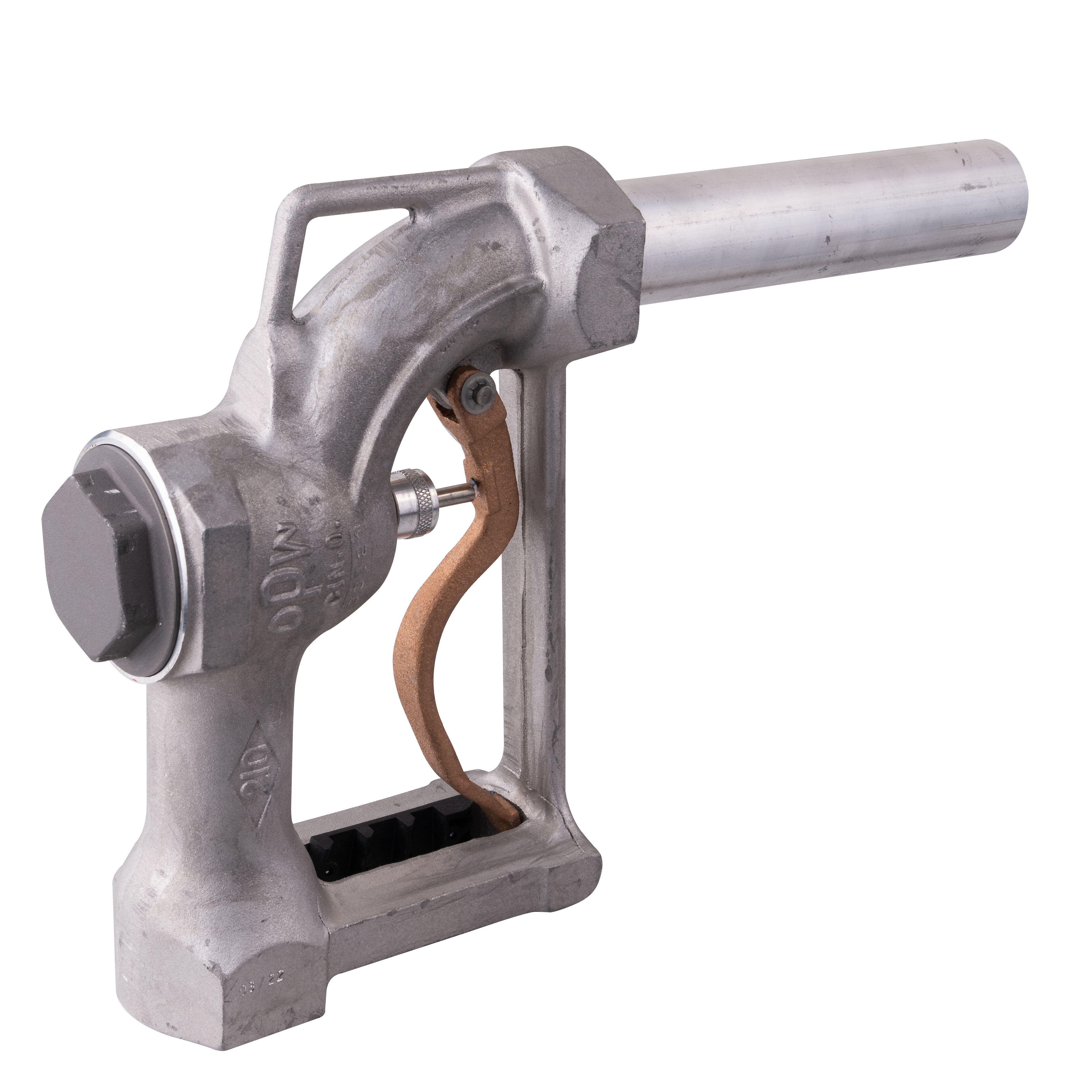

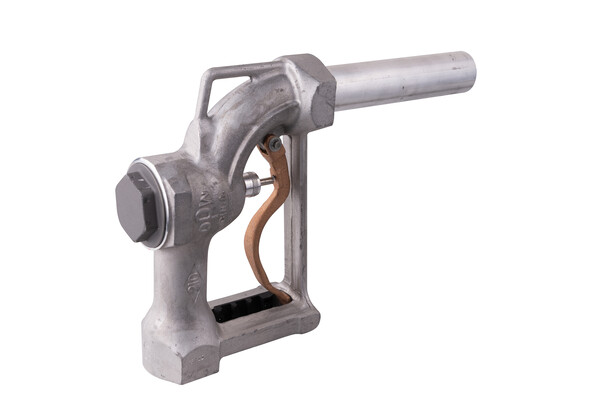

    210L0104LLIQUIP: Nozzle 1 ¼" 210 BSPP W/ Spout.

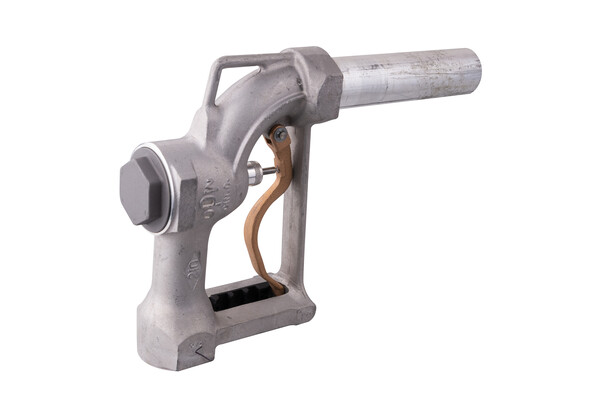

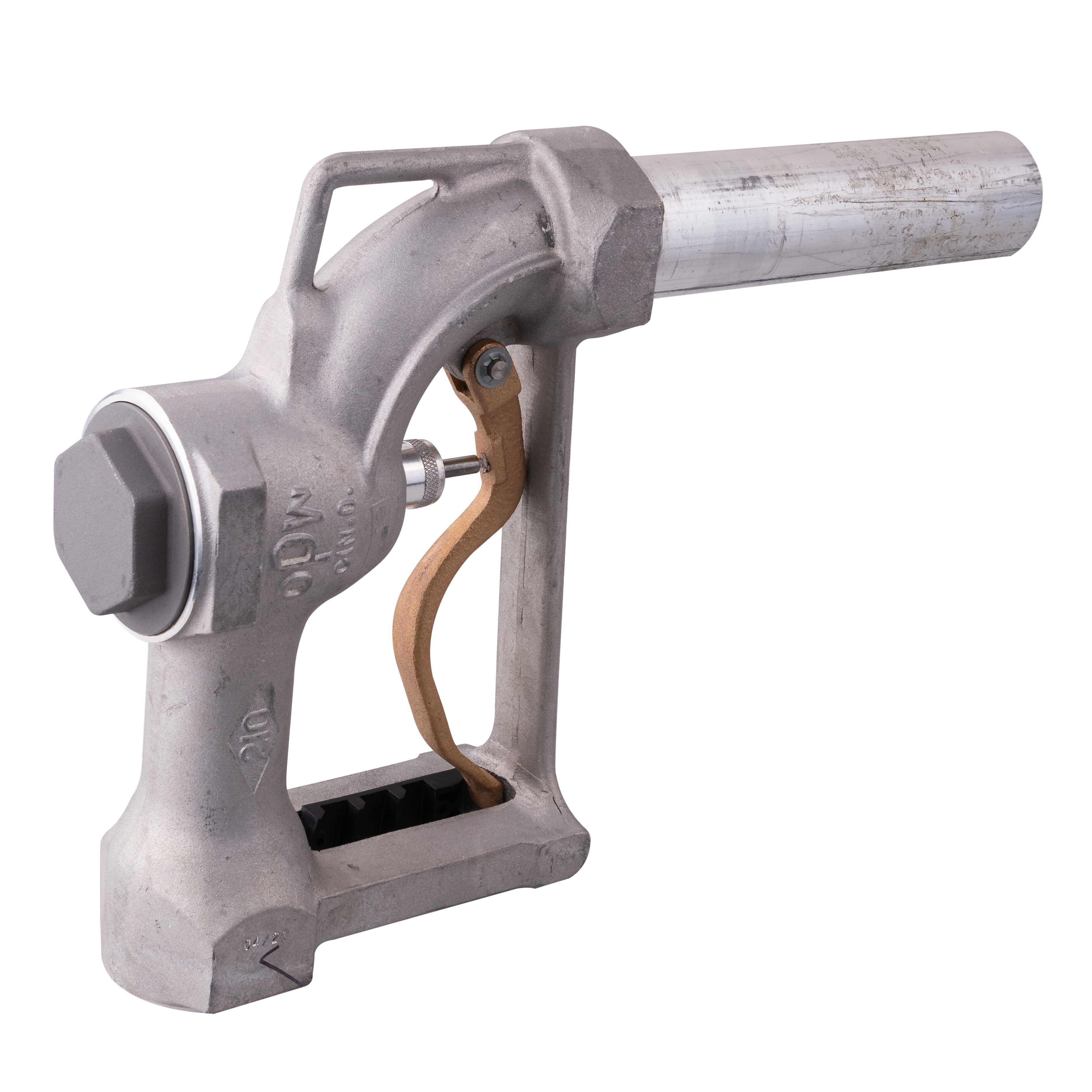

    210L0105LLIQUIP: Nozzle 1½" 210 BSPP W/ Spout.

    LIQ1290L-075L: Nozzle xUTO 1 1/2" BSPP INCLUDES SPOUT OPW

    210-0104: Nozzle  1¼" NPT VITON, NO SPOUT **NPT THREADS**

    210-0105: Nozzle 1½" NPT VITON, NO SPOUT **NPT THREADS**

    Spare Parts

    297-9020: Aluminium Spout 1 ¼" NPT OPW SUIT 190L and 210L series nozzles.

    297-9030: Aluminium Spout 1 ½" NPT OPW SUIT 190L and 210L series nozzles.

    H00195RB: Stuffing Box suit 210 Nozzle

    C04495M: Packing suit 210 Nozzle

    H07012M: Packing gland suit 210 Nozzle

    H01841: Lower Disc S/A suit 210 Nozzle

    190K-0001:Upper Poppet suit 210 Nozzle

    H00999M: Brass Lever suit 210 Nozzle

    H08163M: NUT PUSH TO SUIT THE 190 LEVER

    Technical Information

    Design working pressure
    50 psi maximum pressure.

    Materials
    Body: Cast aluminium.
    Main Stem: Stainless steel.
    Stem Seal: Graphite with Teflon®.
    Disc: Viton®.
    Spout: OPW 296 brass or 297 aluminium (optional).

    Catalog Page

    Performance
