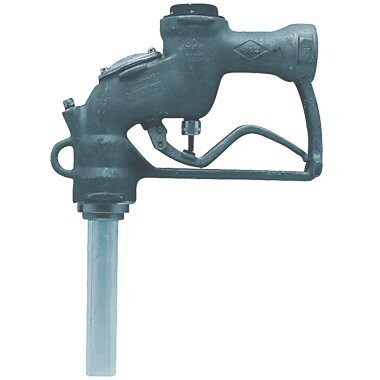

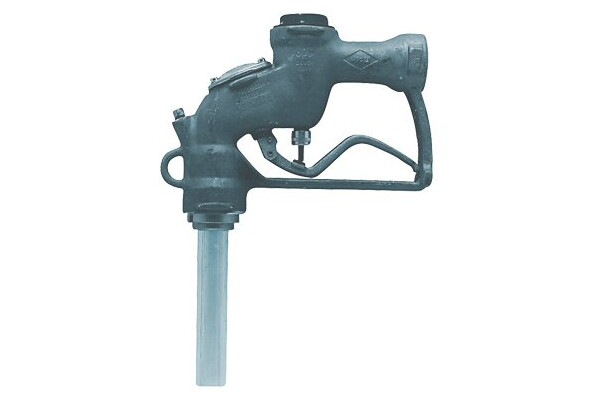

1291 Automatic Shut-Off Nozzles




For Heavy-Duty, High-Flow Truck, Bus and Home Fuel Oil Delivery Service.

Features & Benefits
  • Venturi-Type Shut-Off Mechanism - for automatic shut-off.
  • Aluminum Body - lighter in weight and easier to maneuver than other nozzles on the market.
  • Two-position hold-open device*.
  • One-Hand Control of Hold-Open Mechanism - means easy setting of flow rate.
  • Right Angle Design - provides larger lever area for better grips and easier control, permitting the nozzle to fit into awkward spaces close to walls and into corners.
  • Easily-Replaced Spout - simply remove the spout retainer nut.
  • Built-In Outlet Check Valve - meets all known requirements of the Division of Measurement Standards.
  • Dual Poppets - make nozzle easy to open against high inlet pressure.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Design working pressure

    • 50 psi (3.45 bar) maximum pressure.
    • Service Temperature range: -20º F to 140º F

    Listings and Certifications



    *1291C-0050 ONLY *1291C Nozzles are not permitted and sold with Hold-Open Clips per ULC S620 requirements.

    Materials

    • Body: Aluminium
    • Main stem: Stainless steel
    • Packing: Graphite with Teflon®
    • Main Disc: Viton®
    • Inlet Size: 1-1/2" NPT

    Performance



    Ordering Information

    Ordering Specifications

    Item Description

    Inlet Thread

    Weight

    in.

    mm

    lbs.

    kg
    1290-0050 New

    1½

    38

    6.8

    3.1
    1290-0055 Rebuilt

    1½

    38

    6.8

    3.1
    1291C-0050* New 1½ 38 6.8 3.1
    1290G-0050 New

    1½

    38

    6.8

    3.1
    Note:  *1291C Nozzles are not permitted and sold with Hold-Open Clips per ULC S620 requirements.
    Government National Stock #s:
    • 1290-0050; NSN 4930-01-290-0756
    • 1290G-0050; NSN 4930-01-352-1660 green anodized
    • 1290GS-0050; NSN 4930-01-352-1661 tan anodized
    • (1290GS-AR50; tan anodized without kamlok coupler and dust plug)
