Gantry Plugs & Cables (mil spec) - GPx14

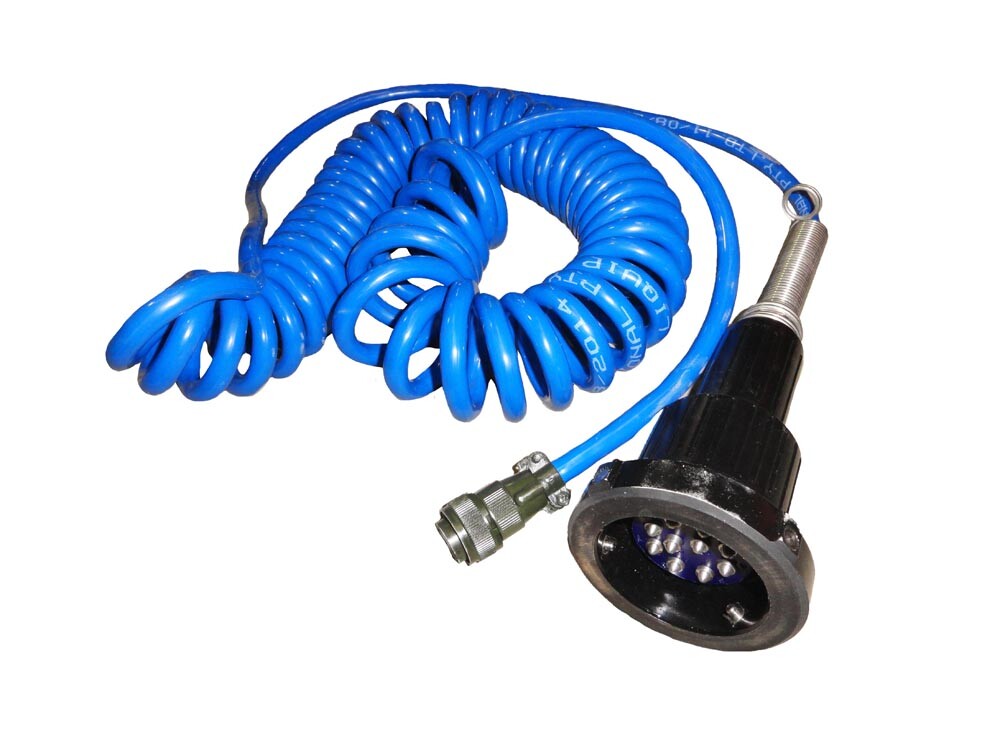

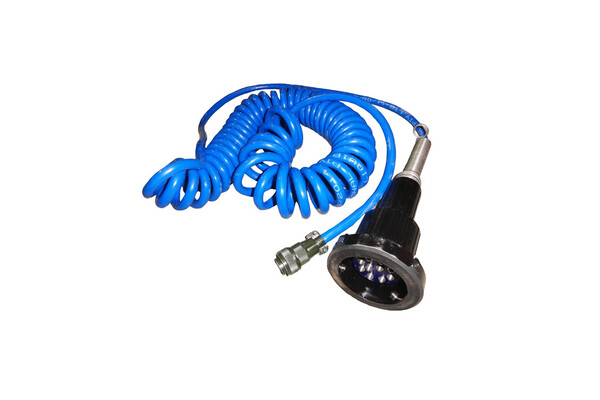

The GPx14 is a 4 pin gantry plug which comes a mil spec plug to allow for quick connection/disconnection.

The GPx14 is designed for use with common industry overfill protection monitors and vehicles including the Liquip RM140 “Overfill Monitor”.

Features & Benefits
  • Quick disconnect gantry plug for overfill monitors.
  • Allows customers to exchange suspected faulty or damaged gantry plugs without needing an electrician.
  • Cater for up to 8 compartments with 2-wire probes.
  • Acts as a break-away junction if drivers fail to disconnect gantry plugs and just drives away.
  • Cable is ten-core either self-coiling or 8m long uncoiled, both with petroleum-resistant outer.
  • Each core is 32 strand tinned copper.
  • Robust petroleum-resistant housing which can withstand harsh environments.
  • High-visibility cable for ease of visibility and safety.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Cable specifications
    Resistance R = 0.0178 /m.
    Capacitance C = 45 pF/m.
    Inductance L = 0.325 FH/m.

    Materials
    -Aluminium Quick Release plug.
    -Polyurethane socket body.
    -Stainless steel pins and fittings.
    -10 core cable, outer polyurethane.

    Weight
    4kg (complete kit).

    Ordering Information

    GP114: 4 pin gantry plug with self coiling cable.(Quick Release).

    GP214: 4 pin gantry plug with 8m uncoiled cable. (Quick Release).

    Associated Equipment

    RM140: Overfill Protection & Grounding Monitor.

    Liquip TP series of truck plug.
