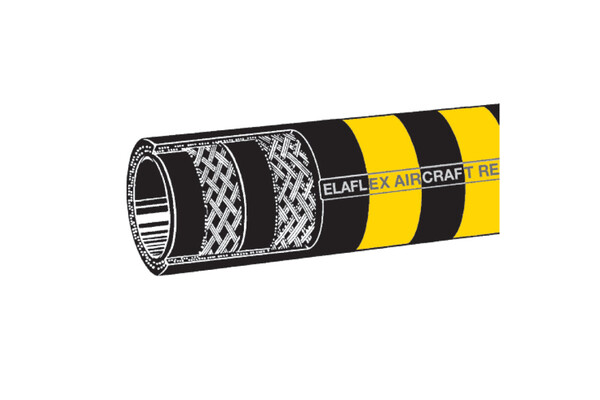

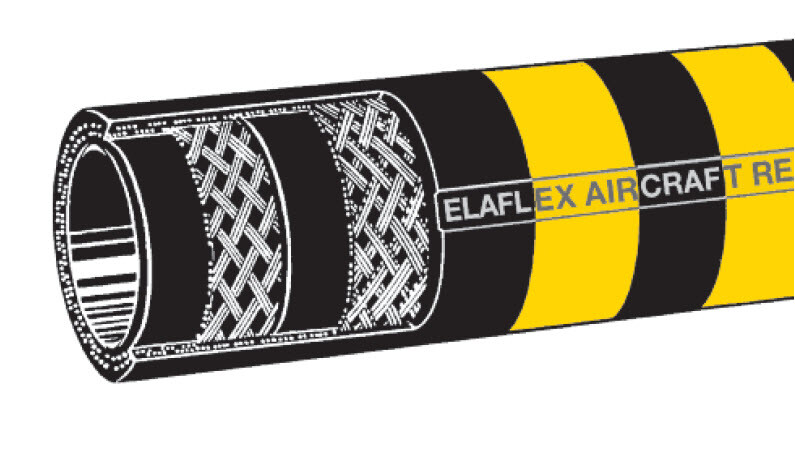

Elaflex Aviation Hose



Yellow band aircraft refuelling hoses, suitable for all aviation gasoline and jet fuels (JET-A1), anti-icings fluids and motor oils.

Specified by almost all major oil companies.

NOTE: Not for suction. Burst pressure > 80 bar / 1200psi.
the hose does not kink with a permanent pressure of at least 0.5 bar.

Note: Liquip can only ship Elaflex Parts to Australia, New Zealand and the Pacific Islands.

Features & Benefits
  • Elaflex standard type "HD-C" with two textile braids.
  • Light weight, flexible hose for all purposes.
  • Holds various European, Australian and American approvals.
  • Full coils of hose are offered or cut lengths can be provided upon request.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Temperature Range
    -30oC up to +70oC.

    Electrical Resistance
    Between 103 and 106 Ohm.

    Lining
    Nitrile rubber (NBR) seamless tube, anitstatic, no fuel solubility.

    Reinforcement
    Textile braids without metallic strands.

    Cover
    Chloroprene (CR), electrically conductive, ozone and flame resistant, highly abrasion resistant.

    Approvals
    Approved to EI1529 C, EN1361 (European), AS2683 (Australian), NFPA 407 and API1529 (American) standards.

    Ordering Information
    Part Hose Size ID (inches) Hose Size ID (mm) Hose Size OD (mm) Working Pressure (bar) Test Pressure (bar) Max Vacuum (bar) Min Reel Diametered (mm) Coil Length Options (m) Approx Weight (kg/m)

    3343 1 25 37 20 40 0.5 200 30, 40, 50,60,80 0.8
    3344 1 ¼ 32 44 20 40 0.4 225 30, 40, 50,60,80 1.0
    3345 1 ½ 38 51 20 40 0.3 270 30, 40, 50,60,80 1.2
    3346 2 50 66 20 40 0.3 400 30, 40, 50,60,80 1.9
    3347 2 ½ 63 79 20 40 0.2 600 30, 40 2.4
    3348 3 75 91 20 40 - 600 40 2.8
    3349 4 100 117 20 40 - 900 40 3.7
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    3343 Hose Size ID (1in / 25mm), Hose Size OD (37mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.5bar), Min Reel Diametered (200mm), Coil Length (30, 40, 50, 60, 80(m)), Approx Weight (0.8kg/m)
    3344 Hose Size ID (1 ¼in / 32mm), Hose Size OD (44mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.4bar), Min Reel Diametered (225mm), Coil Length (30, 40, 50, 60, 81(m)), Approx Weight (1kg/m)
    3345 Hose Size ID (1 ½in / 38mm), Hose Size OD (51mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.3bar), Min Reel Diametered (270mm), Coil Length (30, 40, 50, 60, 82(m)), Approx Weight (1.2kg/m)
    3346 Hose Size ID (2in / 50mm), Hose Size OD (66mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.3bar), Min Reel Diametered (400mm), Coil Length (30, 40, 50, 60, 83(m)), Approx Weight (1.9kg/m)
    3347 Hose Size ID (2 ½in / 63mm), Hose Size OD (79mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (0.2bar), Min Reel Diametered (600mm), Coil Length (30, 40(m)), Approx Weight (2.4kg/m)
    3348 Hose Size ID (3in / 75mm), Hose Size OD (91mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (-bar), Min Reel Diametered (600mm), Coil Length (40(m)), Approx Weight (2.8kg/m)
    3349 Hose Size ID (4in / 100mm), Hose Size OD (117mm), Working Pressure (20bar), Test Pressure (40bar), Max Vacuum (-bar), Min Reel Diametered (900mm), Coil Length (40(m)), Approx Weight (3.7kg/m)
