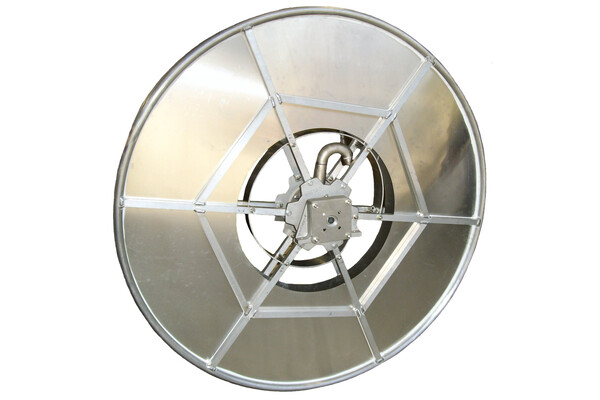

Aviation Hose Reel Cartwheel Style - AHR250 Series



The AHR250 series cartwheel style hosereels are suitable for aviation fuels. They can cover a large number of sizes, variations and options.

The reels are available in various diameters and widths to accommodate a large range of hose diameters and lengths, with or without hose beads/protection rings.

Features & Benefits
  • Open frame design or with side infill panels.
  • Can incorporate a hose guide or "chute" and nozzle stowage.
  • Interlocks can be added to prevent drive away accidents and product spills.
  • Easy operation - Just unhook nozzle and dispense hose to the required location.
  • Rewinds options are hydraulic motor or hand/manual rewind.

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Technical Information

    Sizes
    Hose size: 1", 1 1/4", 1 1/2" and 2" nominal bore.
    Rewind type: manual or hydraulic.
    Cartwheel lining for hoses with wear beads.
    Please refer to ordering information for more options.
    Custom design is available.

    Pressure
    Rated to 2,100kPa.

    Servicing
    Annually remove and repack bearing on the inlet side of the reel.

    Mounting
    Support frame not supplied.
    Inlet flange is to suit 75mm (3") TTMA - 8 off 3/8" BSW x 25mm deep blind threads on a 124 PCD.

    Weight
    37kg.

    Materials
    Aluminium cart wheels and drum, nickel plated steel gooseneck and Viton seals.

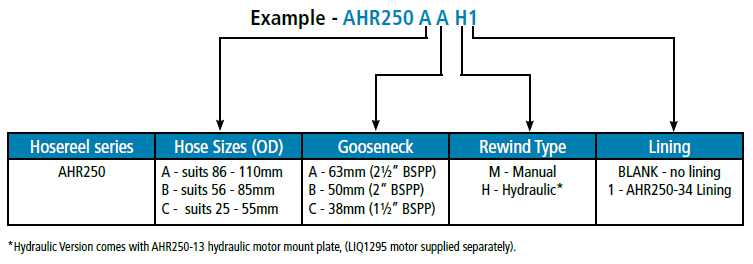

    Ordering Information

    Note: Electric available as an assembly

    AHR250A: Hosereel suit hose sizes from 86mm to 110mm OD and will accept 2" (50mm) ID hoses with hose beads.

    AHR250B: Hosereel suits hoses sizes from diameter 56 mm to 85mm OD and will accept 1 1/4" (32mm) ID and 1 1/2" (38mm) ID hoses with hose beads, or 2" (50mm) ID hoses without hose beads.

    AHR250C: Hosereel suits hose sizes from diameter 25mm to 55mm OD and will accept 1 1/4" (32mm) ID and 1 1/2" (38mm) ID hoses without hose beads.

    Resources
    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    AHR250ABE Hose Size(86-110mm), Gooseneck(50mm), Rewind(Electric), No Lining
    AHR250ABEL Hose Size(86-110mm), Gooseneck(50mm), Rewind(Electric), Lining
    AHR250ABH Hose Size(86-110mm), Gooseneck(50mm), Rewind(Hydraulic), No Lining
    AHR250ABHL Hose Size(86-110mm), Gooseneck(50mm), Rewind(Hydraulic), Lining
    AHR250ABM Hose Size(86-110mm), Gooseneck(50mm), Rewind(Manual), No Lining
    AHR250ABML Hose Size(86-110mm), Gooseneck(50mm), Rewind(Manual), Lining
    AHR250ACE Hose Size(86-110mm), Gooseneck(38mm), Rewind(Electric), No Lining
    AHR250ACEL Hose Size(86-110mm), Gooseneck(38mm), Rewind(Electric), Lining
    AHR250ACH Hose Size(86-110mm), Gooseneck(38mm), Rewind(Hydraulic), No Lining
    AHR250ACHL Hose Size(86-110mm), Gooseneck(38mm), Rewind(Hydraulic), Lining
    AHR250ACM Hose Size(86-110mm), Gooseneck(38mm), Rewind(Manual), No Lining
    AHR250ACML Hose Size(86-110mm), Gooseneck(38mm), Rewind(Manual), Lining
    AHR250BBE Hose Size(56-85mm), Gooseneck(50mm), Rewind(Electric), No Lining
    AHR250BBEL Hose Size(56-85mm), Gooseneck(50mm), Rewind(Electric), Lining
    AHR250BBH Hose Size(56-85mm), Gooseneck(50mm), Rewind(Hydraulic), No Lining
    AHR250BBHL Hose Size(56-85mm), Gooseneck(50mm), Rewind(Hydraulic), Lining
    AHR250BBM Hose Size(56-85mm), Gooseneck(50mm), Rewind(Manual), No Lining
    AHR250BBML Hose Size(56-85mm), Gooseneck(50mm), Rewind(Manual), Lining
    AHR250BCE Hose Size(56-85mm), Gooseneck(38mm), Rewind(Electric), No Lining
    AHR250BCEL Hose Size(56-85mm), Gooseneck(38mm), Rewind(Electric), Lining
    AHR250BCH Hose Size(56-85mm), Gooseneck(38mm), Rewind(Hydraulic), No Lining
    AHR250BCHL Hose Size(56-85mm), Gooseneck(38mm), Rewind(Hydraulic), Lining
    AHR250BCM Hose Size(56-85mm), Gooseneck(38mm), Rewind(Manual), No Lining
    AHR250BCML Hose Size(56-85mm), Gooseneck(38mm), Rewind(Manual), Lining
    AHR250CBE Hose Size(25-55mm), Gooseneck(50mm), Rewind(Electric), No Lining
    AHR250CBEL Hose Size(25-55mm), Gooseneck(50mm), Rewind(Electric), Lining
    AHR250CBH Hose Size(25-55mm), Gooseneck(50mm), Rewind(Hydraulic), No Lining
    AHR250CBHL Hose Size(25-55mm), Gooseneck(50mm), Rewind(Hydraulic), Lining
    AHR250CBM Hose Size(25-55mm), Gooseneck(50mm), Rewind(Manual), No Lining
    AHR250CBML Hose Size(25-55mm), Gooseneck(50mm), Rewind(Manual), Lining
    AHR250CCE Hose Size(25-55mm), Gooseneck(38mm), Rewind(Electric), No Lining
    AHR250CCEL Hose Size(25-55mm), Gooseneck(38mm), Rewind(Electric), Lining
    AHR250CCH Hose Size(25-55mm), Gooseneck(38mm), Rewind(Hydraulic), No Lining
    AHR250CCHL Hose Size(25-55mm), Gooseneck(38mm), Rewind(Hydraulic), Lining
    AHR250CCM Hose Size(25-55mm), Gooseneck(38mm), Rewind(Manual), No Lining
    AHR250CCML Hose Size(25-55mm), Gooseneck(38mm), Rewind(Manual), Lining
