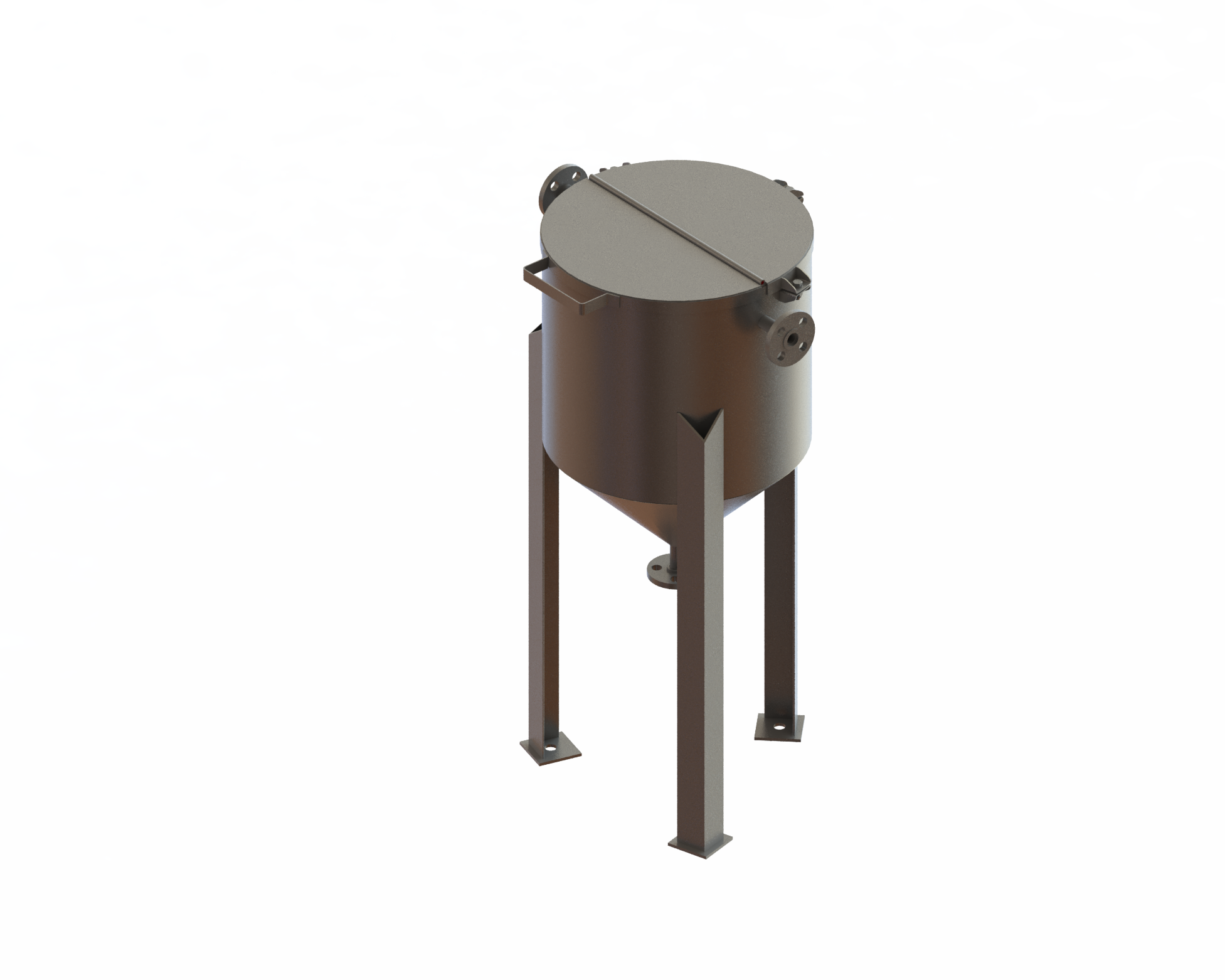

Quick Flush/Dewatering/Fast Flush Tank - 50L



Liquip’s 50L Quick Flush Tank, also commonly referred to as a Dewatering Tank or Tundish tank is designed to support fuel quality control, fluid sampling and testing in fuel systems.

These tanks are commonly installed within the wider refueling system and allow for the safe collection of fuel samples and visual product inspection.

Operators can easily observe water bubbles or contaminants during fluid transfer and can easily extract samples to ensure delivered product aligns with required standards.

Liquip’s 50L Tank design is well suited for small fuel inspection,
product handling or waste fluid applications and can be used in a range of industries including aviation fuels, petrochemicals, water treatment, power generation and hydro power.

Designed with a small footprint and convenient means of visual
identification of fluid, these tanks can be easily maneuvered on site, and are ideal where available space may be limited such as small bunded areas.

Recommended products for replacement

Categories
Features & Benefits
  • Prefabricated construction with no bolted parts means these tanks are ready for immediate installation.
  • Hinged lid on the top of the tank for convenient visual inspection.
  • Optional Locking latch
  • Stainless steel construction for superior product compatibility.
  • ASME150# RF flanged nozzles as standard.
Technical Information
Quick Flush/Dewatering/Fast Flush Tank - 50L
Mounting Type 10 mm thick base plates.
Ø18 mounting holes on all base plates.essure
Overall Reference Dimensions • Height (Closed) – 950 mm.
• Between Flanges – 540mm face to face.
• Ground Mounting Bolts P.C.D. – 400 mm.
• Base Plate Hole Size – Ø18 Diameter.
Pressure Details Unpressurized, open tank.
Leak tested.
Volume 50 litres.
Other sizes and designs available upon request to suit different volumes.
Weight 23kg (Approximately).
Inlet/Outlet
15NB ASME150# RF weld neck flange connections.
Materials Stainless Steel 316, can be manufactured in 304 upon request.
Pickled and passivated.



Ordering Information

Contact Liquip for ordering information.

Associated Equipment
  • Aljac Sampler and attachments.
  • Aljac Sampler Cage/Support.
  • Apollo Valves.
  • Valves and blanking plates.
