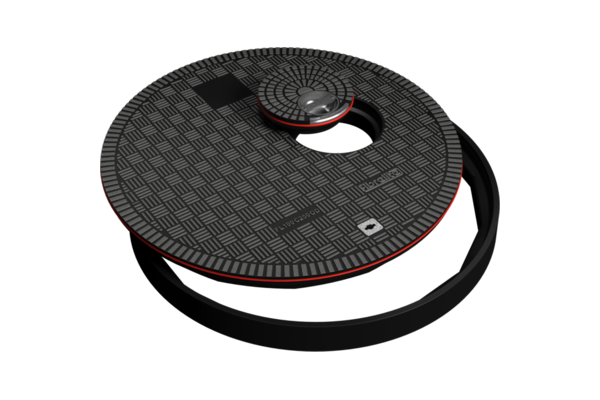

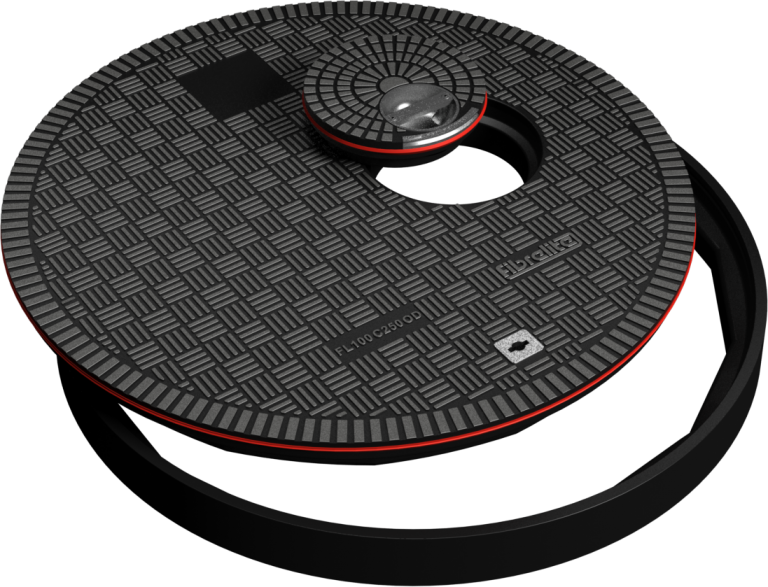

1020mm Diameter Flat Sealed Cover and Frame with Offset Lid



Liquip offer the 1020mm (40″) Diameter Flat Sealed Cover and Frame. These are supplied with a offset lid and port cover (FC254/10) for either Offset fill or Offset Dip applications.

Cover sizes relate to clear opening of frame.

All covers have a standard load rating of C250 (25 tonnes).
Heavy duty D400 (40 tonnes) versions are available.

Features & Benefits
  • Lightweight – no lifting injuries
  • Ergonomic, single person removal and replacement with Fibrelite lifting handle
  • Load ratings from B125 to F900 (EN 124)
  • Will not corrode
  • Watertight with proven performance under load
  • Unaffected by underground gases and most chemicals
  • Round, square and rectangular (wide range of sizes)
  • No bolts required
  • Anti-slip surface – no costly injury claims
  • Conductive and non-conductive available
  • Monolithic structure eliminates delaminating
  • Available in any colour – UV stable so will not flake or crack
  • UK manufacturing facility ISO 9001: 2015 accredited
  • Excellent insulator against heat
  • Eliminates risk of theft due to no scrap/resale value
  • Securing systems available

ADD TO ENQUIRY CART  REQUEST A QUOTE

Recommended products for replacement

    Ordering Information

    FL100-OF275: 1020mm Cover with an offset port, port cover (FC254/10) and frame c/w 275mm (11″) Offset Fill.

    FL100-OD: 1020mm Cover with an offset port, port cover (FC254/10) and frame c/w 203mm (8″) Offset Dip.

    FL100-OF8: 1020mm Cover with an offset port, port cover (FC254/10) and frame c/w 203mm (8″) Offset Fill.

    Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
    Submit Enquiry
    Submit a product Enquiry / Quote to Liquip customer service
    Save as Wishlist
    Save as Wishlist - handy function for account holders
    Send to a Friend
    Send you selection of products to a friend via a convenient email link
    Image Item Description
    Add Item into Enquiry Cart
    FL100-OD 1020mm Cover with an offset port, port cover (FC254/10) and frame c/w 203mm (8″) Offset Dip.
    FL100-OF275 1020mm Cover with an offset port, port cover (FC254/10) and frame c/w 275mm (11″) Offset Fill.
    FL100-OF8 1020mm Cover with an offset port, port cover (FC254/10) and frame c/w 203mm (8″) Offset Fill.
