Pipe Couplers



We have a coupler that is engineered to meet your needs. A variety of styles include the Bolt Together, Easy Opening and a Durable LST coupler.

We have developed a solution for your most common problem – coupler freeze up. The solution is oil impregnated bronze bushings at critical hinge points. Another added solution from Civacon to solve your common problems.

Pipe Couplers
Pipe Couplers 2
Pipe Couplers 3

Features & Benefits

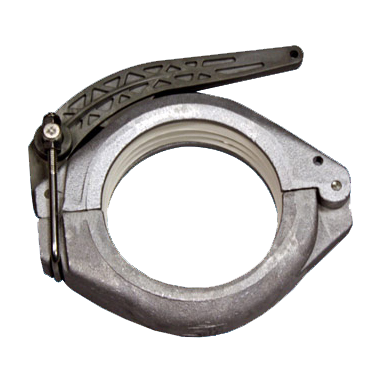

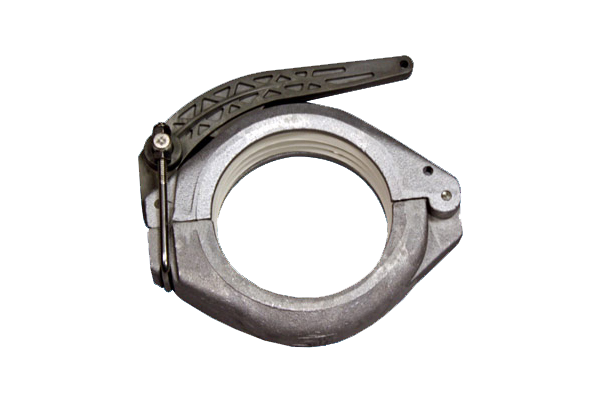

Aluminum Quick Release Coupler

  • Oil impregnated bronze bushings
  • Completely made from stainless steel and aluminum for superior corrosion resistance and light weight
  • With no void areas in the gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
  • Most band clamps are rated at 10 psi, where Civacon couplers are rated at 50 psi

LST Coupler

  • Clean seal gaskets are easy to install and replace
  • White gaskets are special formulated for dry bulk applications where F.D.A. approval is required
  • Black gaskets are specially formulated for petroleum products, while red gaskets are for high temp applications up to 400 degrees Fahrenheit
  • With no void areas in gasket there is no place for contamination to hide - a quick disassembly and visual inspection is all that is necessary
  • 40% lighter than comparable couplers
  • Stronger than standard aluminum couplers
  • Tougher on corrosion

Ordering Information

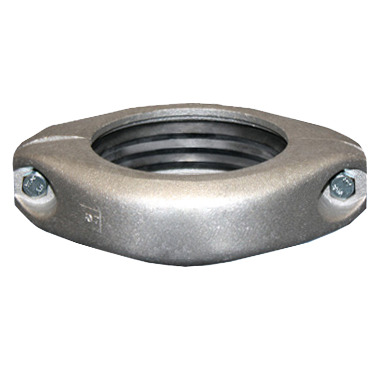

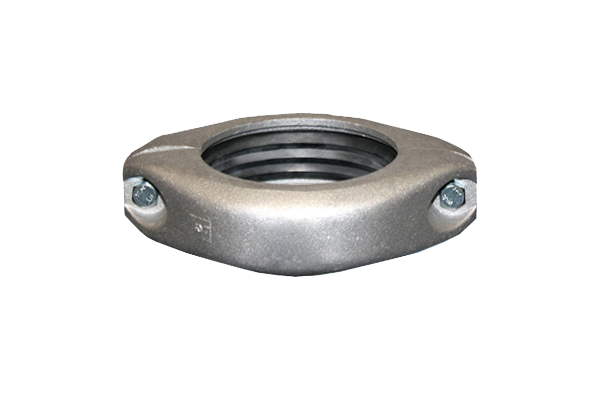

Bolt Together Coupler

432B: 3” Aluminium Bolt-Together Coupler Black Nitrile Gasket

432W: 3” Aluminium Bolt-Together Coupler White Neoprene Gasket

432V: 3” Aluminium Bolt-Together Coupler Viton Gasket

435B: 4” Aluminium Bolt-Together Coupler Black Nitrile Gasket

435W: 4” Aluminium Bolt-Together Coupler White Neoprene Gasket

435V: 4” Aluminium Bolt-Together Coupler Viton Gasket

634B: 4” Aluminium Bolt-Together Standard Coupler Black Nitrile Gasket

634W: 4” Aluminium Bolt-Together Standard Coupler White Neoprene Gasket

Aluminium Quick Release Coupler

632GGB: 3” Aluminium Coupler Groove to Groove Black Nitrile Gasket

632GGW: 3” Aluminium Coupler Groove to Groove White Neoprene Gasket

632GGR: 3” Alumiinum Coupler Groove to Groove High Temp, Gasket

632GGV: 3” Aluminium Coupler Groove to Groove Viton Gasket

635GGB: 4” Aluminium Coupler Groove to Groove Black Nitrile Gasket

635GGW: 4” Aluminium Coupler Groove to Groove White Neoprene Gasket

635GGR: 4” Aluminium Coupler Groove to Groove High Temp, Gasket

637GGB: 5” Aluminium Coupler Groove to Groove Black Nitrile Gasket

637GGW: 5” Aluminium Coupler Groove to Groove White Neoprene Gasket

637GGR: 5” Aluminium Coupler Groove to Groove High Temp, Gasket

639GGB: 6” Aluminium Coupler Groove to Groove Black Nitrile Gasket

639GGW: 6” Aluminium Coupler Groove to Groove White Neoprene Gasket

639GGR: 6” Aluminium Coupler Groove to Groove High Temp, Gasket

635GPB: 4” Aluminium Coupler Groove to Plain Black Nitrile Seat

635GPW: 4” Aluminium Coupler Groove to Plain White Neoprene Gasket

635GPR: 4” Aluminium Coupler Groove to Plain High Temp. Gasket

635PPB: 4” Aluminium Coupler Plain to Plain Black Nitrile Gasket

635PPW: 4” Aluminium Coupler Plain to Plain White Neoprene Gasket

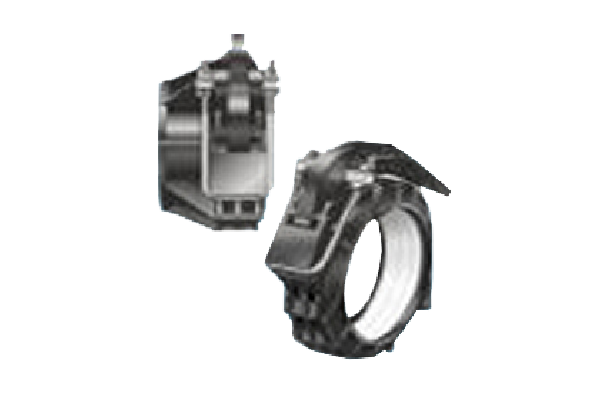

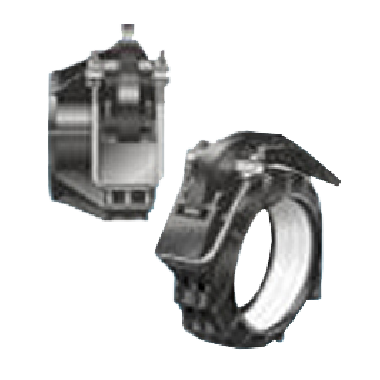

LST Couplers

LST735GGW: 4”Plastic Coupler w/Stainless Steel Hardware Groove to Groove

LST735GPW: 4” Plastic Coupler w/Stainless Steel Hardware Groove to Plain

LST735PPW: 4” Plastic Coupler w/Stainless Steel Hardware Plain To Plain

Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
ALUMINIUM QUICK RELEASE COUPLER
632GGB 3” Aluminium Coupler Groove to Groove Black Nitrile Gasket
632GGW 3” Aluminium Coupler Groove to Groove White Neoprene Gasket
632GGR 3” Alumiinum Coupler Groove to Groove High Temp, Gasket
632GGV 3” Aluminium Coupler Groove to Groove Viton Gasket
635GGB 4” Aluminium Coupler Groove to Groove Black Nitrile Gasket
635GGW 4” Aluminium Coupler Groove to Groove White Neoprene Gasket
635GGR 4” Aluminium Coupler Groove to Groove High Temp, Gasket
637GGB 5” Aluminium Coupler Groove to Groove Black Nitrile Gasket
637GGW 5” Aluminium Coupler Groove to Groove White Neoprene Gasket
637GGR 5” Aluminium Coupler Groove to Groove High Temp, Gasket
639GGB 6” Aluminium Coupler Groove to Groove Black Nitrile Gasket
639GGW 6” Aluminium Coupler Groove to Groove White Neoprene Gasket
639GGR 6” Aluminium Coupler Groove to Groove High Temp, Gasket
635GPB 4” Aluminium Coupler Groove to Plain Black Nitrile Seat
635GPW 4” Aluminium Coupler Groove to Plain White Neoprene Gasket
635GPR 4” Aluminium Coupler Groove to Plain High Temp. Gasket
635PPB 4” Aluminium Coupler Plain to Plain Black Nitrile Gasket
635PPW 4” Aluminium Coupler Plain to Plain White Neoprene Gasket
BOLT TOGETHER COUPLER
432W 3” Aluminium Bolt-Together Coupler White Neoprene Gasket
432V 3” Aluminium Bolt-Together Coupler Viton Gasket
435B 4” Aluminium Bolt-Together Coupler Black Nitrile Gasket
435W 4” Aluminium Bolt-Together Coupler White Neoprene Gasket
435V 4” Aluminium Bolt-Together Coupler Viton Gasket
634B 4” Aluminium Bolt-Together Standard Coupler Black Nitrile Gasket
634W 4” Aluminium Bolt-Together Standard Coupler White Neoprene Gasket
432B 3” Aluminium Bolt-Together Coupler Black Nitrile Gasket
LST COUPLERS
LST735GGW 4”Plastic Coupler w/Stainless Steel Hardware Groove to Groove
LST735GPW 4” Plastic Coupler w/Stainless Steel Hardware Groove to Plain
LST735PPW 4” Plastic Coupler w/Stainless Steel Hardware Plain To Plain
