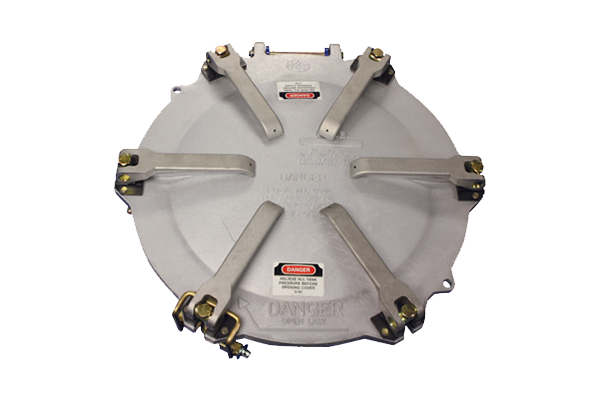

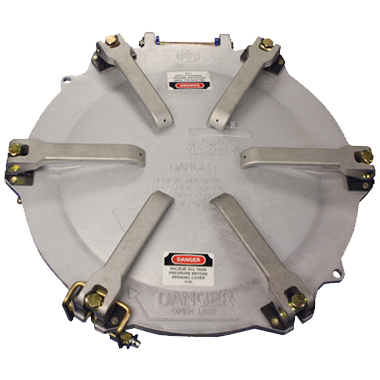

LM Manholes



LM series dry bulk manhole covers allow safe and easy access for loading, inspection and cleaning of dry bulk tanks. These quick opening manholes are compliant to 49 CFR 178.345-5 and AS1210 for use in dry bulk applications.

LM series hatches have set the standard for cost effective, efficient and reliable operation in a wide range of handling applications  including salt, cement, dry food products, sand, chemicals, crude oil and other general applications with a rated working pressure of 207 kPa (30 psi).

Features & Benefits
  • AS1210 compliant.
  • 6 quick-opening adjustable cam levers.
  • Open rib cover design provides strength without product hang up.
  • Easy to install.
  • Smooth operation.
  • Working Pressure of 207 kPa (30 psi).
  • Nylon wear plates offer increased service life and come standard on LM series manholes.
  • Meets MC307 and DOT-407(HM183) requirements.

Ordering Information

LM1051: 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/o Weld Ring.

LM1151: 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/6" Alum. Weld Ring.

LM1061:  20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna N Gasket w/o Weld Ring.

LM1161: 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna-N Gasket, w/6" Aluminium Weld Ring.

LM1171: 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Viton Gasket, w/6" Aluminium Weld Ring.

LM1251: 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/Steel Weld Ring.

LM1261: 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna N Gaskets w/Steel Weld Ring.

Spare Parts

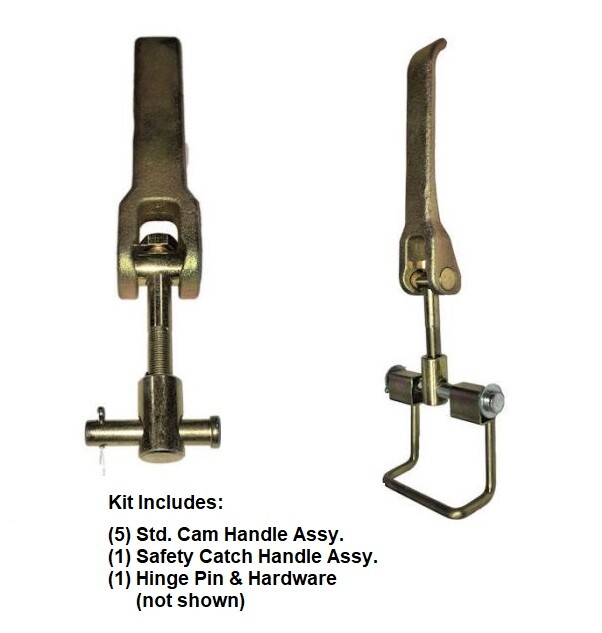

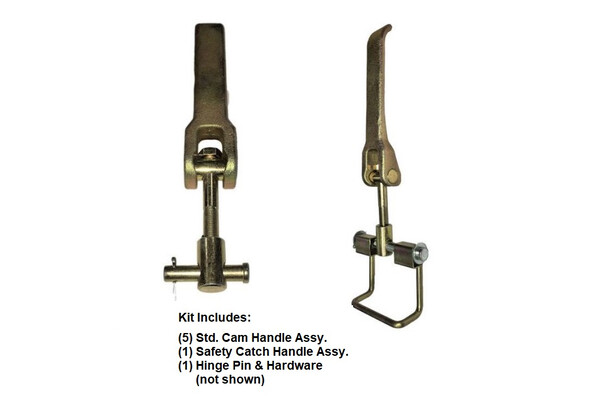

  • 10869  -  Cam Assembly.
  • 10870  -  Cam Assembly w/Safety Catch.

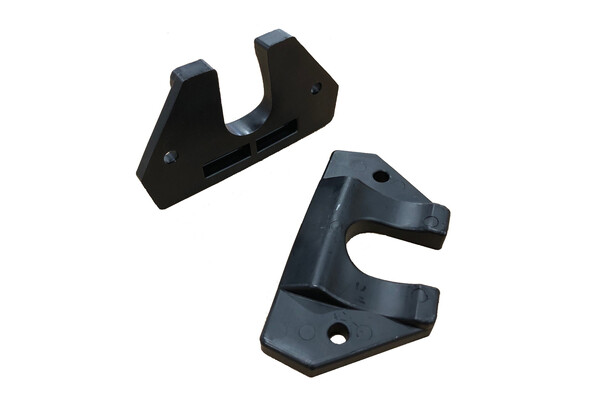

  • 6832    -   Nylon Wear Plate.

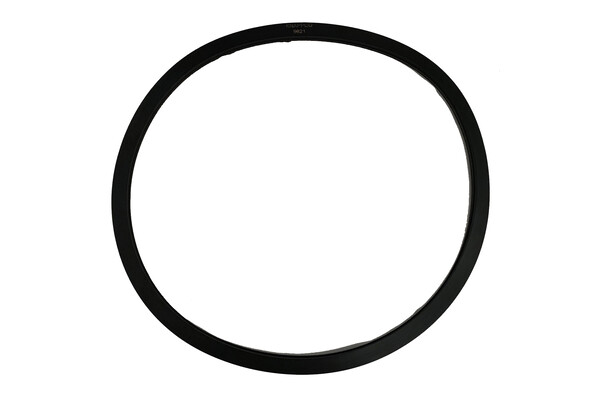

  • 9821    -   Buna Gasket.
  • 9209    -   White Neoprene Gasket.
  • 12233  -   Viton Gasket.
  • 12218  -   Cover with White Neoprene Gasket.
  • 12219  -   Cover with Buna N Gasket.
  • 12437  -   Aluminium Cam Assembly, w/o Safety Catch.
  • 12438  -   Aluminium Cam Assembly, w/Safety Catch.

Old Style Cover Replacement Parts

  • 3519     -   Cam Assembly.

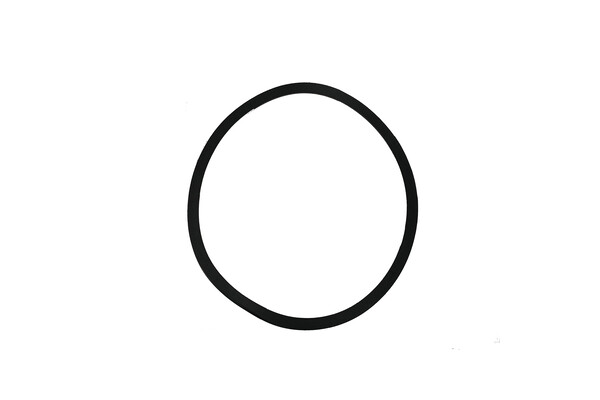

  • 3395     -   Buna N Gasket.
  • 3523     -   White Neoprene Gasket.
Resources
Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link
Image Item Description
Add Item into Enquiry Cart
LM1051 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/o Weld Ring.
LM1151 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/6" Alum. Weld Ring.
LM1061 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna N Gasket w/o Weld Ring.
LM1161 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna-N Gasket, w/6" Aluminium Weld Ring.
LM1171 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Viton Gasket, w/6" Aluminium Weld Ring.
LM1251 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, White Neoprene Gasket w/Steel Weld Ring.
LM1261 20" Aluminium Manhole 6 Adjustable Cams, Nylon Wear Plates, Buna N Gaskets w/Steel Weld Ring.
OLD STYLE COVER REPLACEMENT PARTS
3519 Cam Assembly.

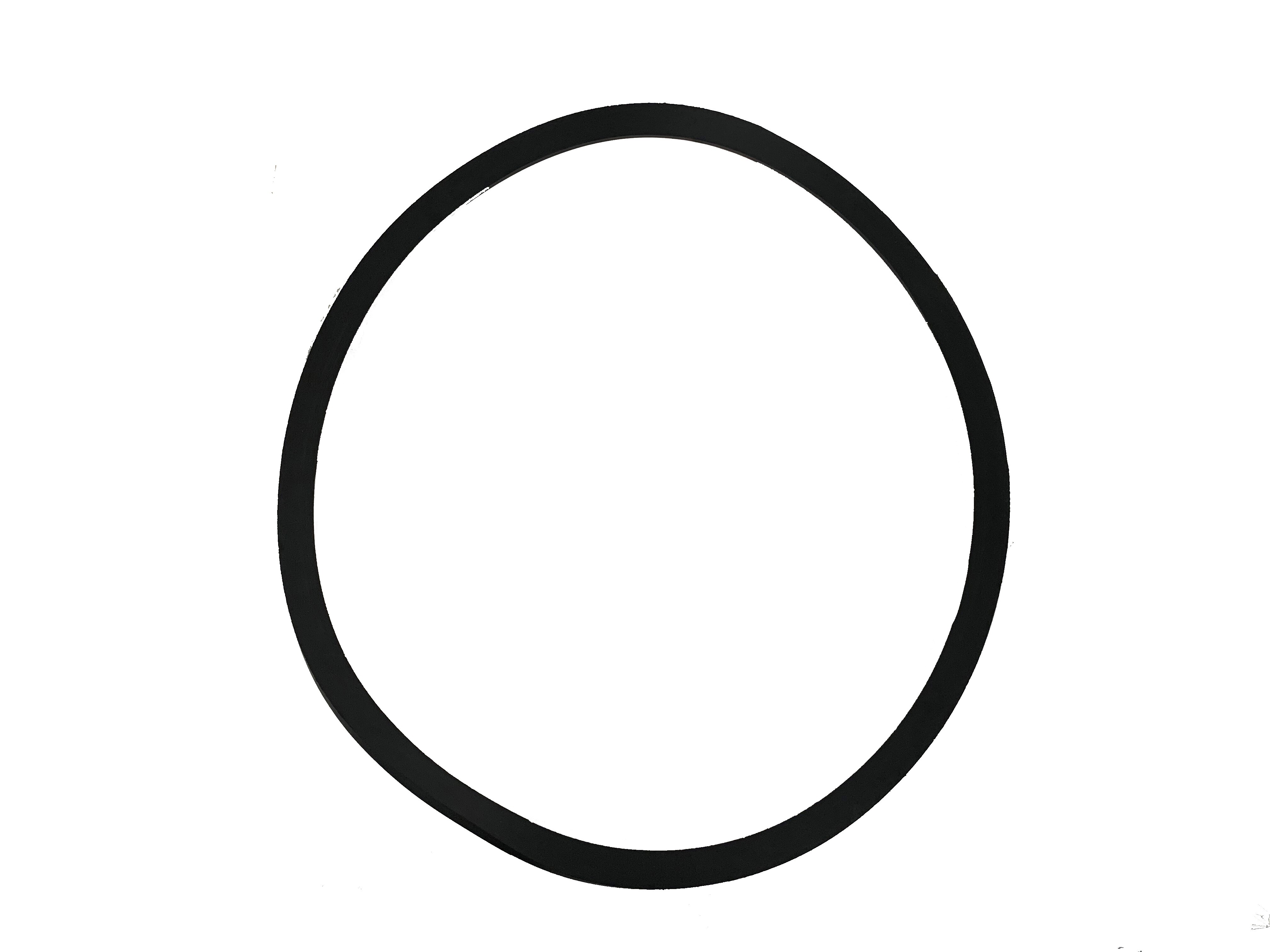

3395 Buna N Gasket.
3523 White Neoprene Gasket.
SPARE PARTS
10869 Cam Assembly.
10870 Cam Assembly w/Safety Catch.

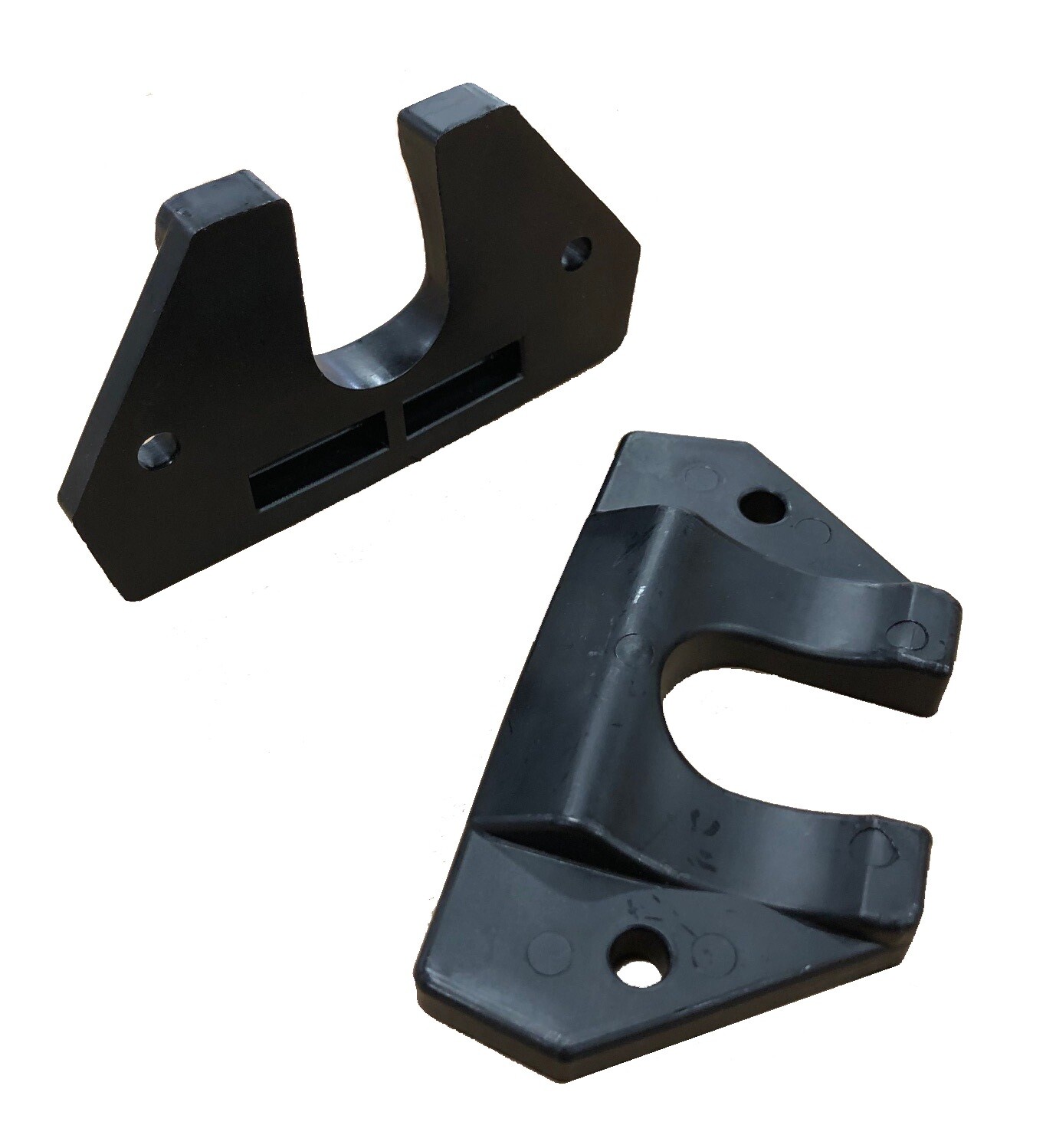

6832 Nylon Wear Plate.

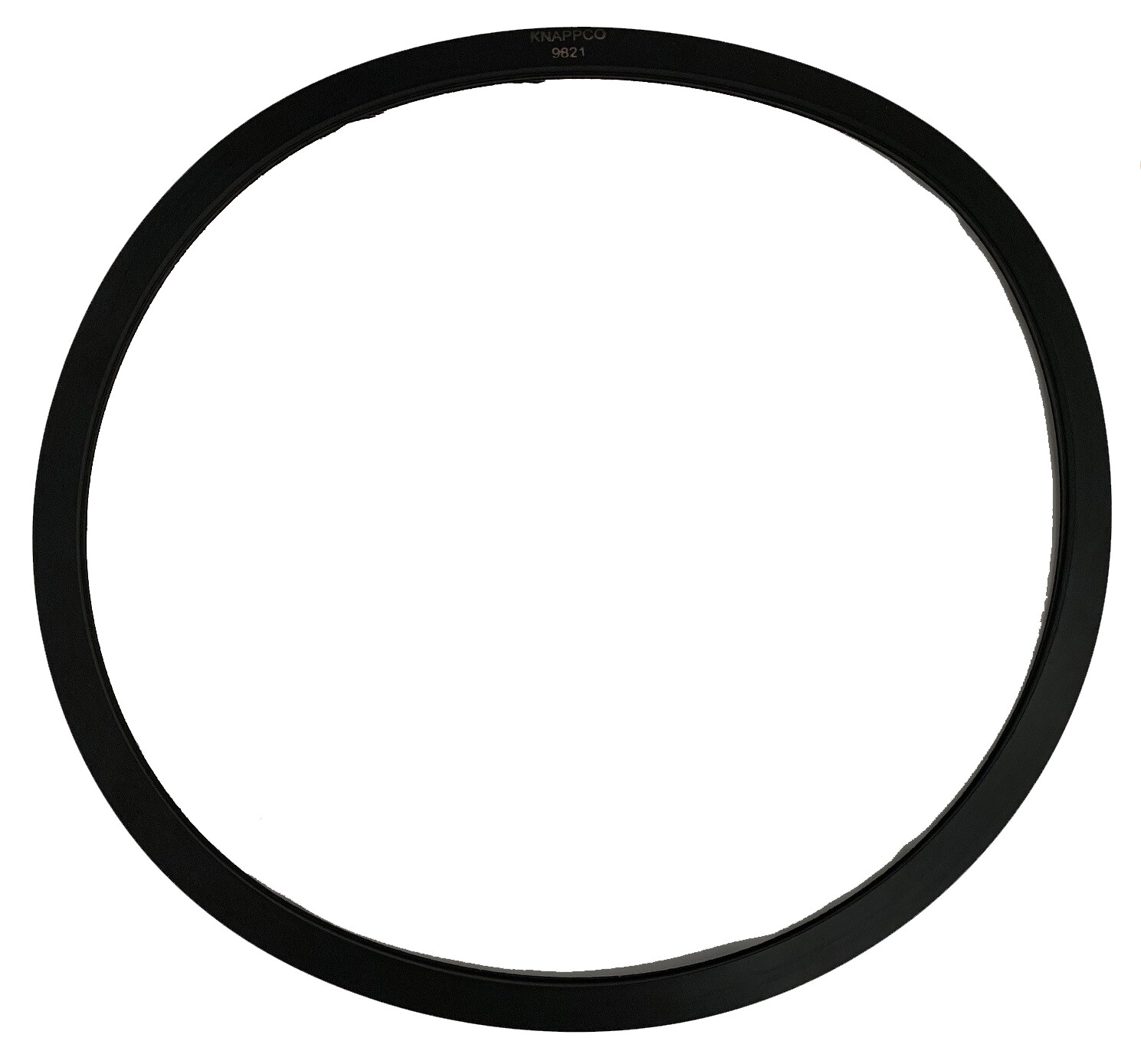

9821 Buna Gasket.

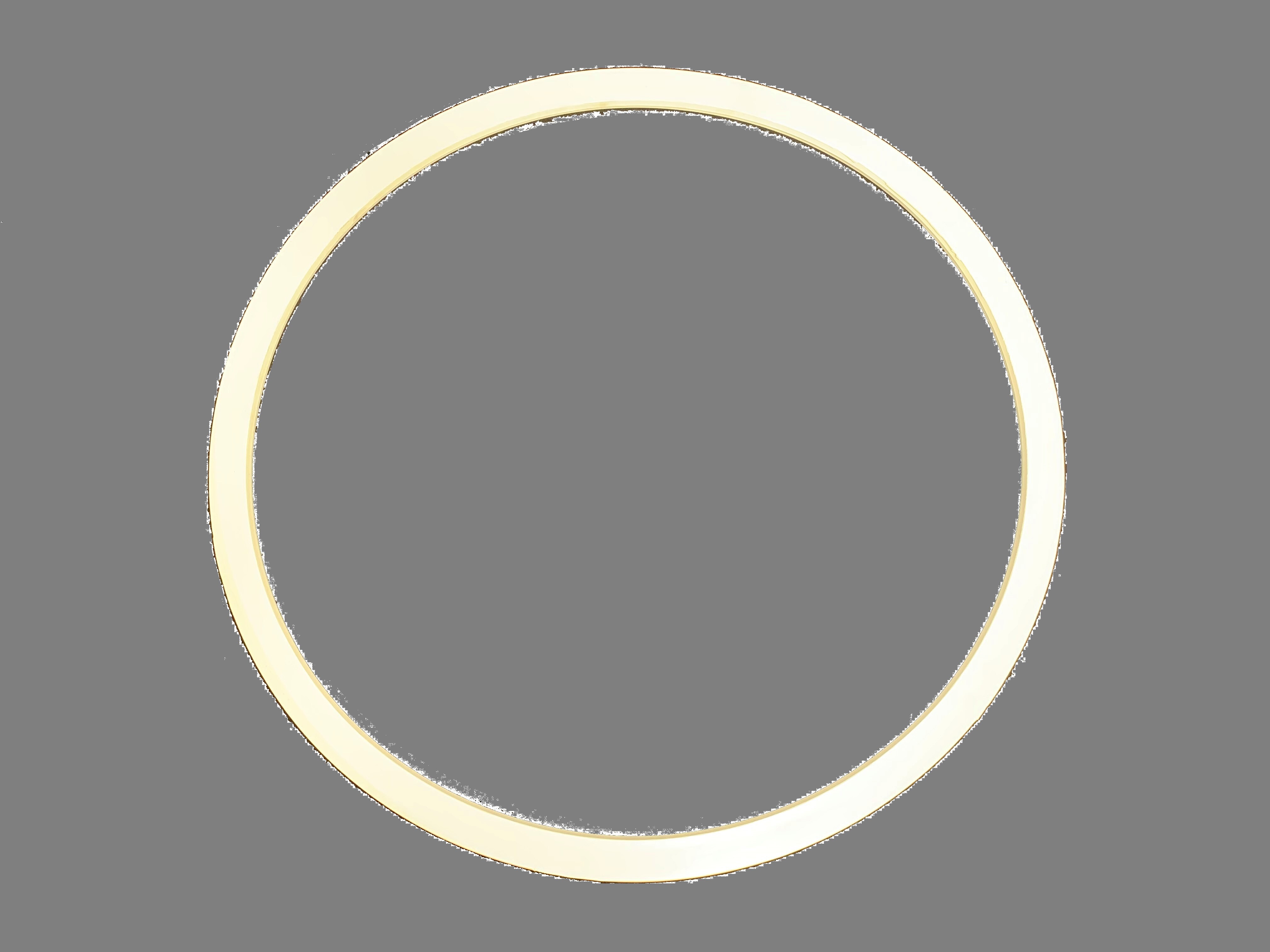

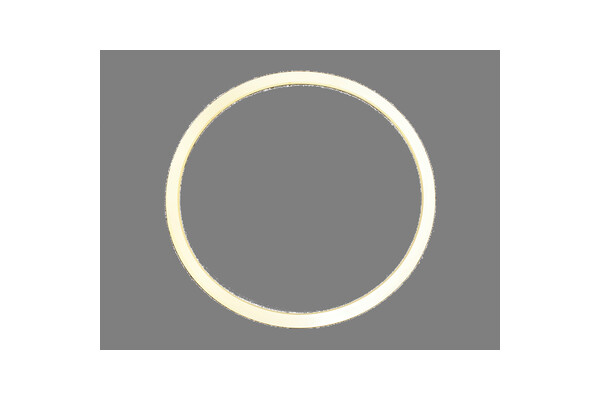

9209 White Neoprene Gasket.
