Aviation Hose Reel Drum Style - HPNP Series



The HP series of hose reels are a generation of reels for high pressure use and available with hand or hydraulic rewind and in different sizes.

Features & Benefits
  • Sealing is by lip seal and all models incorporate a lock assembly.
  • Ball bearings look after rotation, with end thrust being taken care of by heavy duty circlips and thrust washers.
  • All components are easily replaced and all wetted surfaces are nickel plated for longer life.
  • Stainless steel inlet flange, nickel plated gooseneck with 1 1/4" MBSPP.

Technical Information

Sizes
Hose size: 25mm, 32mm or 38mm diameter.
Rewind type: manual or hydraulic.
Drum width: 300mm, 450mm or 600mm.
Anti-rotation lock to prevent hose unraveling.

Pressure
Rated to 2,100kPa.

Servicing
Quarterly grease plumber block bearing
Annually remove and repack bearing on the inlet side of the reel.

Mounting
4 x M10 bolts.

Materials
Stiffened steel cheek plates, extremely study thick wall manifold with added strength from steel inner drum, steel base frame and self aligning bearing.
Polyurethane seals.

Options
Hot dip galvanised version.
1 1/2" N/P FBSP gooseneck.
Rollers and guides.

Ordering Information

Use your Enquiry Cart to make an enquiry, send your collection to a friend via email, or add your item into your wishlist.
Submit Enquiry
Submit a product Enquiry / Quote to Liquip customer service
Save as Wishlist
Save as Wishlist - handy function for account holders
Send to a Friend
Send you selection of products to a friend via a convenient email link

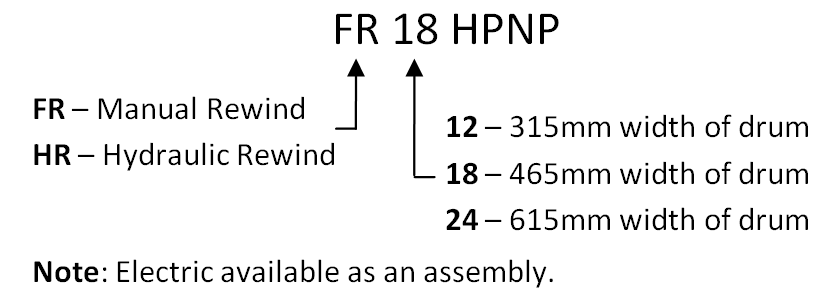

Image Item Description
Add Item into Enquiry Cart
FR12HPNP Manual rewind, 315mm width of drum
FR18HPNP Manual rewind, 465mm width of drum
FR24HPNP Manual rewind, 615mm width of drum
HR12HPNP Hydraulic rewind, 315mm width of drum
HR18HPNP Hydraulic rewind, 465mm width of drum
HR24HPNP Hydraulic rewind, 615mm width of drum
